Belimo Duct Sensor Assistant App

The Belimo Duct Sensor Assistant App is an essential tool designed to provide individual configuration capabilities for a wide range of Belimo duct sensors. This application enhances the functionality and flexibility of your sensors by allowing you to tailor their configurations to specific application requirements.

Key Features

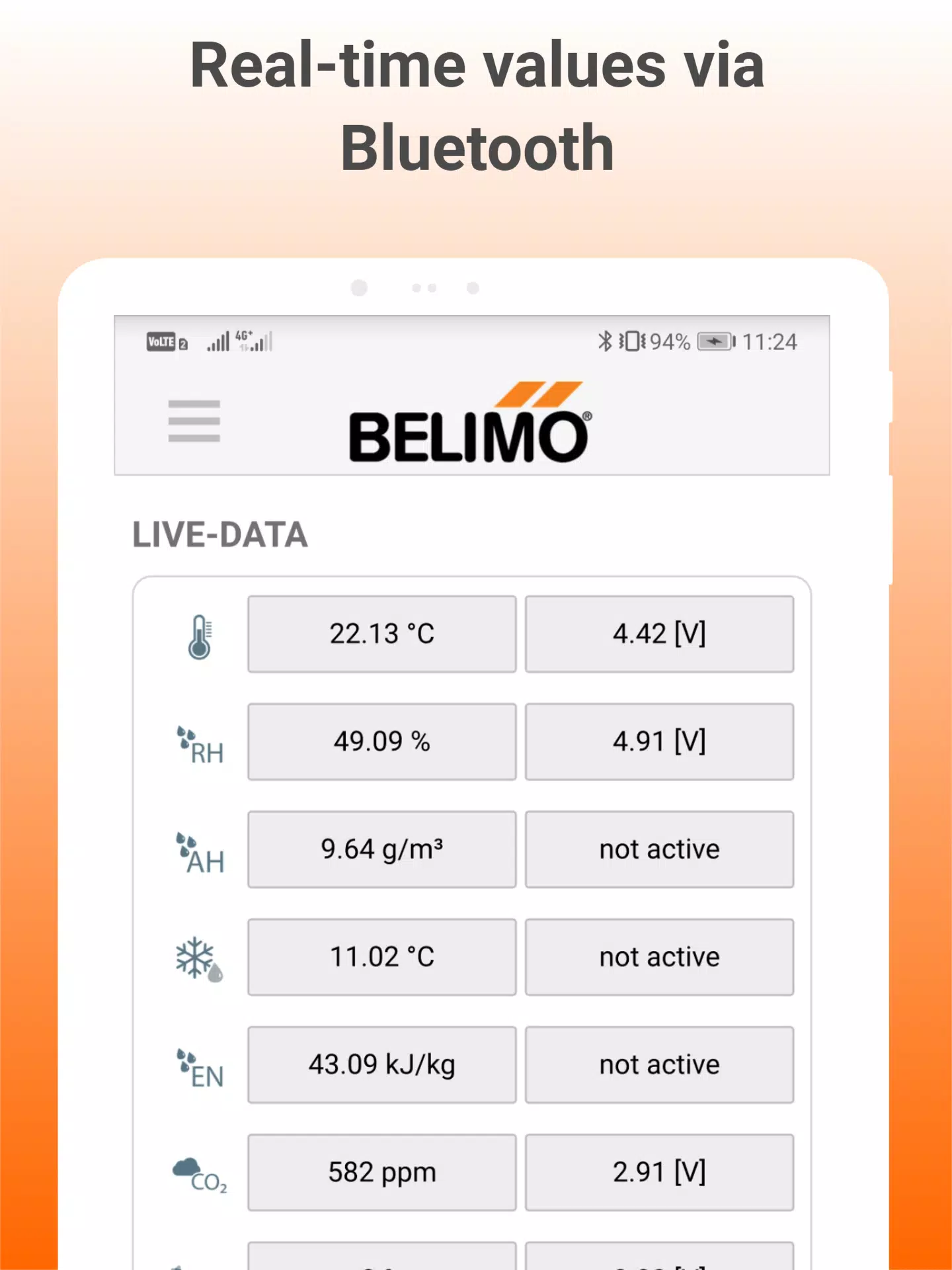

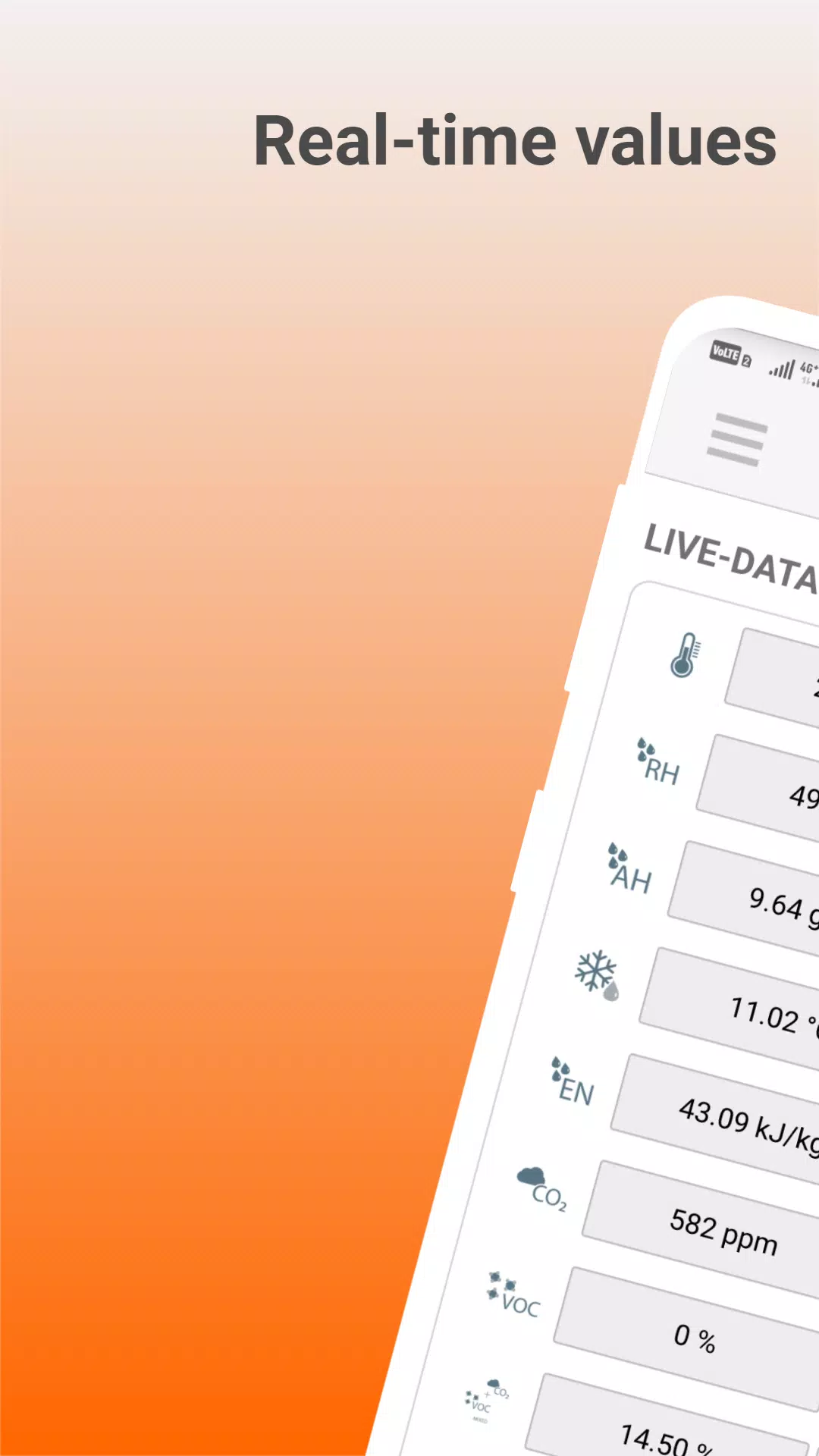

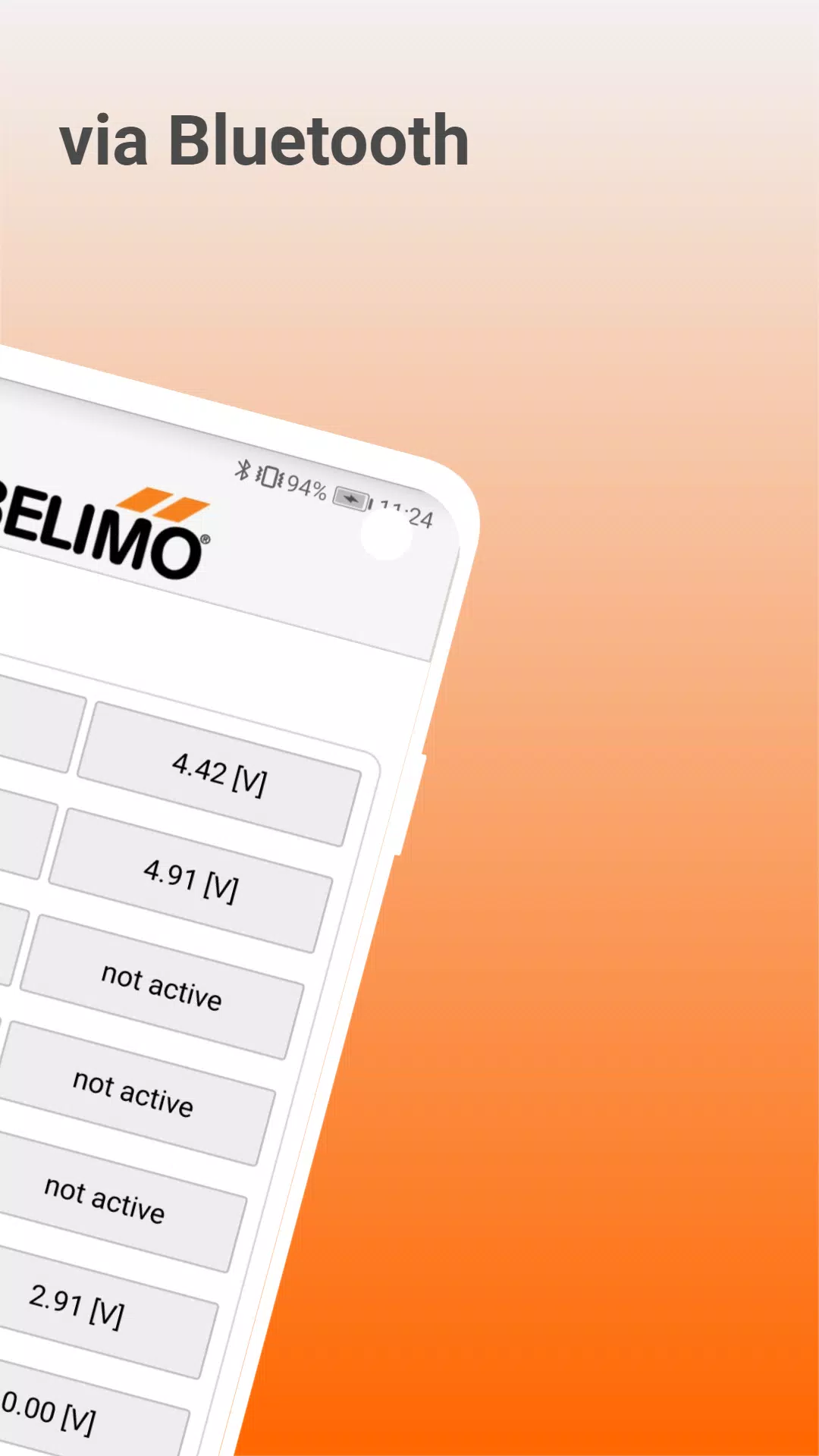

• Communication via Bluetooth BLE: The app facilitates seamless communication with your sensors using Bluetooth Low Energy technology.
• Bluetooth Dongle Required: A dedicated Bluetooth dongle (A-22G-A05) is necessary for connecting the app to the sensors. This dongle communicates with the sensor through a Micro-USB connector.
• Supported Sensors: The app supports multiple sensor models including 22ADP-.., 22DTH-..5.., 22DTH-..6.., 22DC-..3, 22DC-.., 22DTC-.., 22DTM-.., 22DCV-.., 22DCM-.., 22DCK-.., 22UTH-..50X, and 22UTH-..60X.
• Multilingual Support: The app is available in multiple languages, including German (DE), English (EN), French (FR), Italian (IT), Spanish (ES), and Portuguese (PT).

Configuration Options

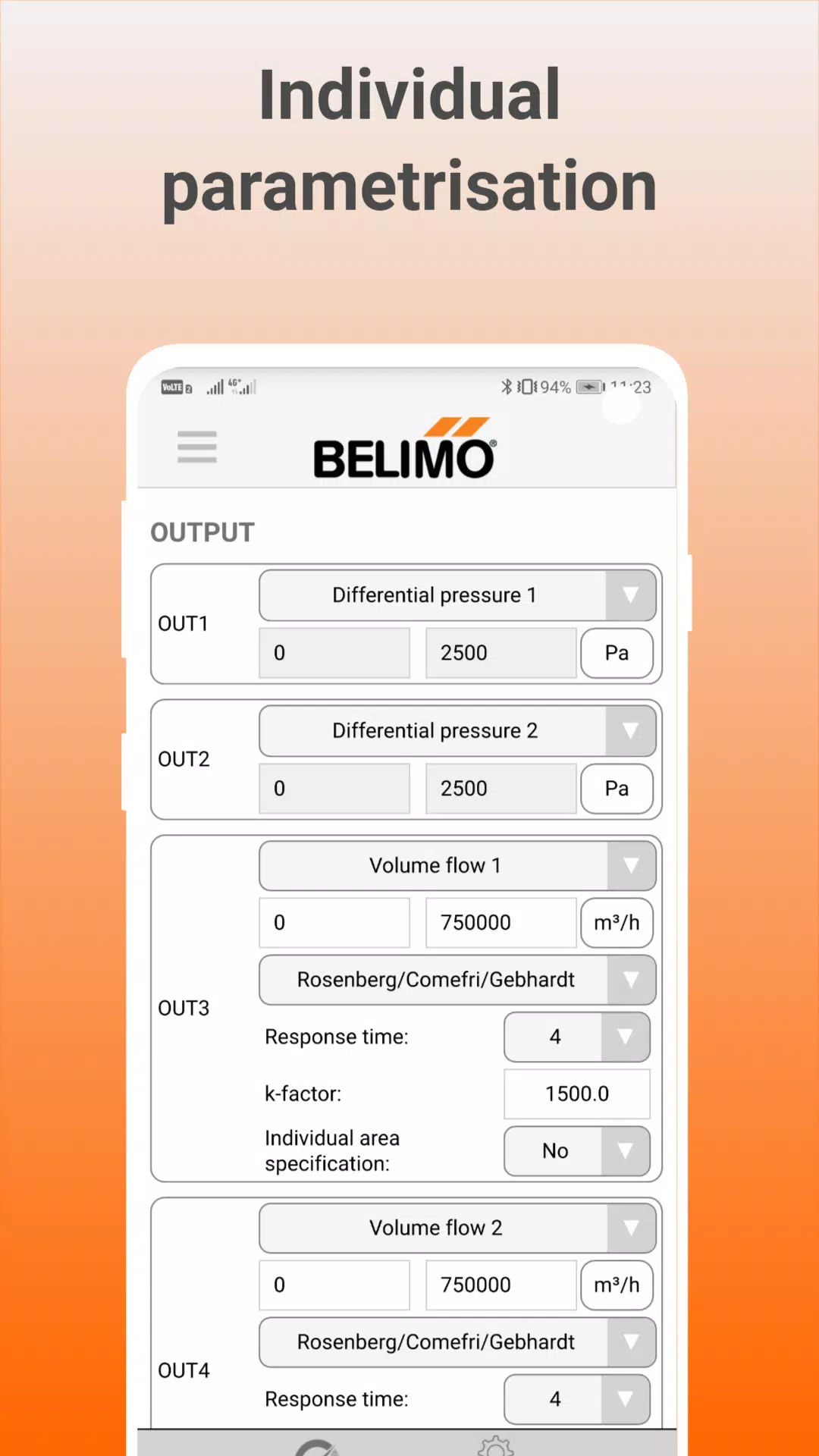

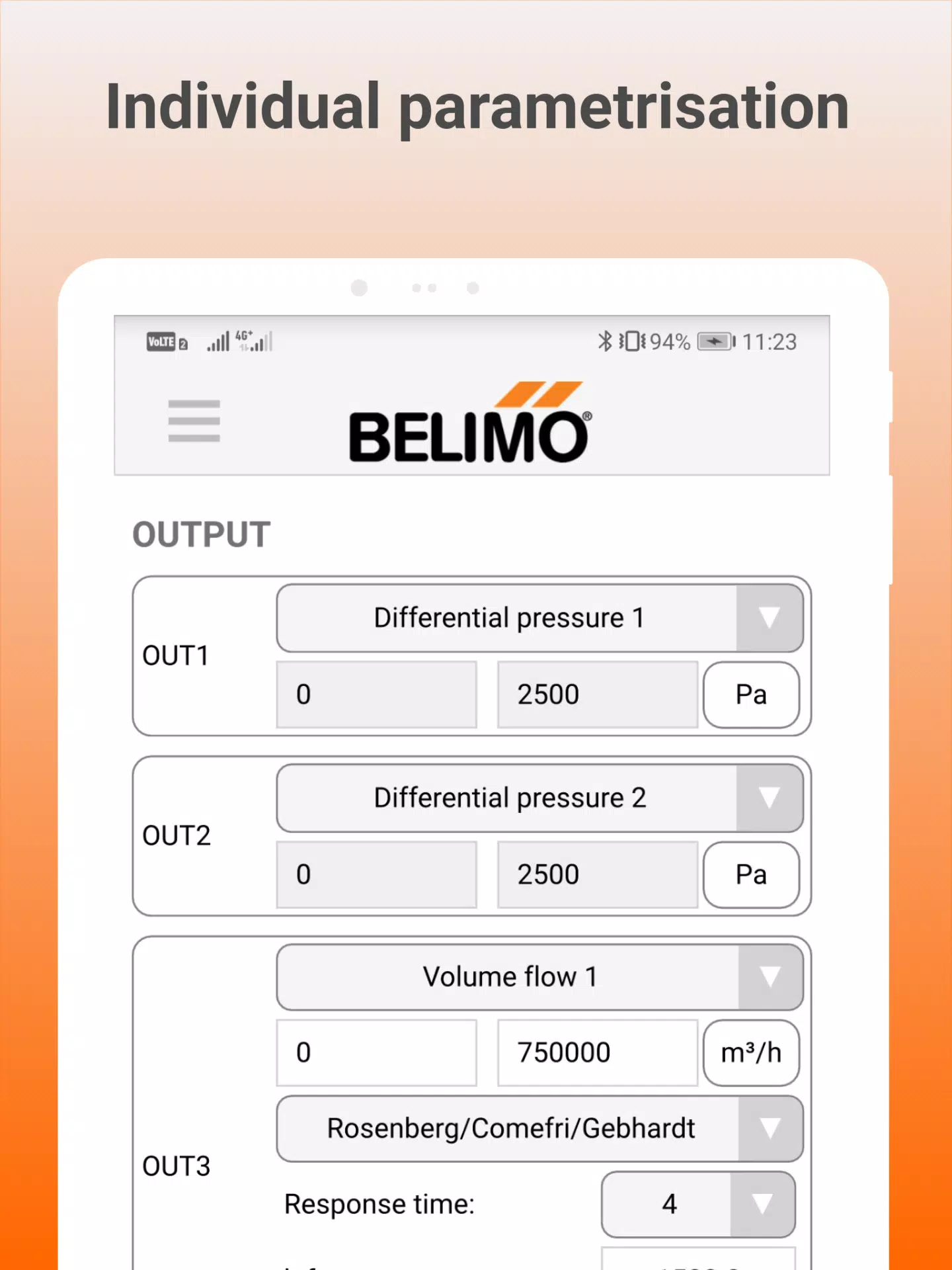

• Customize Output Signals: You can individually configure the output signals according to your needs.
• Adjust Measuring Ranges: Set different measuring ranges to optimize sensor performance.

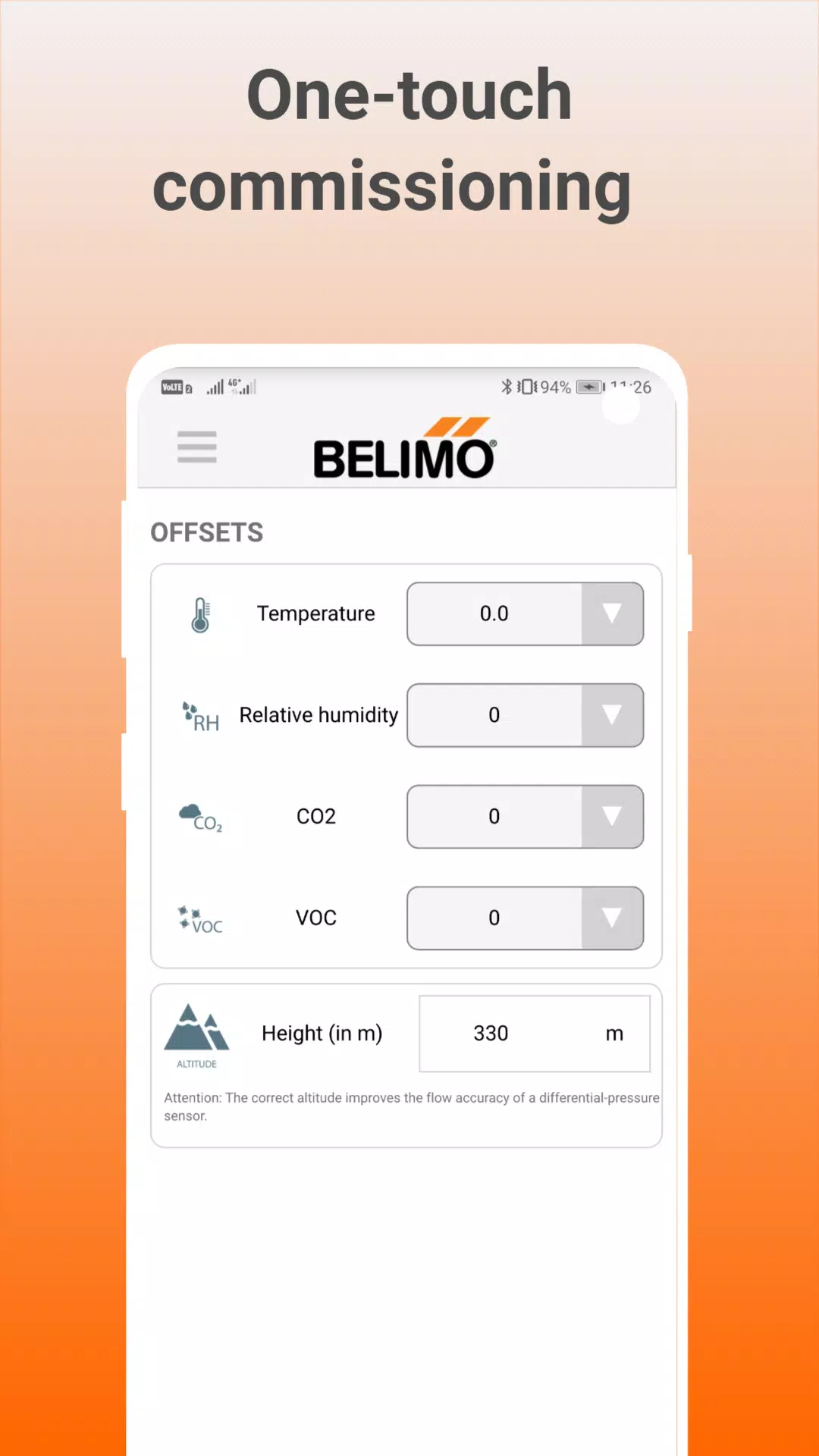

• Offset Value Adjustment: Fine-tune your sensor's accuracy by adjusting offset values.
• Parameterize Live-Zero-Signal: Configure live-zero signals such as 2..10 V and set the system of units.
• Display Indications: Customize display indications to suit your preferences.

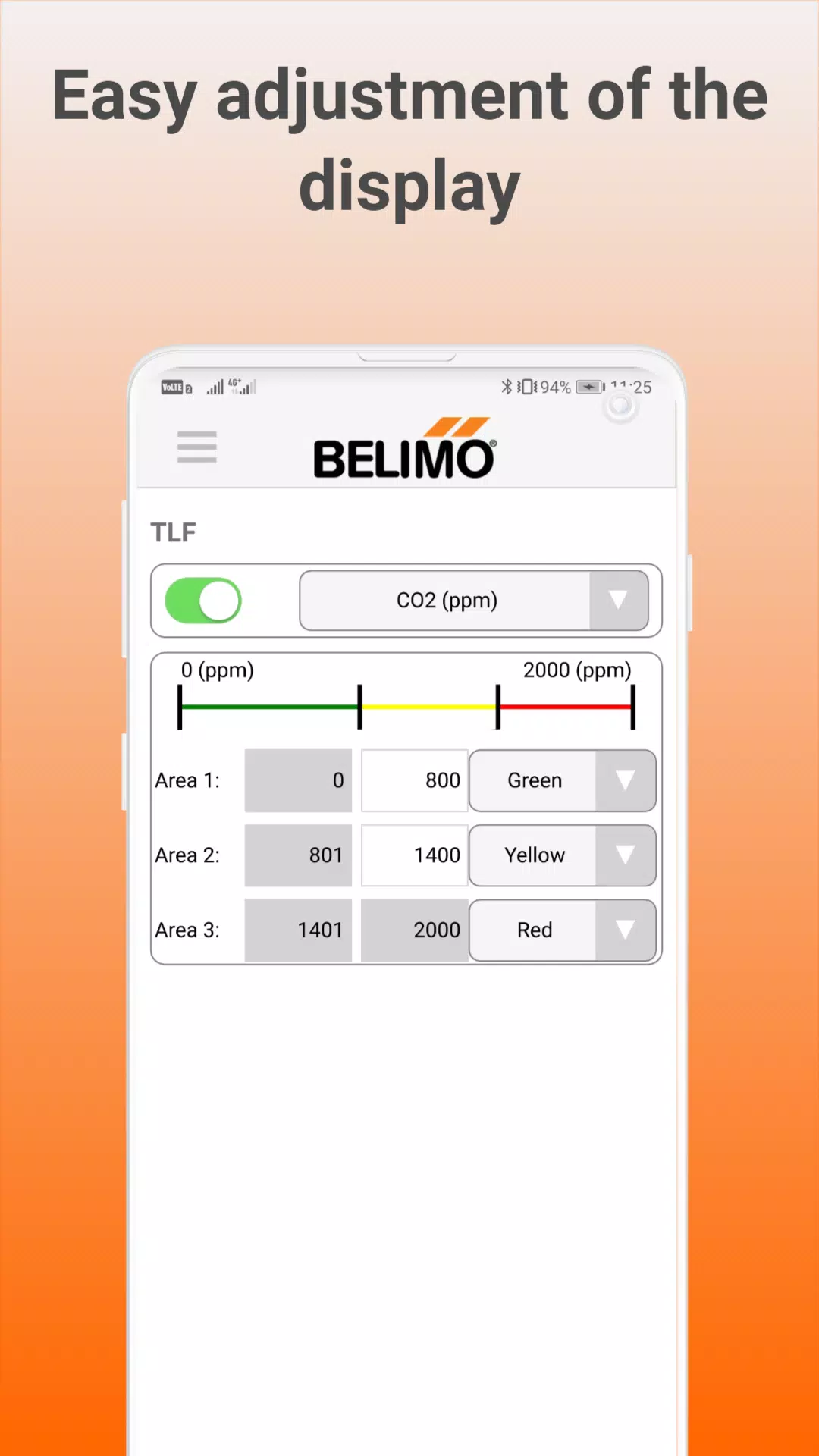

• Traffic-Light Function (TLF): Customize the traffic-light function to enhance visual feedback.
• Extend Physical Modbus Address: Extend the physical Modbus address for more comprehensive control.

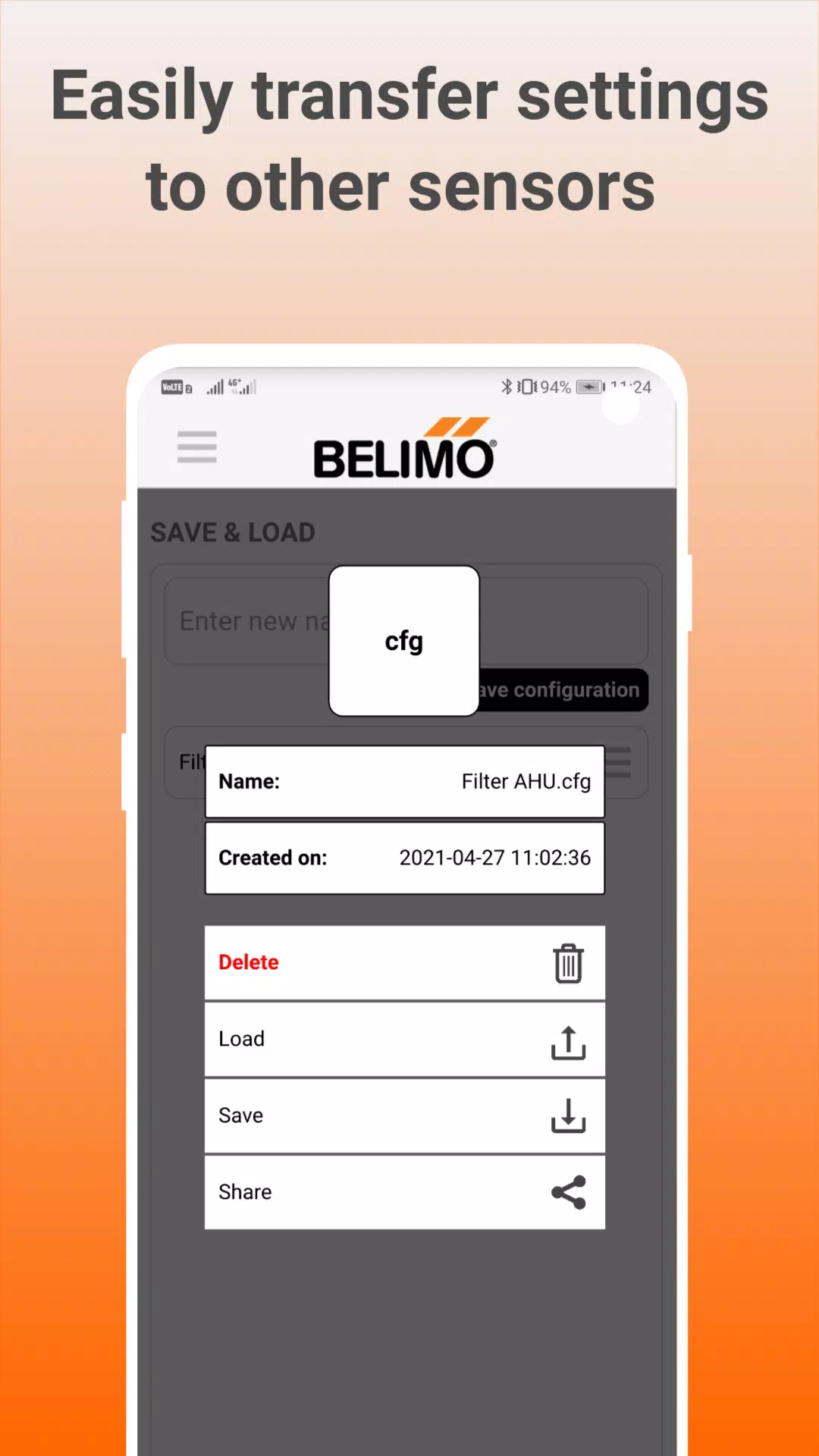

• Save and Load Settings: Save your settings on the mobile device and easily load them onto other sensors.
• Volume Flow Calculation: Represent and output the differential pressure as a volume flow value for better analysis.

By leveraging these features, the Belimo Duct Sensor Assistant App ensures that your sensors are optimally configured to meet your unique requirements, enhancing efficiency and performance in various applications.
