Resistor Color Code Calculator

Resistor Color Code Calculator

Instantly calculate resistor color codes and values for your electronics projects with ease! Our intuitive application is tailored for electronics hobbyists, students, and professionals who need quick and accurate resistor value calculations.

Supported Resistor Types and Calculations:

Our tool supports a wide range of resistor types and calculations, including:

• Three Band Resistor: Ideal for simple resistors with two digits and a multiplier.
• Four Band Resistor: Includes two digits, a multiplier, and a tolerance band.
• Five Band Resistor: Offers three digits, a multiplier, and a tolerance band.
• Six Band Resistor: Adds a temperature coefficient (PPM) to the five-band configuration.
• SMD Resistor: Supports 3-digit EIA, 4-digit EIA, and EIA-96 coding standards.
• Series Resistor Calculator: Calculate the total resistance when resistors are connected in series.
• Parallel Resistor Calculator: Determine the equivalent resistance of multiple resistors in parallel.

Key Features:

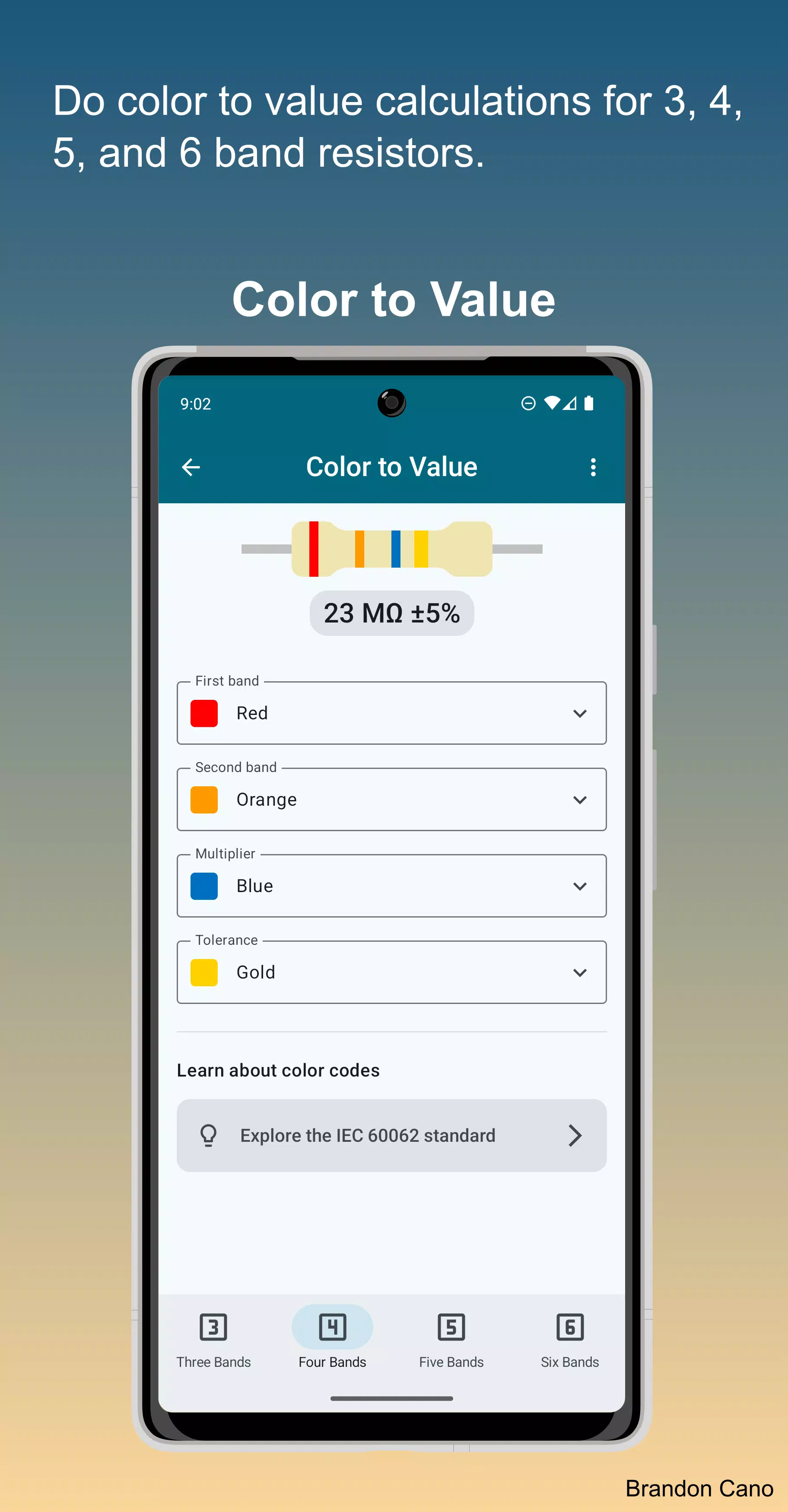

• Color-to-Value Calculator: Select resistor color bands to quickly find the resistance value. Ideal for resistor color-code lookups.

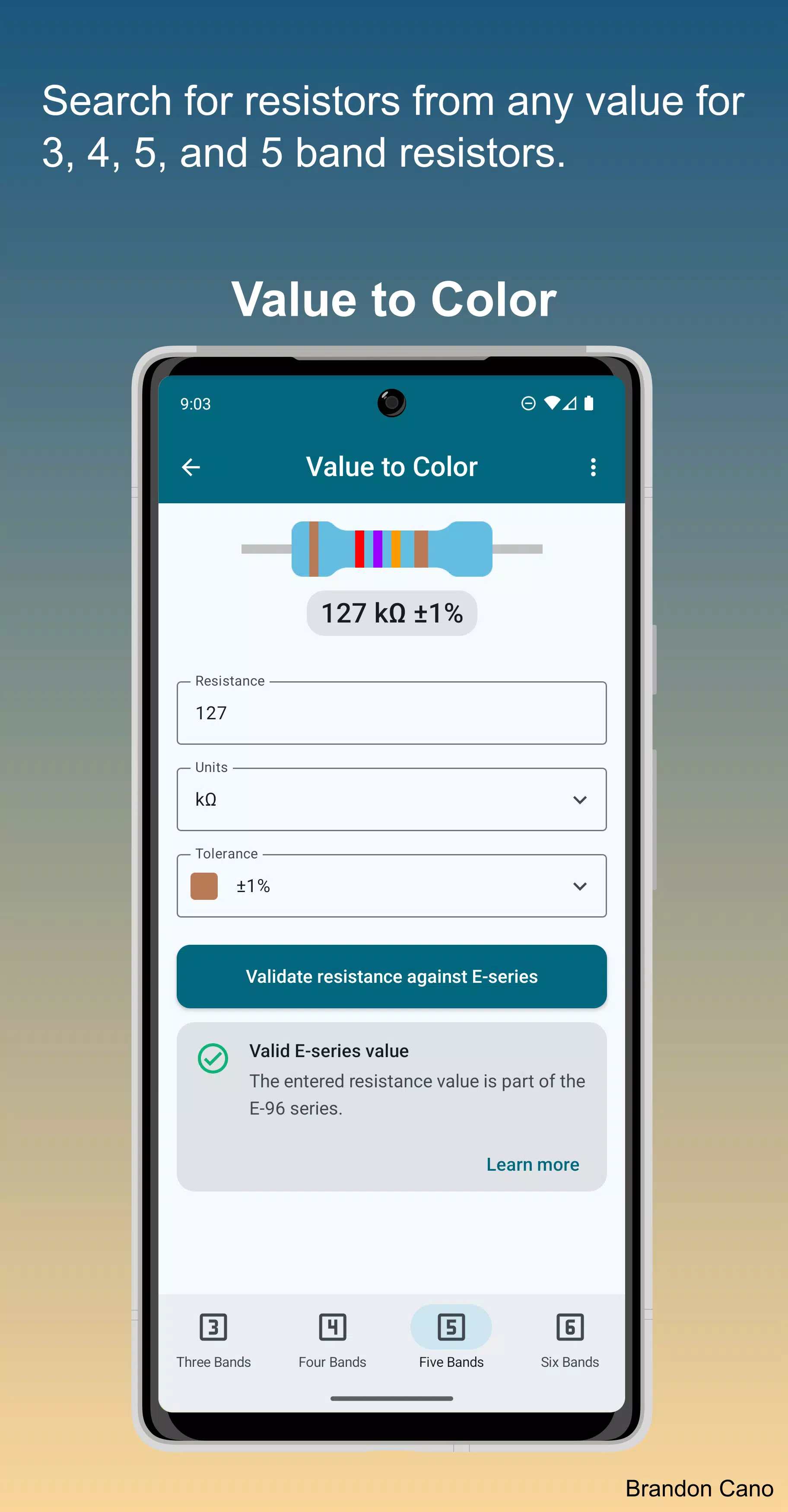

• Value-to-Color Calculator: Input a resistance value, tolerance, and temperature coefficient (if applicable) to see the corresponding color code bands in real-time.

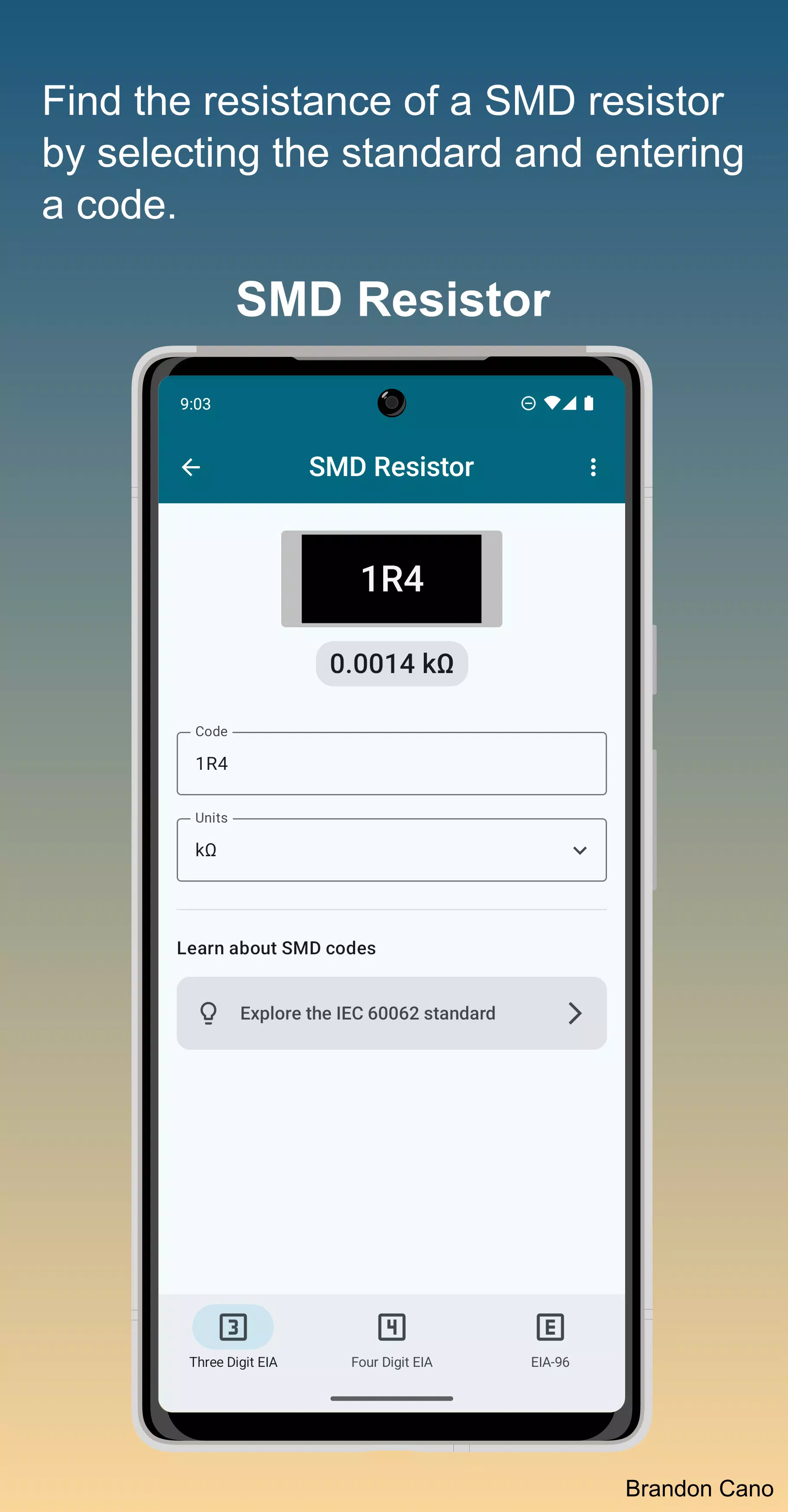

• SMD Resistor Code Calculator: Convert SMD (Surface-Mount Device) codes to standard Ohm values. Supports 3-digit EIA, 4-digit EIA, and EIA-96 coding standards.
• Series Resistance Calculator: Quickly determine the total resistance for resistors connected in series.

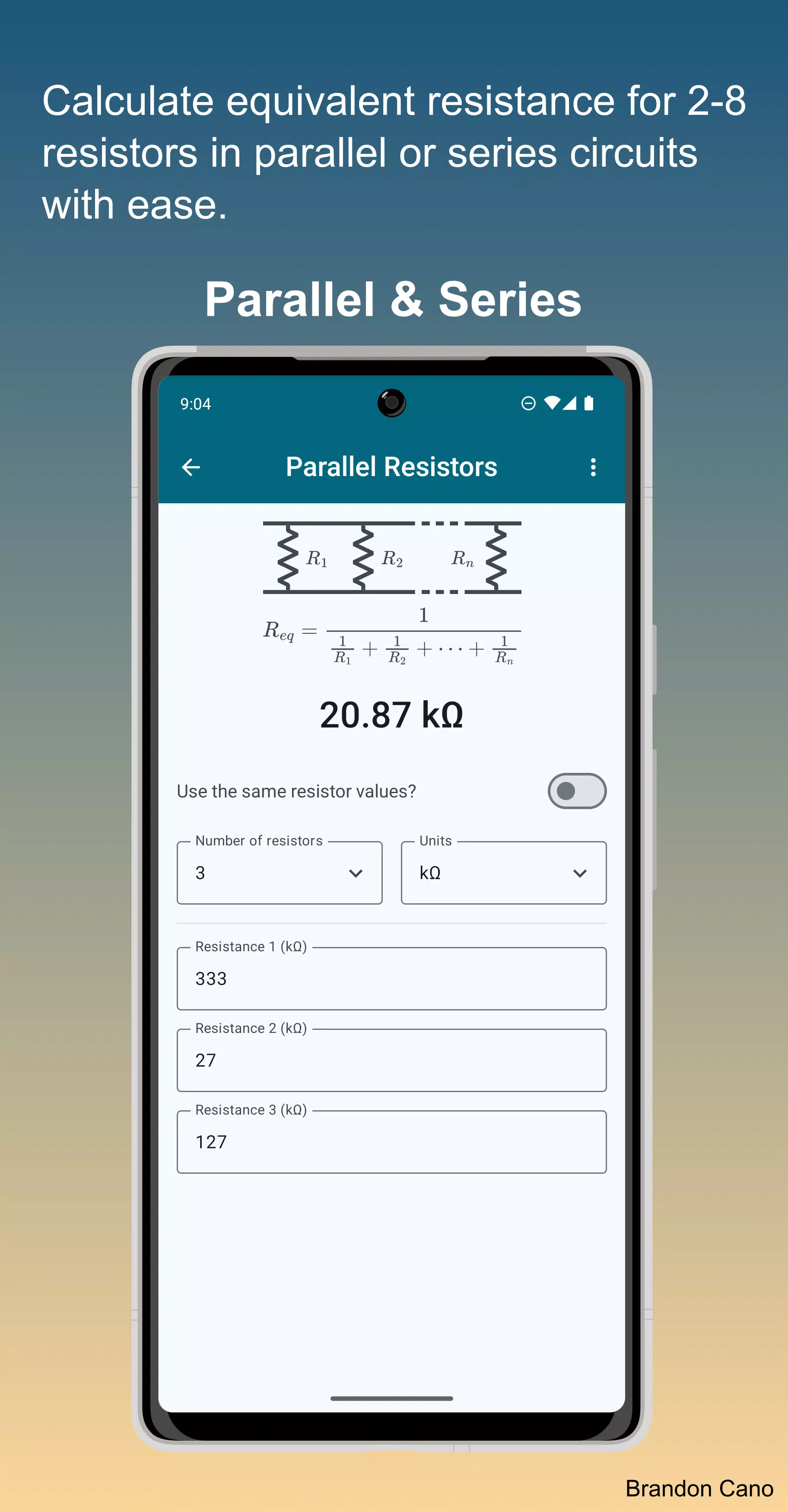

• Parallel Resistance Calculator: Accurately calculate the equivalent resistance of multiple resistors in parallel.

Additional Functionalities:

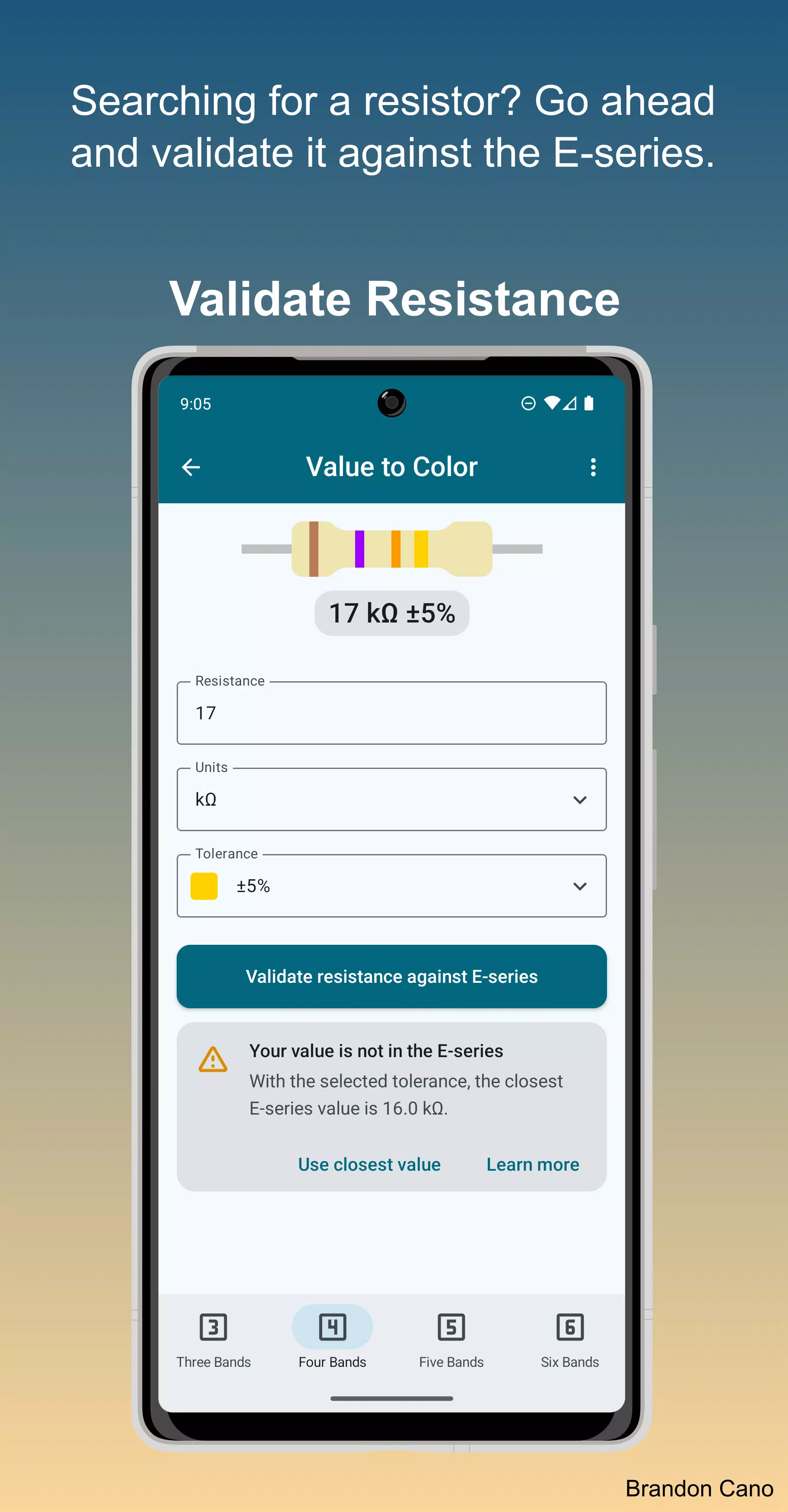

• Preferred Values Validation: Ensure inputted values align with standard resistor values, helping you avoid errors and select commonly used resistances.

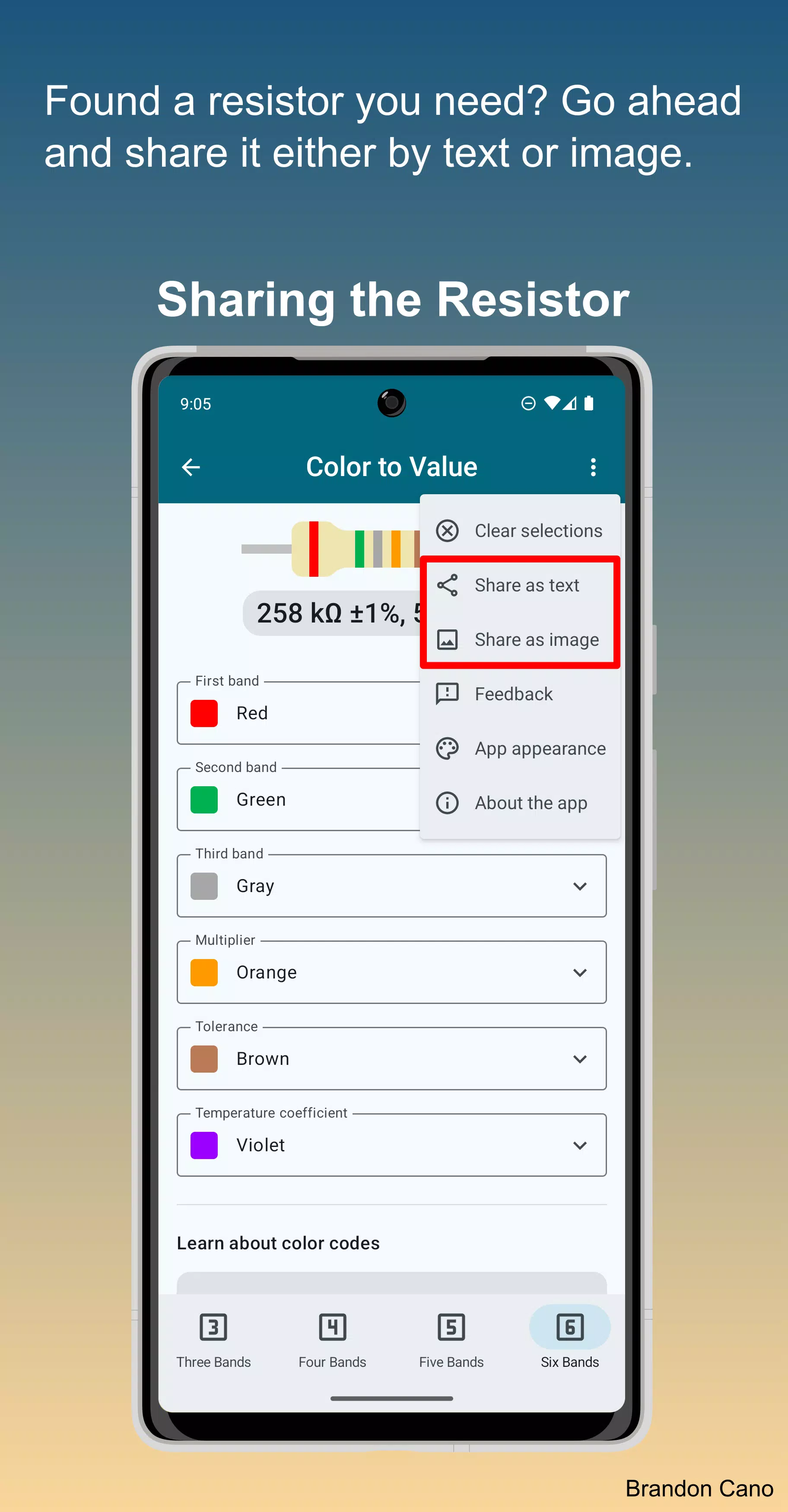

• Share Your Resistor Values: Share calculated resistor details via text or image for easy project collaboration.
• Built-in Information Pages: Access in-app guides on resistor color coding and SMD resistor codes. Perfect for quick reference or learning.

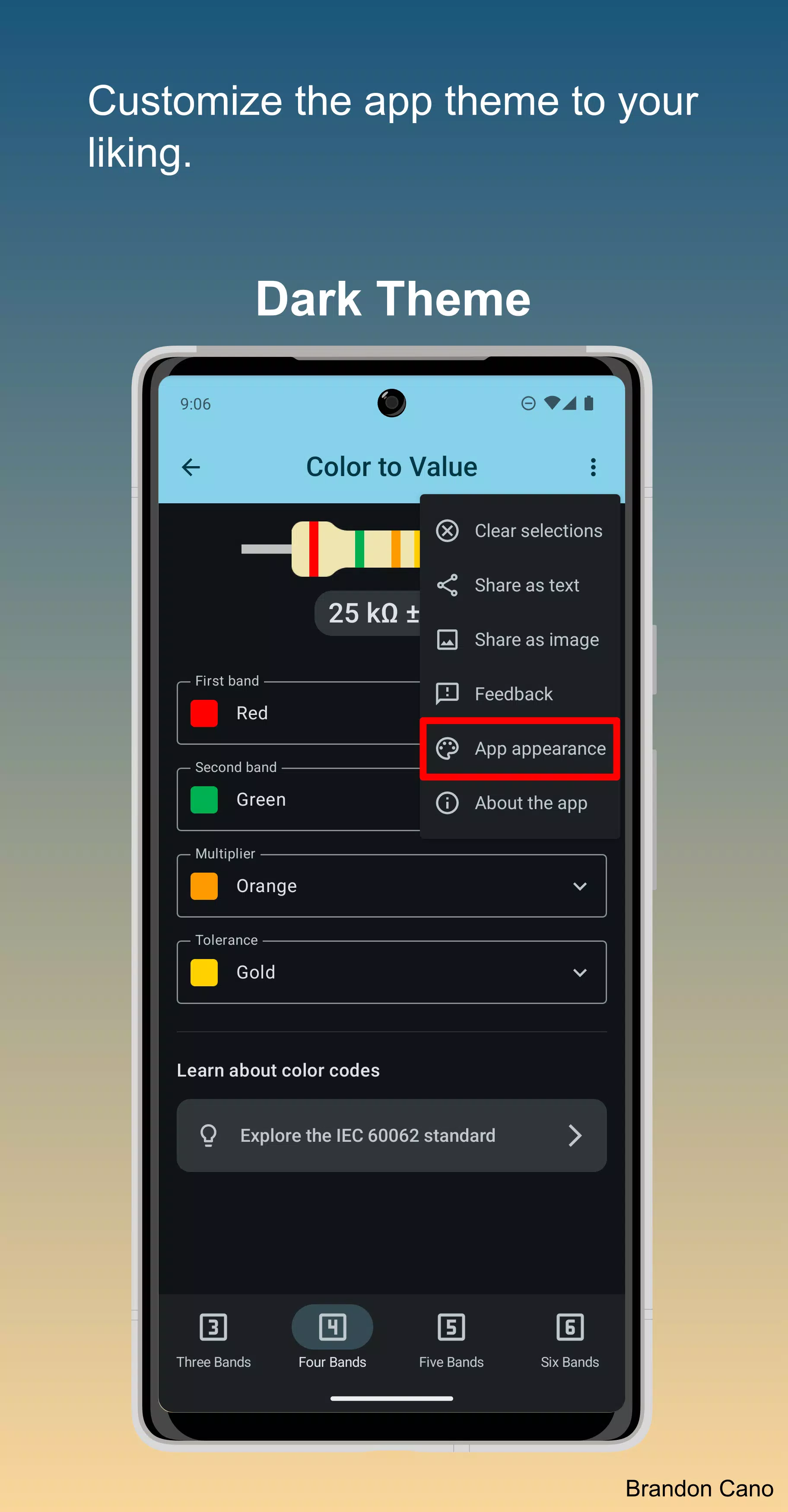

• Customize App Appearance: Switch between light and dark themes to personalize your experience.

Why Choose Our App?

• Accurate & Reliable: Based on the IEC 60062 and IEC 60063 standards, ensuring industry-standard results.
• Fully Responsive: Optimized for all mobile devices, providing a seamless experience on any screen.

Your Feedback Matters:

Have suggestions or encountered a bug? Reach out anytime at:
brandoncano.development@gmail.com
