Tolerance Field Schemes: A Comprehensive Tool for Smooth Cylindrical Connections

The application "Tolerance field schemes" is a specialized tool designed to calculate the critical elements of smooth cylindrical connections. This software focuses on sizes ranging from 1 mm to 500 mm, making it highly versatile for a variety of engineering applications. Whether you're working on small-scale components or larger assemblies, this tool ensures precision and accuracy in determining the necessary parameters for your designs.

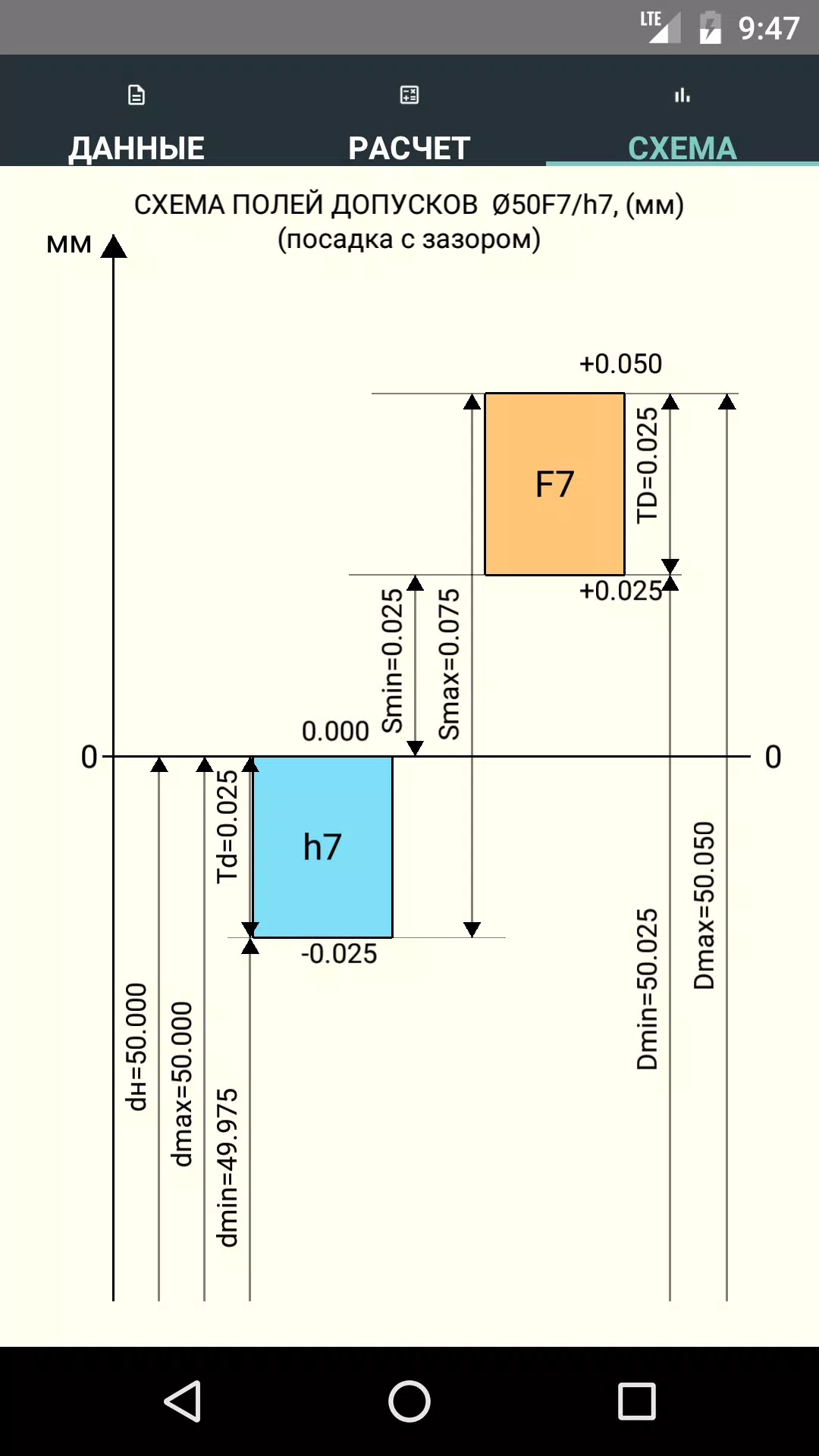

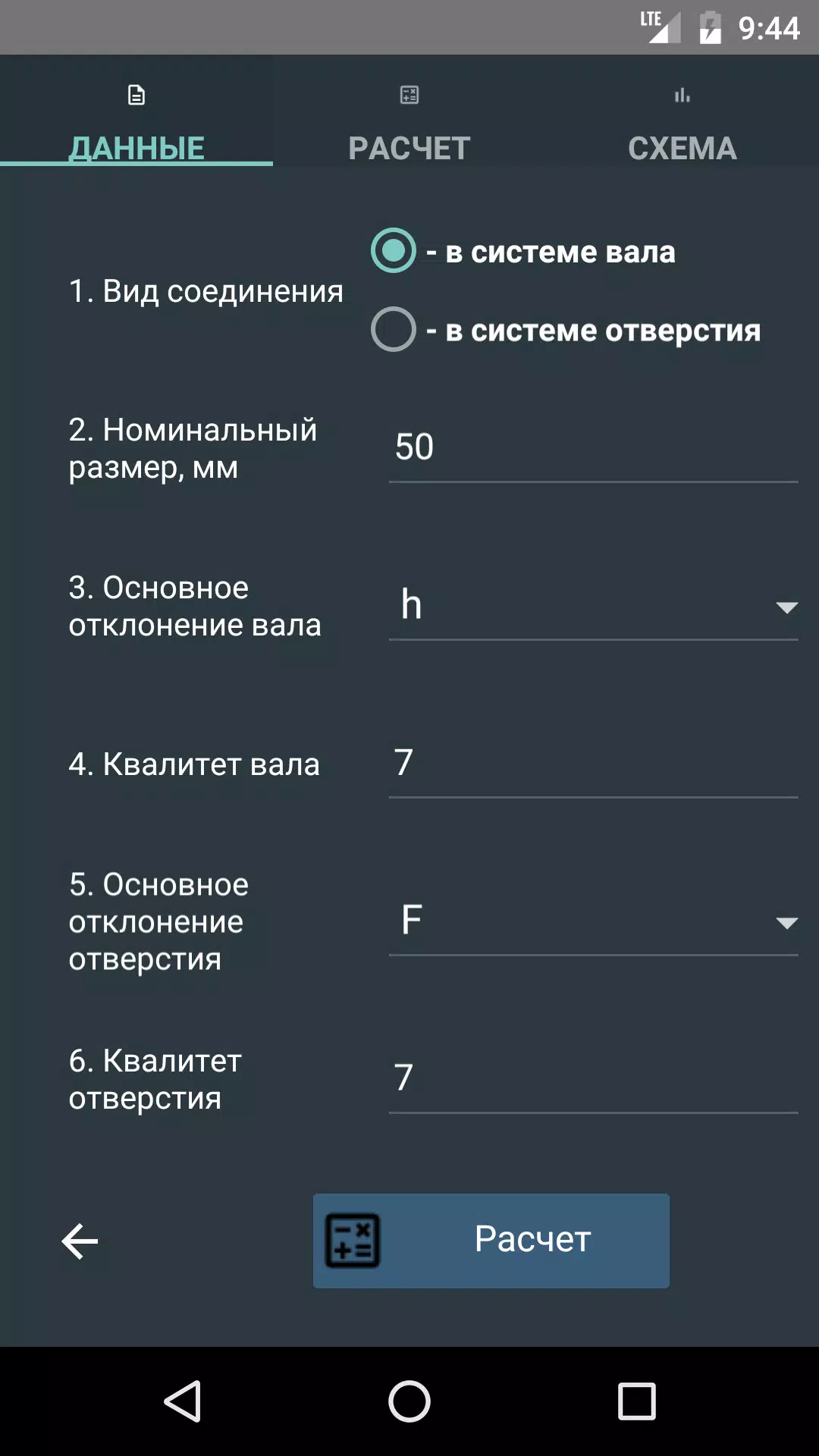

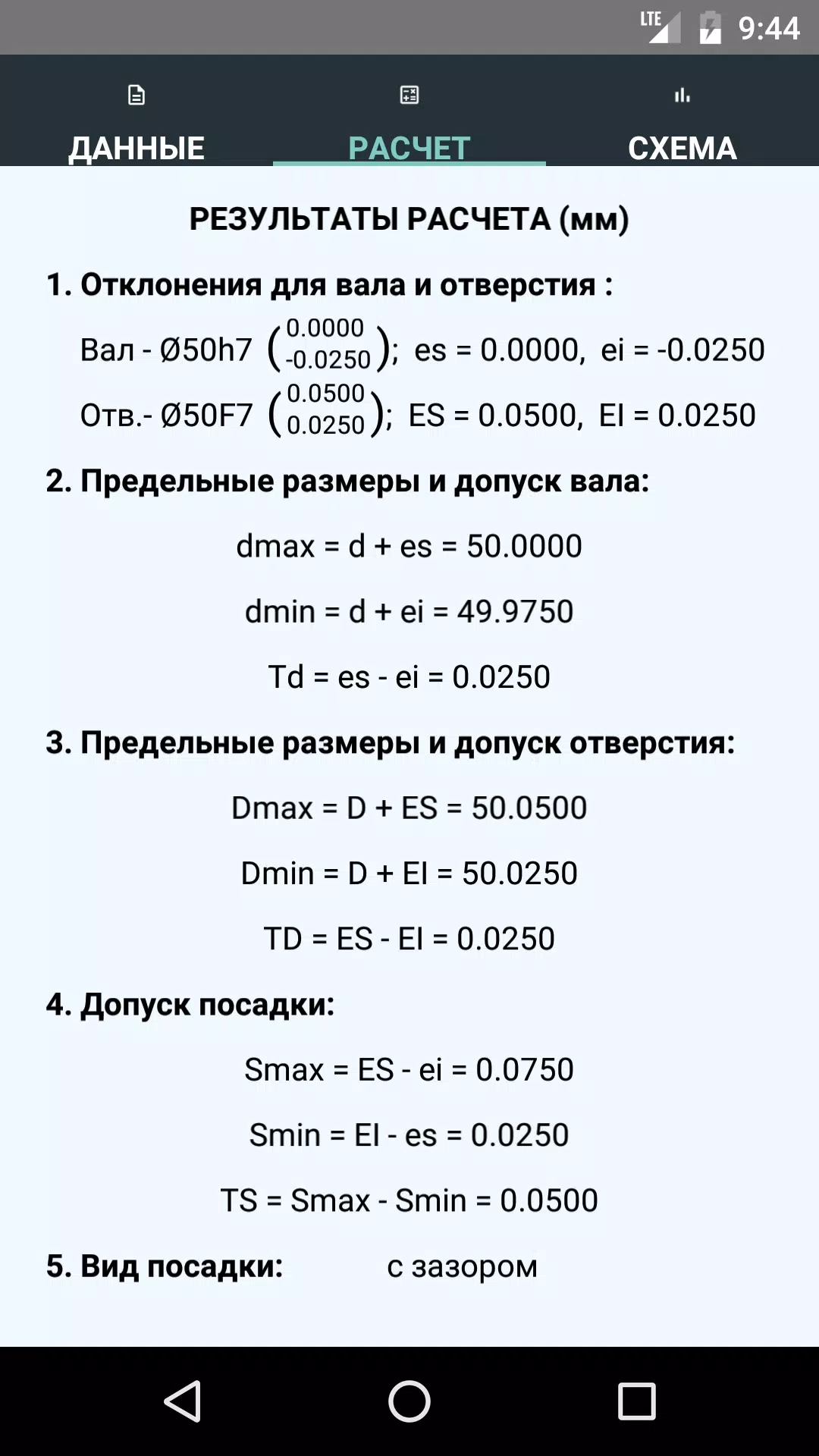

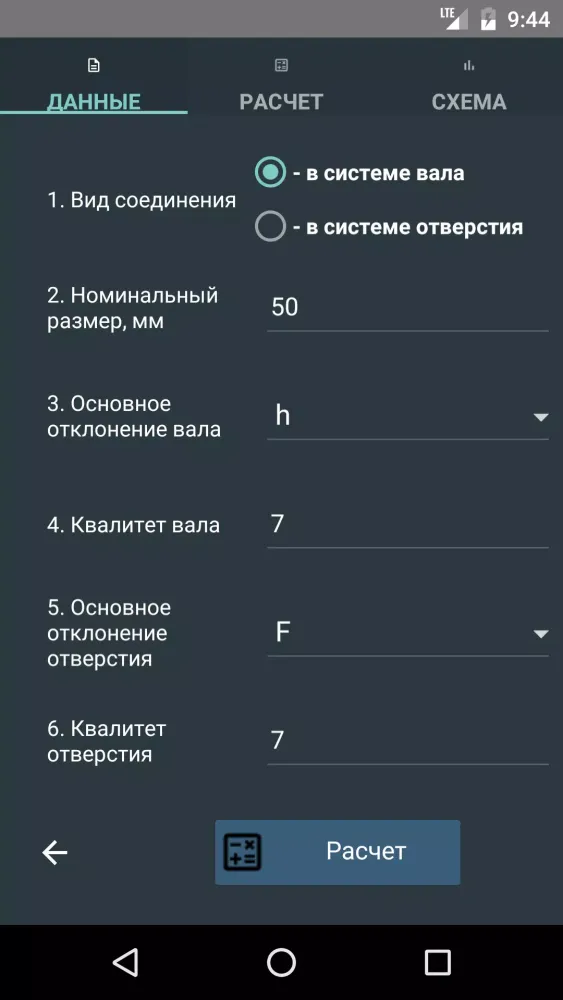

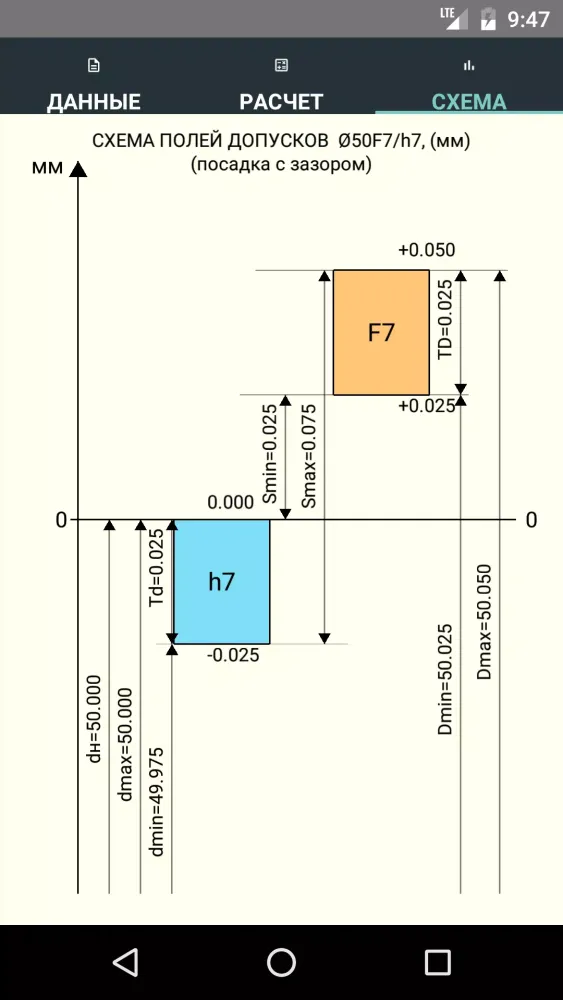

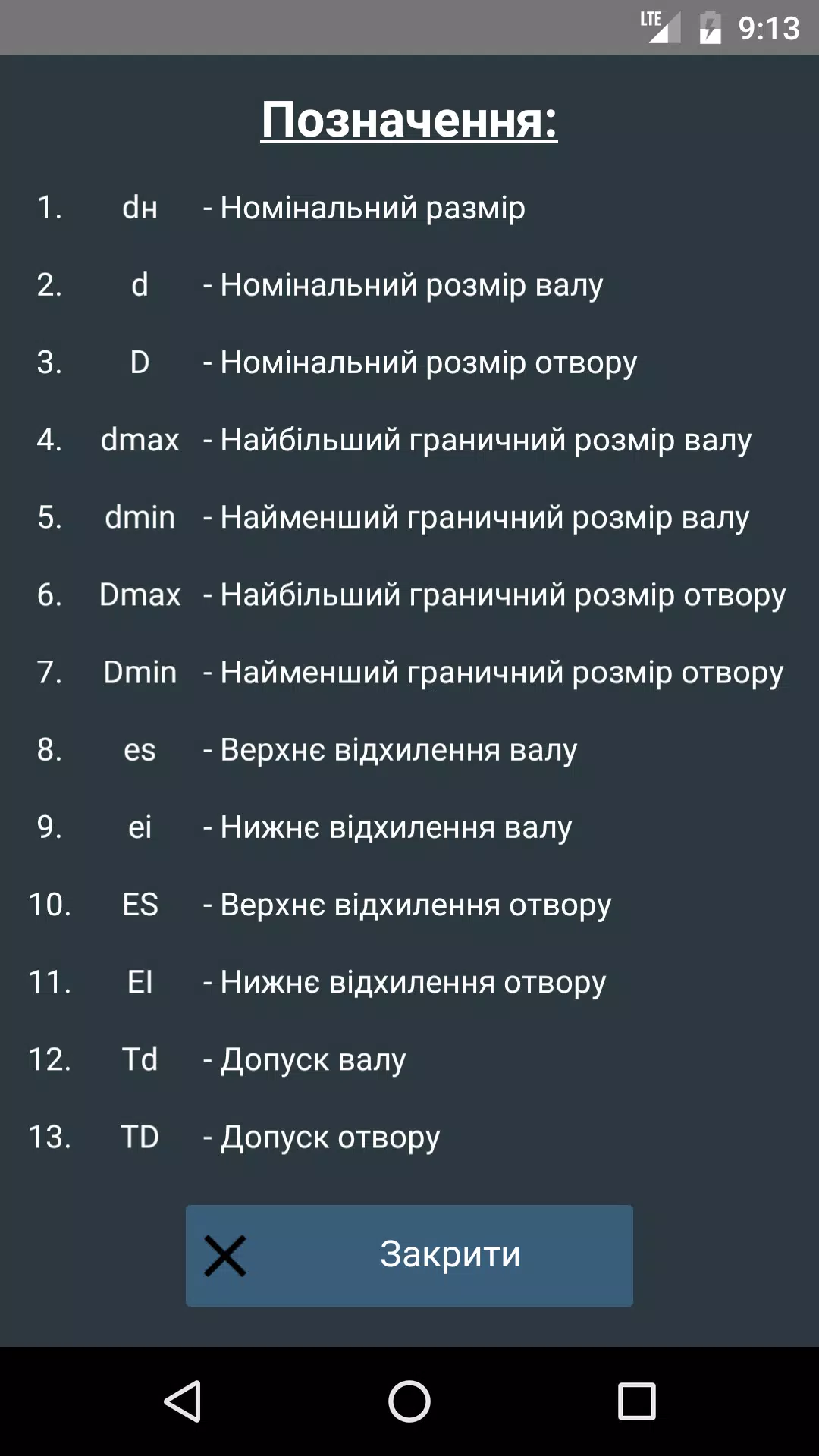

At the heart of the application lies its ability to compute essential details based on user inputs. By providing the nominal size, main deviations, quality levels of both the shaft and the hole, the application calculates upper and lower deviations, limit dimensions, tolerances, and the values of limiting clearances and tightness of the connection. These calculations are crucial for ensuring that components fit together seamlessly while maintaining structural integrity. The application also generates a visual representation of the tolerance fields, which helps engineers understand how different parts interact within their respective tolerances.

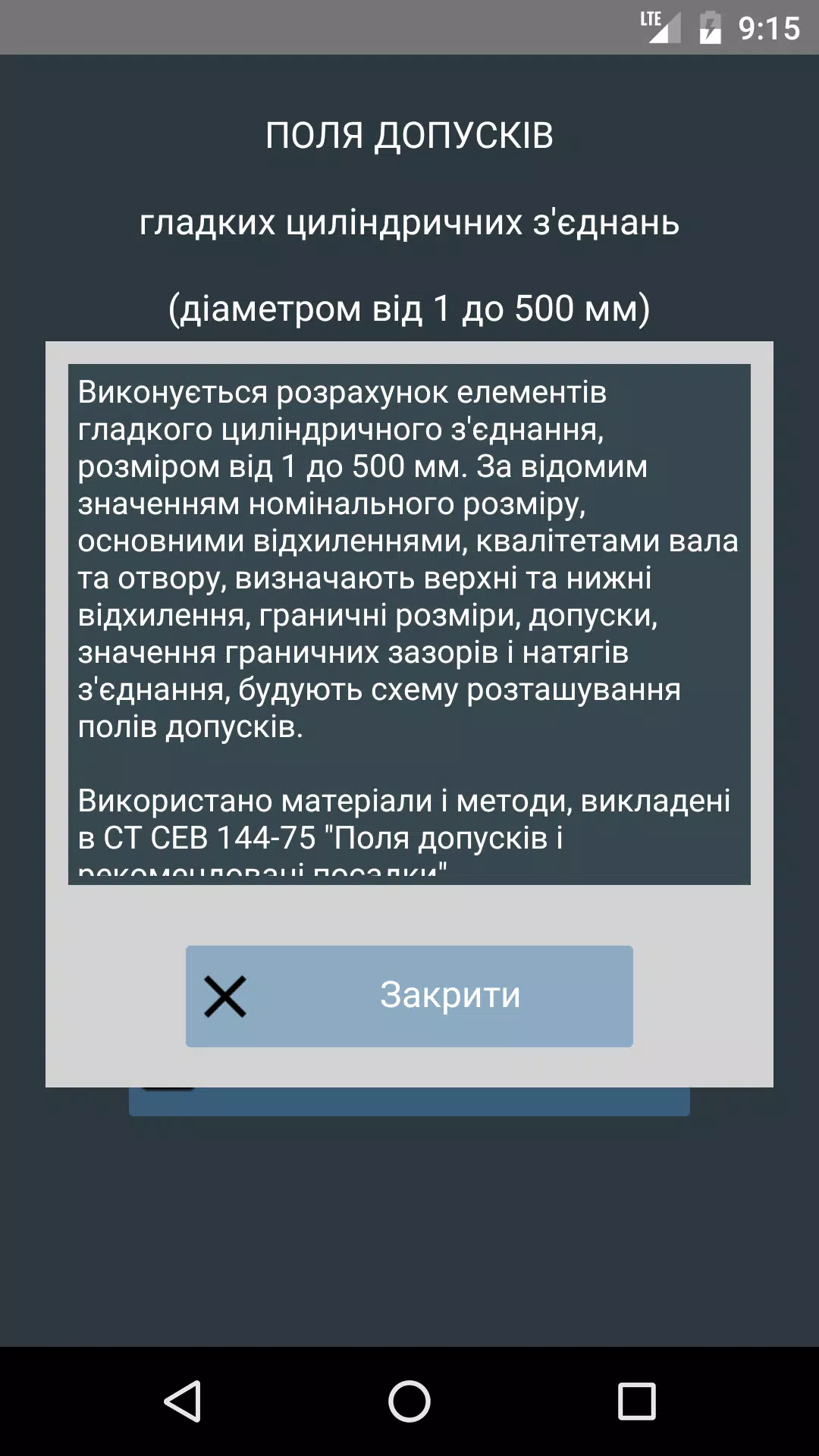

The methodology employed by "Tolerance field schemes" adheres strictly to the standards outlined in ST SEV 144-75, "Tolerance fields and recommended fits." This standard serves as the foundation for defining tolerances and fits across various industries, ensuring compatibility and reliability in mechanical systems. By following these guidelines, the application provides users with results that align with industry best practices, reducing the risk of errors during production.

Moreover, the application's user-friendly interface simplifies complex calculations, allowing users to input data quickly and efficiently. This streamlined process saves time and reduces the potential for human error, making it an invaluable resource for engineers, designers, and manufacturers alike. Whether you're prototyping new designs or optimizing existing products, "Tolerance field schemes" offers a robust solution for managing tolerance fields effectively.

In conclusion, "Tolerance field schemes" stands out as a powerful tool for anyone involved in the design and manufacturing of smooth cylindrical connections. Its ability to handle precise calculations, generate visual layouts, and comply with established standards makes it an indispensable asset in modern engineering workflows. By leveraging this application, professionals can achieve greater accuracy, efficiency, and confidence in their projects, ultimately contributing to higher-quality outcomes.
