Keysight Oscilloscope Mobile
2.8Penilaian
Sep 02, 2024Kemas kini terkini
2.3Versi
Tentang Keysight Oscilloscope Mobile
(Note: you may also be interested free Keysight mobile app named BenchVue Mobile that supports oscilloscopes, spectrum analyzers, function generators, DMMs, and power supplies.)

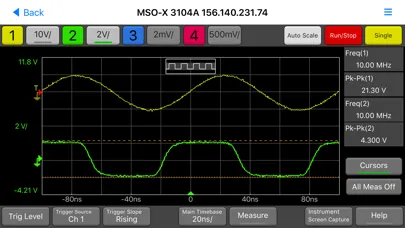

Keysight Oscilloscope Mobile is the result of an investigation by Keysight Labs. It enables you to view live waveforms, make measurements, capture instrument screenshots and control your Keysight/Agilent oscilloscope from your iPad or iPhone.
Key Features
- Supports up to 4 analog channels
- Simulation mode available - experiment with the app before connecting it to your oscilloscope
- Save screen captures from your instrument onto your mobile device
- View and control oscilloscopes that are connected by LAN, USB, GPIB or RS232
- Collaboration - Have a colleague connect to the same scope on their tablet or phone and see what you see.

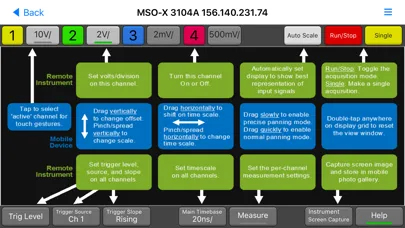

Control the following functions on your Keysight/Agilent oscilloscope (see below for supported models/firmware)
- Start/stop/single acquisition
- Autoscale
- Change time/div
- Change volts/div
- Turn channels on/off
- Select trigger type/level/source
- Measure: frequency, rise/fall time, min/max, peak-peak
CONNECTING TO AN OSCILLOSCOPE

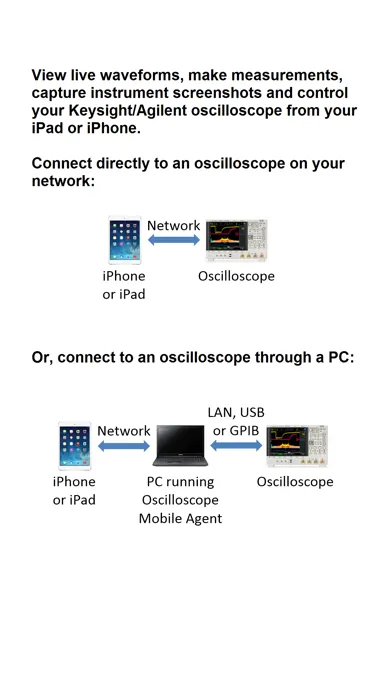

If your oscilloscope is on the network, you can connect to it directly from your mobile device as follows:

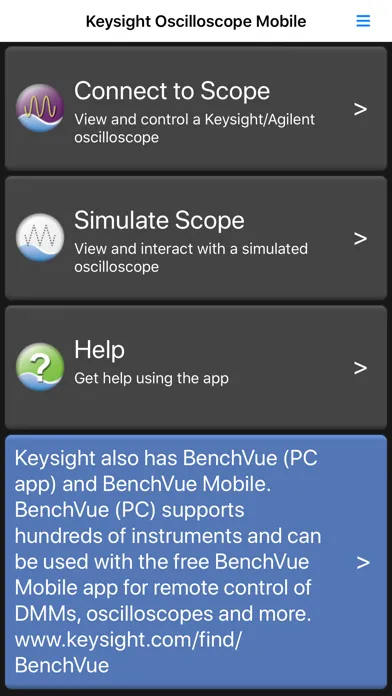

1. On your mobile device, start Oscilloscope Mobile and tap Connect to Scope

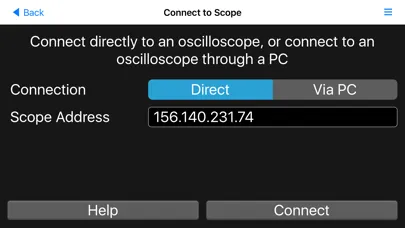

2. For the Choose Connection setting, tap Direct
3. Enter the IP Address or hostname of your oscilloscope and tap Connect
If your oscilloscope is connected to your PC via LAN, GPIB, USB or RS232, you can connect to it through Oscilloscope Mobile Agent running on your PC as follows:
1. On your Windows PC ( WinXP, Win7, Win8, Win10), install Keysight Oscilloscope Mobile Agent
Available free from http://www.keysight.com/find/scopemobile
2. Start the Keysight Oscilloscope Mobile Agent on your PC and connect to your oscilloscope.
3. Start this app and tap Connect to Scope.
4. Enter the IP Address or hostname of your PC and tap Connect.
SUPPORTED OSCILLOSCOPE MODELS
The following Keysight/Agilent 0scilloscope series and firmware revision levels are supported:
InfiniiVision 2000 X-Series, minimum firmware revision 01.10
InfiniiVision 3000A X-Series, minimum firmware revision 01.10
InfiniiVision 3000T X-Series, minimum firmware revision 04.00 (1)
InfiniiVision 4000 X-Series, minimum firmware revision 03.00
InfiniiVision 5000 Series, minimum firmware revision 05.20 (1)
InfiniiVision 6000 Series, minimum firmware revision 05.20
InfiniiVision 6000 X-Series, minimum firmware revision 06.00 (2)
InfiniiVision 7000 Series, minimum firmware revision 05.20
Infiniium 9000 Series, minimum firmware revision 03.10
Infiniium S-Series, minimum firmware revision 05.00 (2)
Notes:
1. When connecting through a PC, requires Oscilloscope Mobile Agent 1.5 or above
2. When connecting through a PC, requires Oscilloscope Mobile Agent 1.4 or above.
SUPPORT AND FEEDBACK
Please email scopemobile_support@keysight.com to report bugs, ask questions or give us your feedback.
Keysight Oscilloscope Mobile is the result of an investigation by Keysight Labs. It enables you to view live waveforms, make measurements, capture instrument screenshots and control your Keysight/Agilent oscilloscope from your iPad or iPhone.
Key Features
- Supports up to 4 analog channels
- Simulation mode available - experiment with the app before connecting it to your oscilloscope
- Save screen captures from your instrument onto your mobile device
- View and control oscilloscopes that are connected by LAN, USB, GPIB or RS232
- Collaboration - Have a colleague connect to the same scope on their tablet or phone and see what you see.
Control the following functions on your Keysight/Agilent oscilloscope (see below for supported models/firmware)
- Start/stop/single acquisition
- Autoscale
- Change time/div
- Change volts/div
- Turn channels on/off
- Select trigger type/level/source
- Measure: frequency, rise/fall time, min/max, peak-peak
CONNECTING TO AN OSCILLOSCOPE
If your oscilloscope is on the network, you can connect to it directly from your mobile device as follows:
1. On your mobile device, start Oscilloscope Mobile and tap Connect to Scope
2. For the Choose Connection setting, tap Direct
3. Enter the IP Address or hostname of your oscilloscope and tap Connect
If your oscilloscope is connected to your PC via LAN, GPIB, USB or RS232, you can connect to it through Oscilloscope Mobile Agent running on your PC as follows:
1. On your Windows PC ( WinXP, Win7, Win8, Win10), install Keysight Oscilloscope Mobile Agent
Available free from http://www.keysight.com/find/scopemobile
2. Start the Keysight Oscilloscope Mobile Agent on your PC and connect to your oscilloscope.
3. Start this app and tap Connect to Scope.
4. Enter the IP Address or hostname of your PC and tap Connect.
SUPPORTED OSCILLOSCOPE MODELS
The following Keysight/Agilent 0scilloscope series and firmware revision levels are supported:
InfiniiVision 2000 X-Series, minimum firmware revision 01.10
InfiniiVision 3000A X-Series, minimum firmware revision 01.10
InfiniiVision 3000T X-Series, minimum firmware revision 04.00 (1)
InfiniiVision 4000 X-Series, minimum firmware revision 03.00
InfiniiVision 5000 Series, minimum firmware revision 05.20 (1)
InfiniiVision 6000 Series, minimum firmware revision 05.20
InfiniiVision 6000 X-Series, minimum firmware revision 06.00 (2)
InfiniiVision 7000 Series, minimum firmware revision 05.20
Infiniium 9000 Series, minimum firmware revision 03.10
Infiniium S-Series, minimum firmware revision 05.00 (2)
Notes:
1. When connecting through a PC, requires Oscilloscope Mobile Agent 1.5 or above
2. When connecting through a PC, requires Oscilloscope Mobile Agent 1.4 or above.
SUPPORT AND FEEDBACK
Please email scopemobile_support@keysight.com to report bugs, ask questions or give us your feedback.
