Hydraulic Calculations Plus

An easy to use tool to calculate hydraulic cylinder, pumps, motors, fluid, pipes, leakage and more. You can save the detailed calcualtion method in metric system of measurement as formatted PDF file. The calculation saved as PDF is good for learning, documentation and presentations.

Incl. unit converter.

Now with USCS system of measurement (calculations done in the USCS system of measurement can't be saved as PDF at the moment).

At the moment following hydraulic calculations are available:

Force, Pressure, Area - Calculate one unknown variable of three

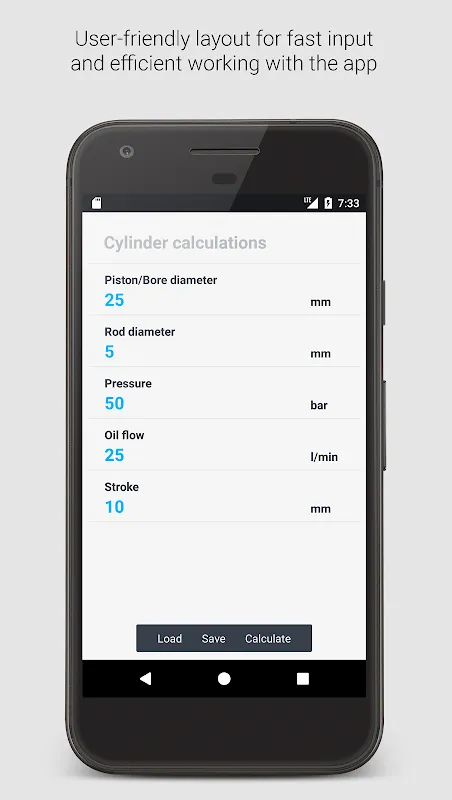

Hydraulic cylinder calculations - Forces, Areas, Pressure etc.

Pressure drop through a straight pipe - Calculation of Δp

Pressure drop through an orifice - Calculation of Δp

Temperature change due to pressure drop - Calculation of ΔT

Leakage flow in a radial gap - Calculation of n Q, P and vm

Hydraulic pump calculations - Calculation of output flow rate, displacement, pump speed, shaft power, hydraulic power, shaft torque, combined efficiency

Hydraulic motor calculations - Calculation of oil flow, displacement, motor speed, input power, output power, motor torque, combined efficiency

A unit coverter is included and following conversions are available:

Conversion betweeen power units: W, PS, kcal/h

Conversion betweeen pressure units: bar, MPa, psi

Conversion betweeen length units:m, ft, inch

Conversion betweeen temperature units: °C, K, °F

Conversion betweeen velocity units: km/h, m/s, mph

Conversion betweeen units of kinematic viscosity: St, cSt, m²/s

Thank you for installing this app. I hope you enjoy it and find it useful. If you have any questions, suggestions, or criticism, please write me at hybeapps@gmail.com. I'm looking forward to receiving some feedback from you.

*I spent a lot of time to do a good english translation and did not just pass the german text through a translation software. But I'm not a native speaker and there may be some errors. If you find them, please write at hybeapps@gmail.com. I would be very grateful for this kind of feedback and help*

By downloading this app you accept following disclaimer:

HYBE Apps disclaims responsibility for the possible errors in this app. There is no liability accepted for the correctness of the calculations done with this app. All calculations are done at your own risk. You have to critically evaluate the results before you use them.

This app does not replace precise engineering sizing and calculations according to the state of the art technology, applicable standards, laws and regulations for each application.

Subscriptions

No refunds for subscriptions.

Privacy policy:

You will find the link to the privacy policy at the bottom of this page.

*******

Please note: At the moment only calculations done in the metric system of measurement can be saved as PDF.

*******
