Eos Tools Pro

Eos Tools Pro - Monitoring & NTRIP Tool for Arrow GPS/GNSS Receivers

Eos Tools Pro is a comprehensive monitoring utility designed specifically for the Arrow Series High-Precision GPS/GNSS receivers from Eos Positioning Systems. It offers advanced GNSS information, including RMS values, PDOP, Differential Status, and satellite tracking details, which are essential for achieving high-accuracy GIS and surveying data.

Key Features

Advanced GNSS Information

Displays accuracy and quality control-related information directly on the position data, ensuring precise measurements for your projects.

Built-in NTRIP Client

Connects to RTK or DGNSS corrections through an RTK network, enhancing the precision of your GPS/GNSS data collection. The app supports audible, user-configurable alarms to alert you to specific conditions during data collection.

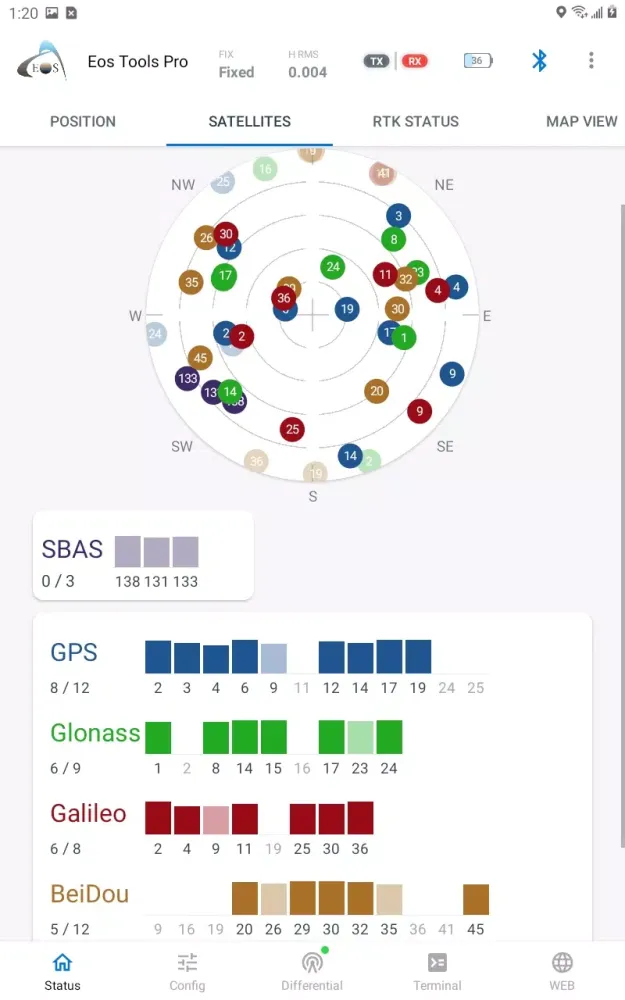

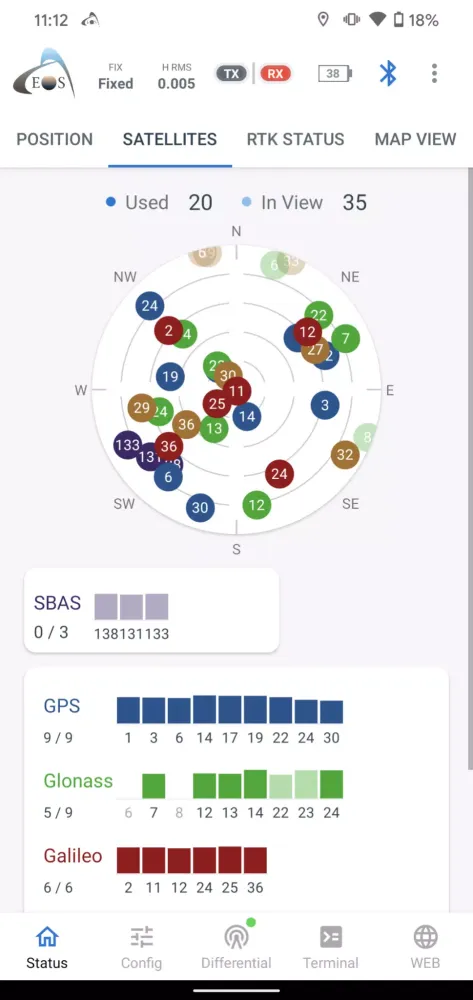

Satellite View

Provides a detailed view of satellites from all constellations in use (GPS, Glonass, Beidou, Galileo, QZSS), allowing you to monitor and optimize signal reception.

Location Extras

Passes valuable GNSS metadata to the Location Service via Mock Provider, enabling additional functionality and flexibility in your applications.

Terminal Emulator

Allows users to send configuration commands directly to the receiver, providing greater control over settings and operations.

Integrated Browser

Version 2.0.0 and later include an integrated browser to run HTML5 apps, expanding the capabilities of the tool.

Technical Details

Compatibility

Requires Android versions 5.0 and newer. The app is specifically designed for use with Arrow GNSS receivers from Eos Positioning Systems and will not function with the internal GPS of your Android device.

Battery Considerations

Continuous use of Eos Tools Pro in the background can reduce battery life due to its connection to the GPS/GNSS receiver.

Technical Support

For any technical issues, questions, feedback, or bug reports, contact support at support@eos-gnss.com. Detailed documentation and sample codes for HTML5 apps are available on the EOS-GNSS website.

Major Update Version 2.0.0 (750)

This update includes significant performance improvements, new features, and bug fixes:

• New Features

  • Raw Data TCP Server
  • Send Activation
  • Atlas Subscription
  • Atlas Subscription Info to Clipboard
  • Atlas Subscription Activation
  • About Screen
  • Request Tech Support
  • Submit Tech Support from within the app
  • Contact Eos
  • Knowledge Base
  • Bluetooth Firmware Version
  • Beep sound when taking a new measurement in Laser offset

• Adding New Functionalities

  • IRNSS in Satellite and RTK Stat Screen
  • Singapore GeoId models
  • New Zealand GeoId models (Mainland and Chatam Island)
  • France Geoid Models
  • France Guadeloupe GeoId models
  • Zoom In/Out button to Map screen
  • Copy Receiver Info feature to Clipboard
  • ArcGis, QuickCapture, and Survey123 added to the list of Esri App Launch

• Disabling Picture In Picture Feature

• Support for HAS (Galhas) GNSS Firmware

• Redesign

  • Settings Screen
  • Datum Shift Screen
  • Alarm Screen
  • Laser Offset Screens (Landscape and Portrait)

• Fixes

  • Picture In Picture Bug on Android 7 and below
  • Connection Wizard Issue for Android 7 and below
  • Rotation UI Glitch on Tablet
  • Disconnection Issue on Arrow Gold and 100 Models
  • Improved Performance and Stability
