DRA Viewer: The Official Viewer App for DRA-CAD Drawings

DRA Viewer is an officially developed application designed to provide users with the ability to view drawing data created using DRA-CAD. This app is particularly useful for anyone who wishes to access and explore the wonderful ideas and drawing assets generated through DRA-CAD directly on their Android devices. The product page for DRA Viewer can be found at this link. Additionally, detailed instructions on how to operate this app are available at this guide.

DRA Viewer stands out due to its simplicity and ease of use. It is a straightforward application that enables users to browse DRA-CAD drawings, including MPZ and MPS file formats, without any hassle. The intuitive interface ensures that even those unfamiliar with CAD software can navigate through the drawings effortlessly. Moreover, it is entirely free to use, eliminating the need for user registration. This makes DRA Viewer ideal not only for personal use but also for professional scenarios such as client presentations or collaborative projects where sharing information is crucial.

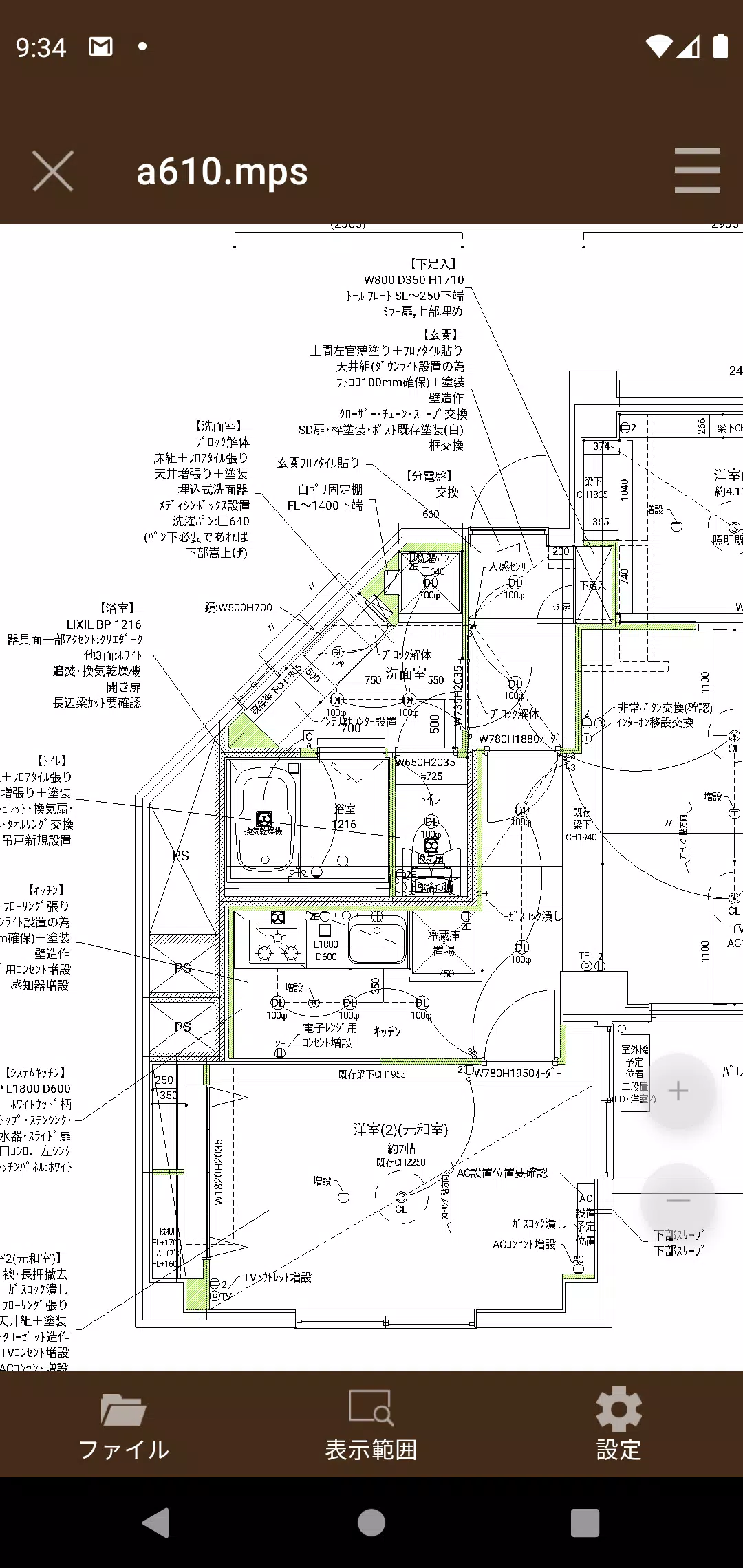

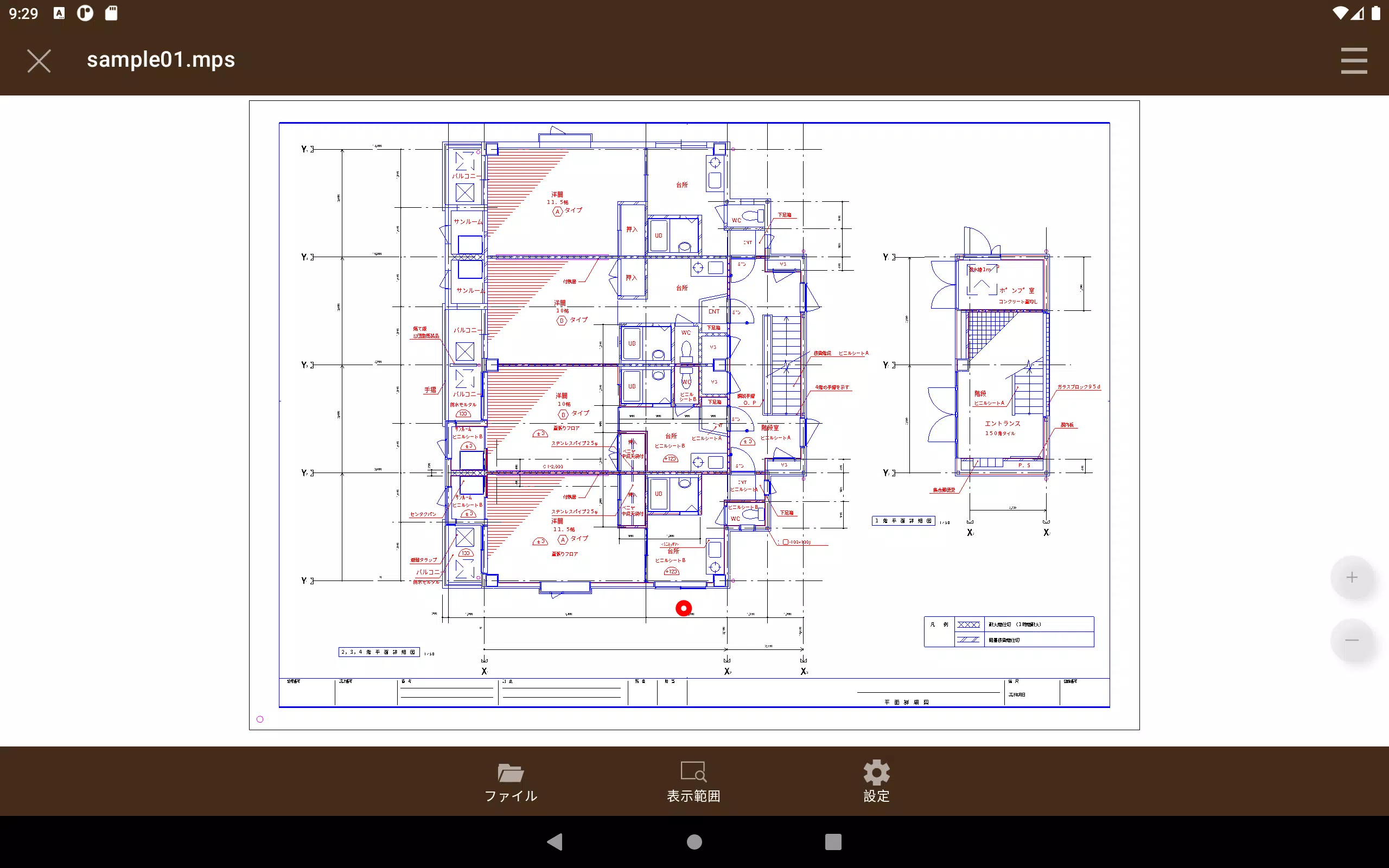

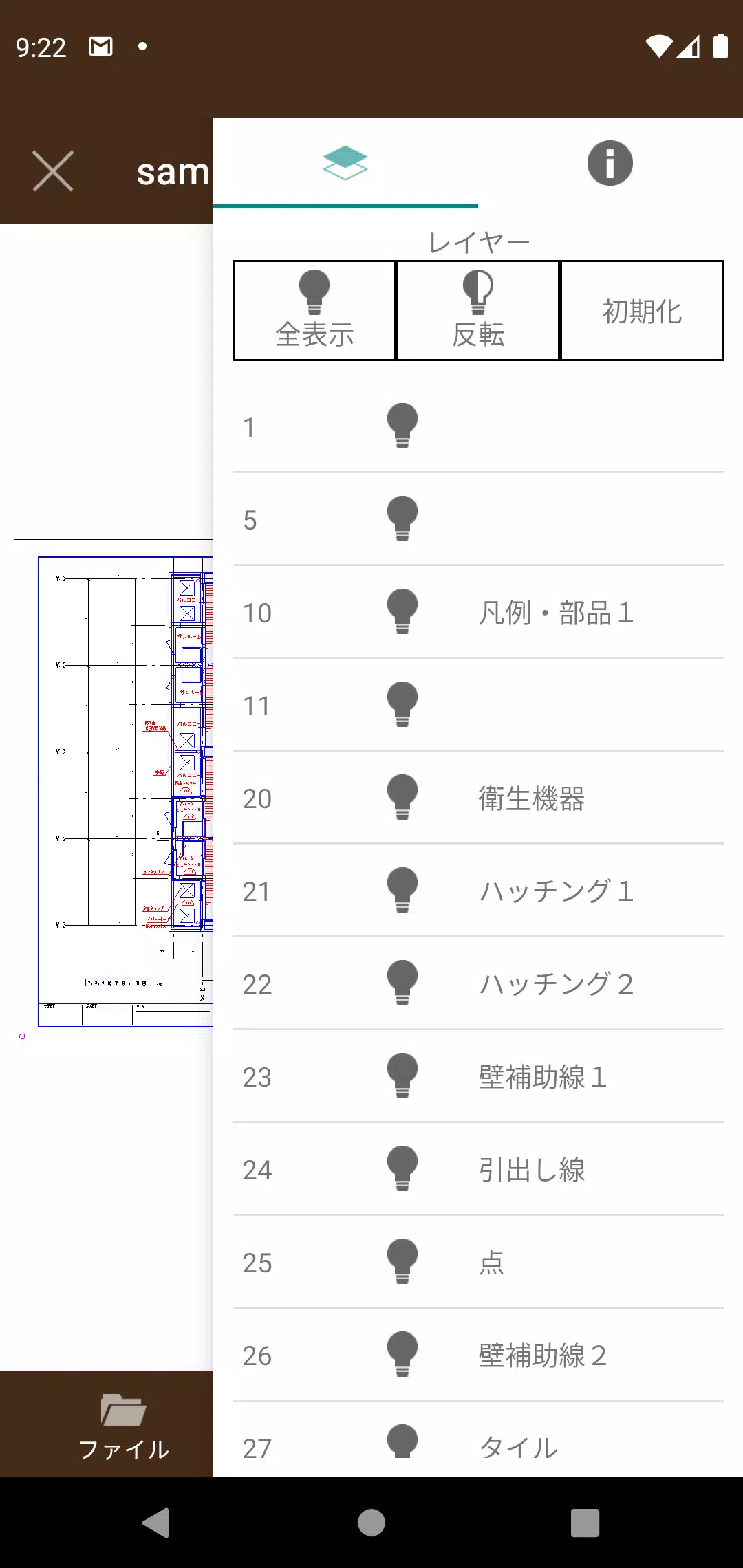

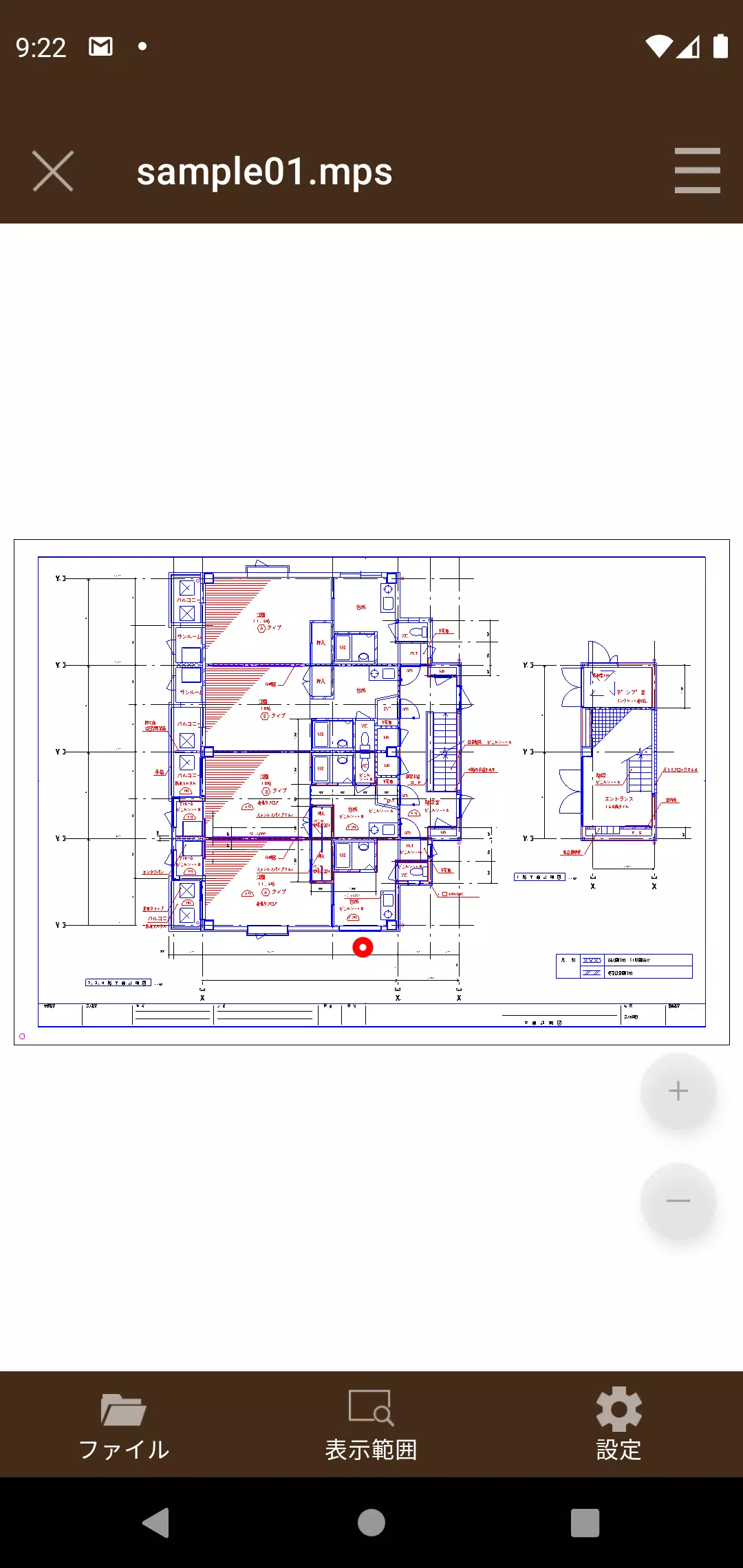

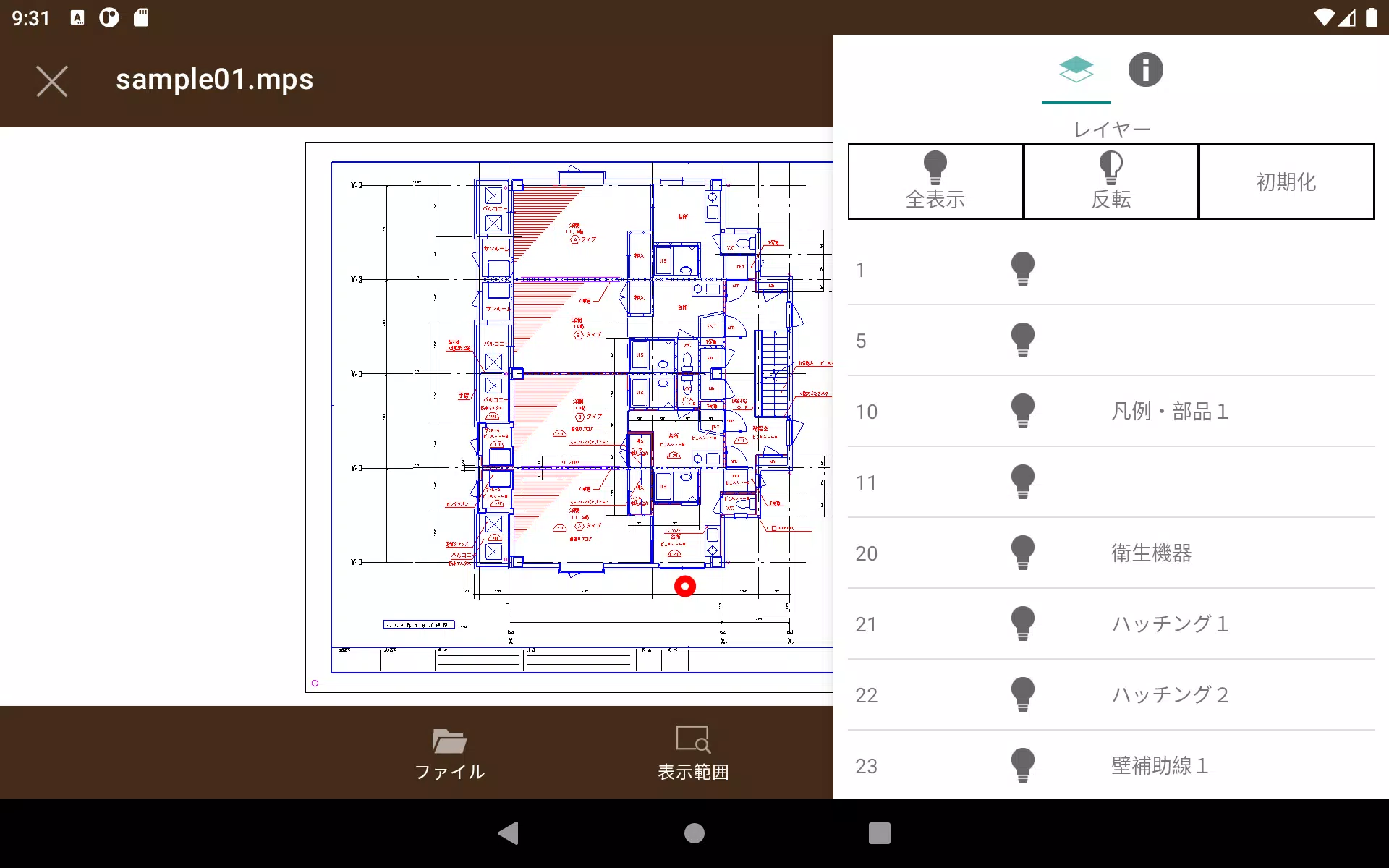

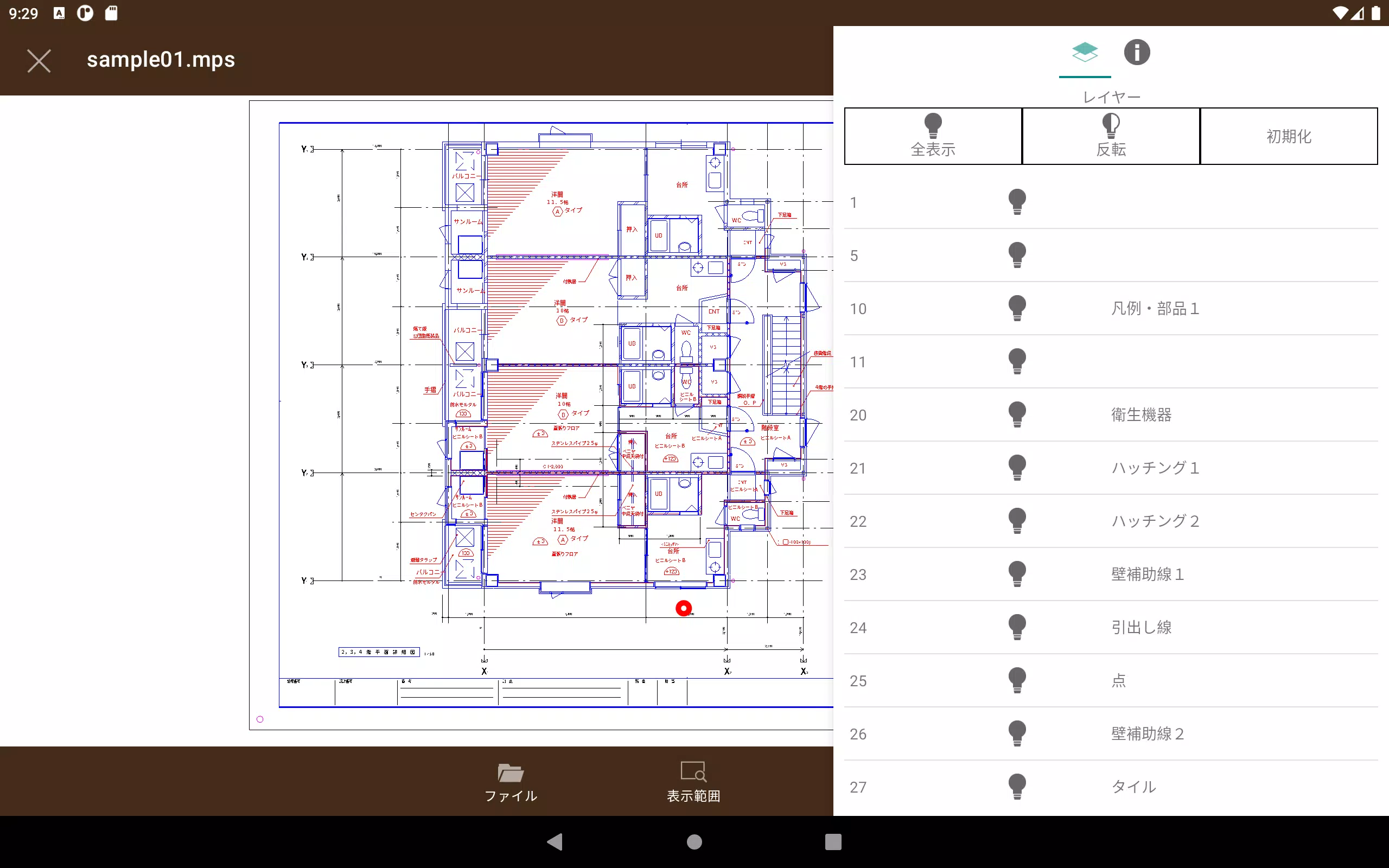

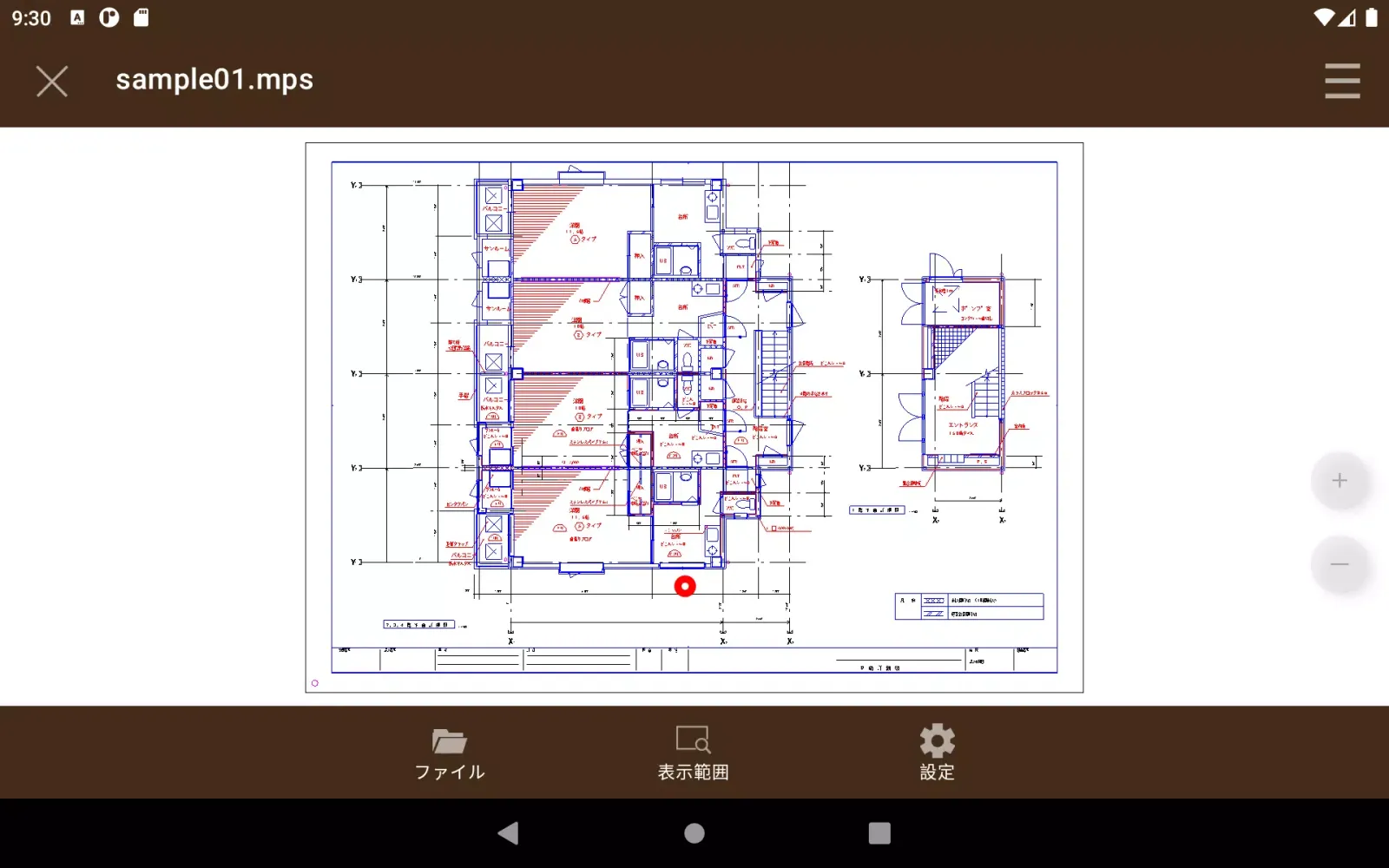

One of the key features of DRA Viewer is its compatibility with various cloud storage platforms like Google Drive, Dropbox, OneDrive, and Box. Users can easily open and view their DRA-CAD drawing files stored in these cloud services. The app supports intuitive multi-touch gestures for panning and zooming, allowing users to interact seamlessly with the drawings. Another essential feature is layer management, which enables users to check and modify the visibility of different layers while verifying their names. Furthermore, the measurement tool provides precise measurements within the drawings, enhancing productivity.

However, there are certain limitations and considerations to keep in mind when using DRA Viewer. Firstly, the supported operating system is Android 8.0 or later. Secondly, the app exclusively supports MPZ and MPS file formats; MPS files protected with passwords cannot be opened. To ensure optimal performance, it is recommended to utilize drawing files exported from the latest version of DRA-CAD. When it comes to layer settings, the app maintains the original display status as per the file output. Some specific behaviors include hidden save layers, grayed-out lock layers, absence of layout and three-dimensional elements, non-rendering of filled figures and images, and character rendering via system fonts. Additionally, the app does not support features like even character distribution or vertical writing, nor does it handle multi-text elements.

Despite these constraints, DRA Viewer remains a valuable tool for anyone looking to access and share DRA-CAD drawings on mobile devices. Its user-friendly design, coupled with its robust functionality, makes it an indispensable asset for professionals working in architecture, engineering, and construction industries. Whether you're a designer presenting concepts to clients or a team member collaborating on a project, DRA Viewer simplifies the process of viewing and interacting with complex CAD drawings. By leveraging cloud storage integration and intuitive controls, this app bridges the gap between desktop and mobile workflows, empowering users to work more efficiently and effectively.
