Warning!
Mobile CAM CNC is an extremely powerful and advanced software that contains many special algorithms. To better understand how to use it, please read the user manual before using the product:https://mobilecamcnc.github.io/products/mobile_cam_cnc_manual.pdf

Mobile CAM CNC is cycle-based CNC CAM software generating g-code compatible with FANUC/HAAS controller.Integrated 15 CNC cycles cover most typical CNC tasks.From now on, in 90% of cases, you can forget about manual CNC programming.Mobile CAM CNC is extremely intuitive easy to use.Many CNC programs can be generated in less than 1 minute!

Main features of Mobile CAM CNC
- combines the operation automatically if they use the same tool to reduce the time required to obtain the final product
- supports new and old CNC machines, so you can choose the option with or without full coolant through
- no matter in what order you add the operation, Mobile CAM CNC will put them in order *
- separate User Interface(UI) for tablets or mobiles to increase your User Experiences(UX)
- 15 operations (covers most typical CNC operations) including 2 smart cycles *
- 4 patterns
- 22 materials
- 5 tapping standards (CORSE, FINE, BSP, UNC, UNF)

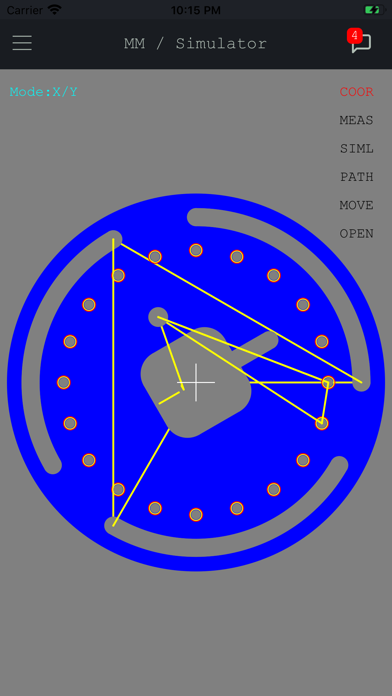

- simulator(see coordinates, check distance between points, play simulation of tool path, quick access to selected operation, move operations and move & copy operations, delete operations)
- subroutine, full code mode
- decimal point (especially in Europe it will cause you a lot of problems if you forget to insert)

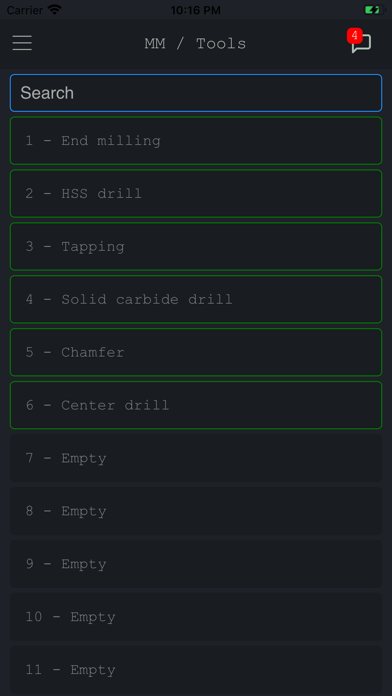

- tool magazine limit:50 tools

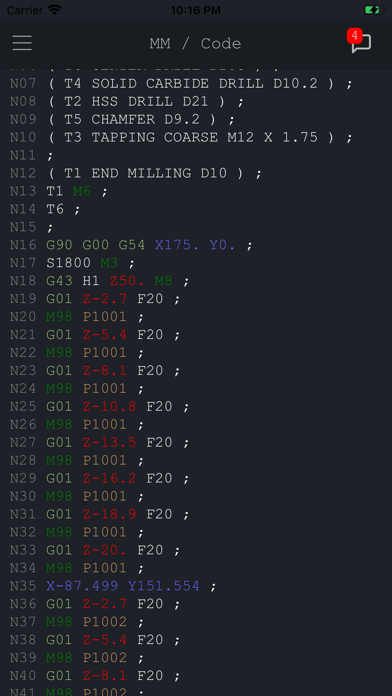

- automatically generate information about the tool in code
- automatic insertion code of the following tool
- metric / imperial mode
- an automatically generated comment in the header containing all the tools needed to perform the required operation
- highlights code to increase readability e.g. Z in red means dangerous, be careful
- uses the simplest g-code (the code generated by Mobile CAM CNC is easy for beginners to understand)

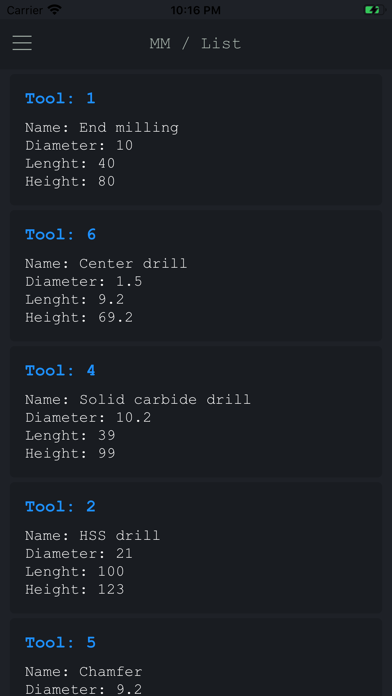

- generates a tool list with the most important data
- Mobile CAM CNC will let you know if it has created an additional tool by displaying a red circle in the upper right corner of the top bar
- line number (increments by 1, 5 or 10)
- save as: txt

Mobile CAM CMC is extremely powerful CNC software, which you, dear user, can improve by sending us the feedbacks!

Mobile CNC CAM includes 15 CNC cycles:
- Smart Tapping
- Smart Drilling
- boring/reaming
- circular face milling
- rectangular face milling
- linear face milling
- linear face milling 2
- linear face milling 3
- linear face milling 4
- circular shoulder milling
- rectangular shoulder milling
- circular pocket milling
- rectangular pocket milling
- slot milling
- circular slot milling

See below what the Smart Drilling Cycle and Smart Tapping Cycle can do for you:
- adds central drill, if hss drill will be used
- adds chamfer operation (user can deactivate)
- adds an intermediate drill for deep drilling (if the drilling is deeper than 20 x the diameter of the drill bit)
- selects a right canned cycle depending on the working depth and the type of drill bit
- selects the coolant flow according to the drill bit
- selects the best drill bit among the tools in the magazine
- calculates the feed rate and feed rate
- adjusts the feed rate and feed rate depending on the workpiece materials, working depth, etc.
- assigns the required depth for preliminary operations
- reacts of any change in the tool magazine

Languages
- English
- Française
- Española
- Italiana
- Deutsche
- Portugues
- Pусский
- Polski
- Český
- Slovenský
- Magyar
- 한국어
- 日本語
- Eesti
- Latviešu
- Lietuvių
- Română
- Ελληνικά
- 汉语
- Việt
- Türk

You can find a lot of useful information on our website in the FAQ section:https://mobilecamcnc.github.io/products/faq.html

Thank you for purchase Mobile CAM CNC
