PumpFuse

The PumpFuse is a power monitor and pump protection controller that works with all types of
sump pumps and utility pumps.

Sometimes your float switch can get stuck and your sump pump runs continuously until it
overheats. This leads to broken pumps and costly repairs.

The PumpFuse detects loss of load and overloads conditions and turns your pump off before it
gets damaged. It also alerts you via smartphone app.

Detects loss of load:
+ Dry running
+ Defective float switch or switch being stuck in a sump pit
+ Pump air-locked

Detects overloads:
+ Jammed or damaged impeller
+ Check valve stuck, closed, or installed incorrectly
+ Discharge pipe blocked
+ Bad bearings

The user can also reset the fault manually or in auto mode the PumpFuse will turn on the pump
after a user adjustable delay.

How does it work?
The PumpFuse monitors the current, voltage and power consumption of your sump pump and
can detect motor overload and loss of load conditions and react to it. It uses machine learning to
set the low and high trip points automatically. No need to guess the power trip values or adjust them
manually.

The PumpFuse requires no external sensors and it is a plug-and-play device. It works as a
smart outlet and can be controlled via mobile app.

Main benefits:
- Compatible with all sump pumps and utility pumps from 1⁄6 HP to 1 HP
- No setup, no additional sensors or changes to your pump system required. Just plug in the
PumpFuse and protect your sump pump from damage.

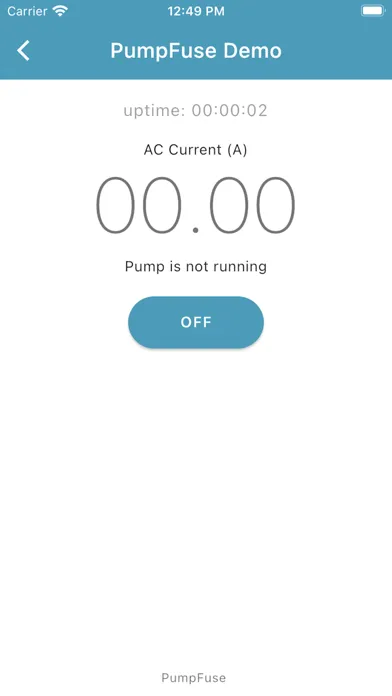

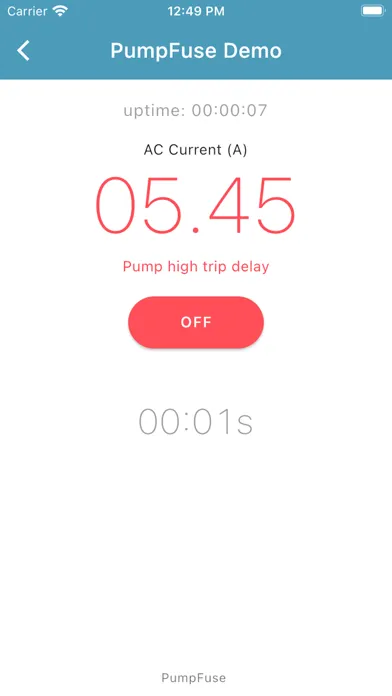

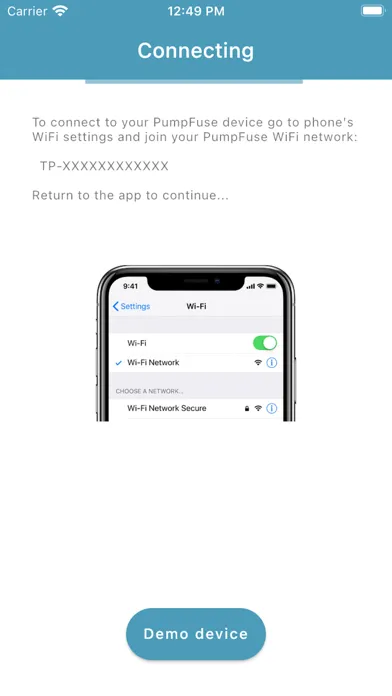

- Optionally, connect the PumpFuse app and turn the sump pump on and off remotely with
your smartphone. Monitor your sump pump power and receive push notifications when a
critical condition is detected.
- Water resistant and can be used outdoors.
