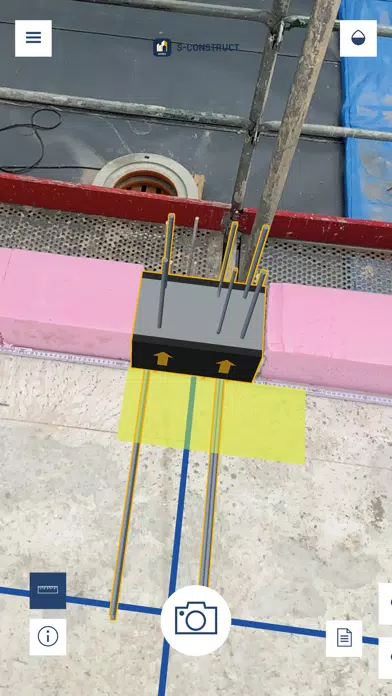

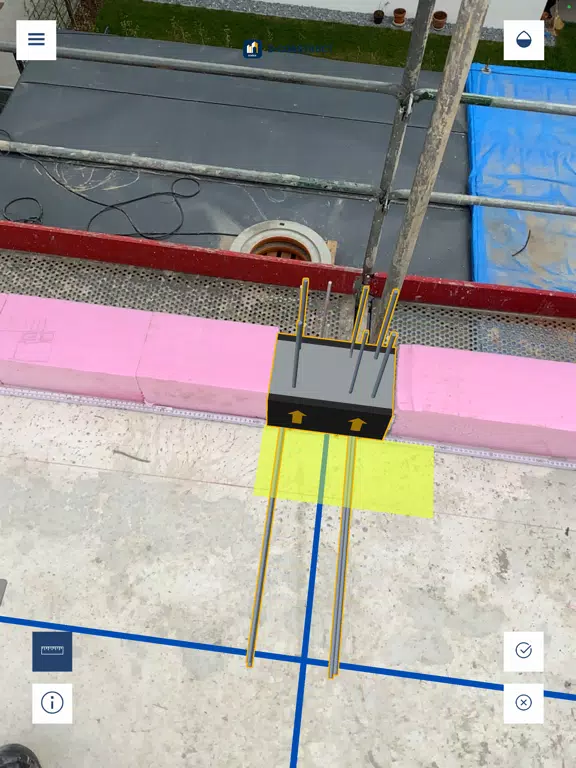

S-Construct supports the installation of Schöck Isokorb® type A and type F products by projecting 3D layout plans from the calculation program "Attika Tool" onto the construction site using augmented reality technology (AR).

This enables quick and precise installation of the Schöck Isokorb® products at the intended position. By displaying the structurally acceptable tolerance ranges, on-site adjustments to the installation position can be carried out easily and safely.

The app additionally provides an efficient way of construction site documentation with digital installation protocols for various Schöck products.

Features

For Schöck Isokorb® Typ A und Typ F:

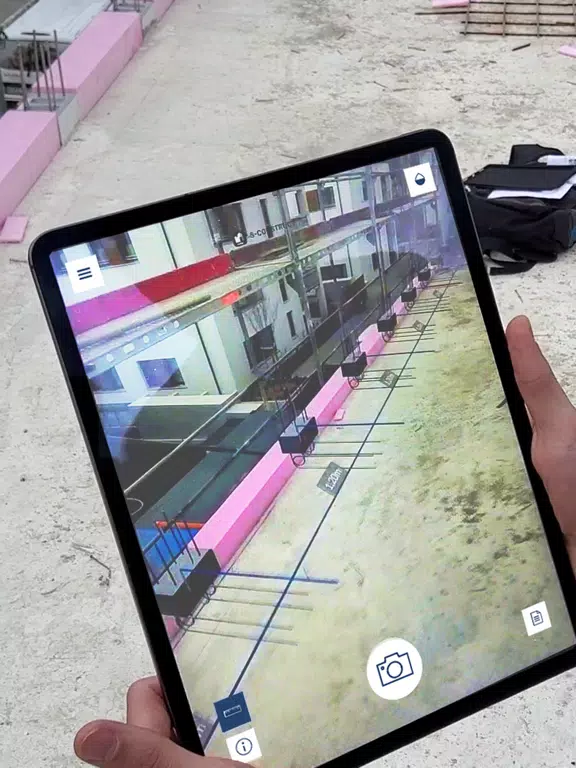

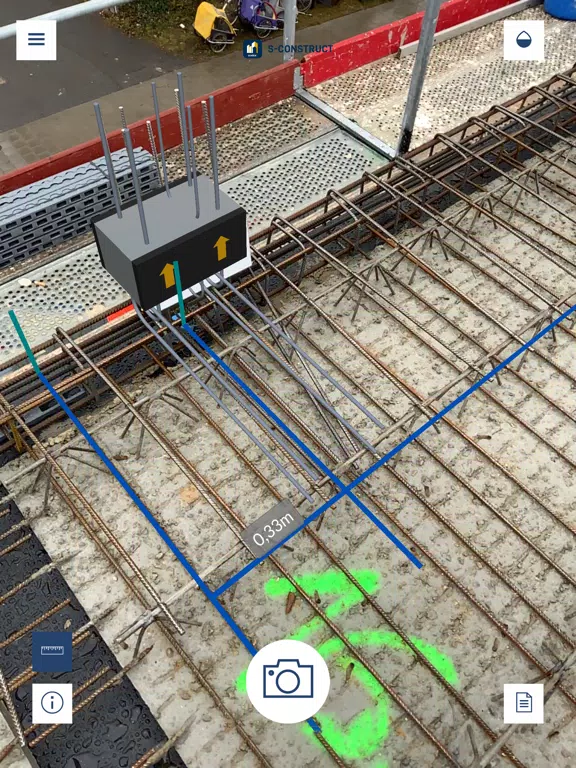

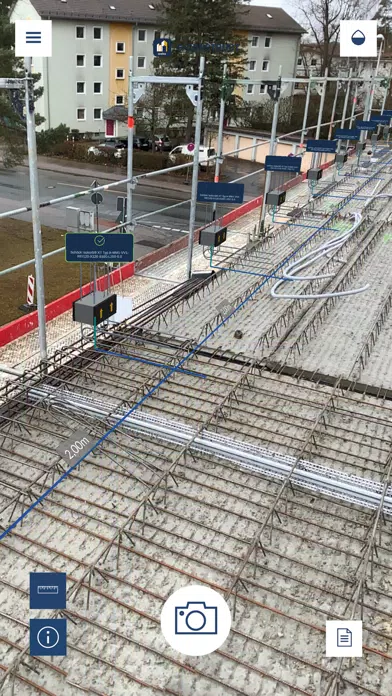

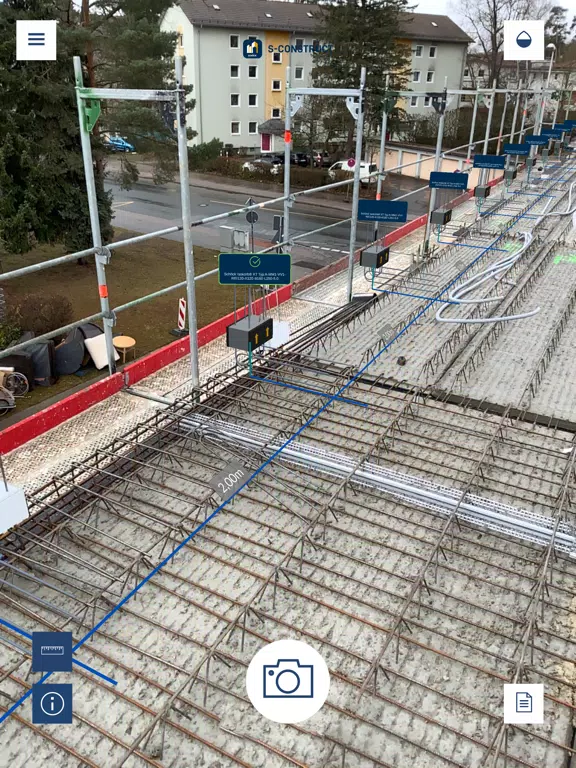

• Visualisation of the installation layout in the real working environment

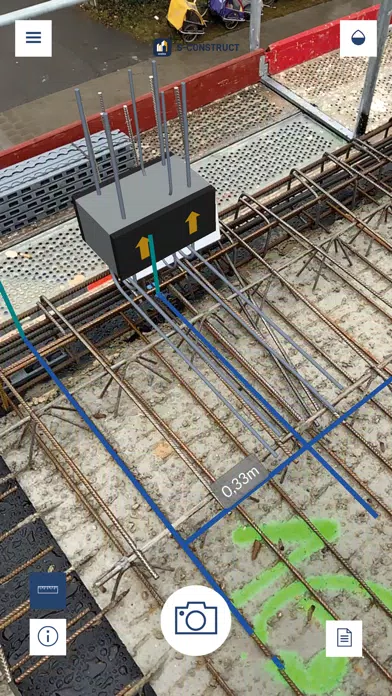

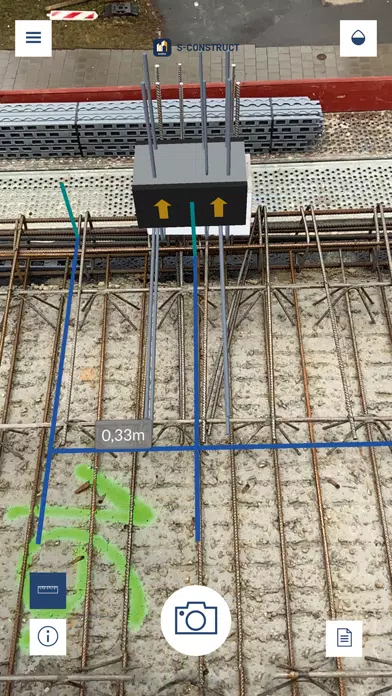

• Display of the installation position and location of the planned products

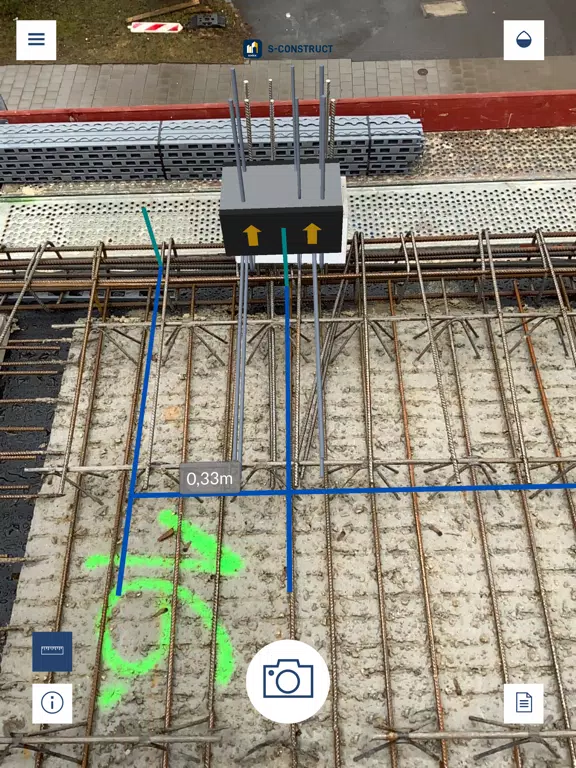

• Visualisation of the acceptable constructive tolerances of the products
• Marking of the installation status

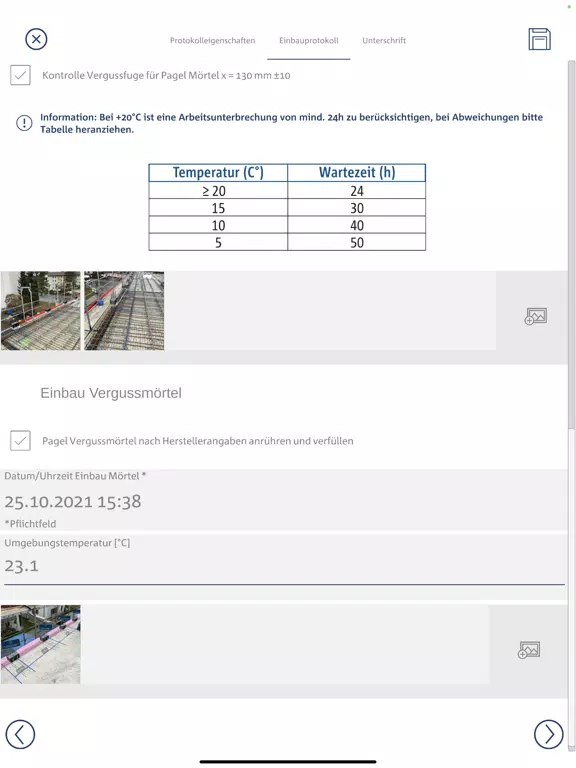

• Documentation with instalation protocol

For Schöck Sconnex® Typ P:

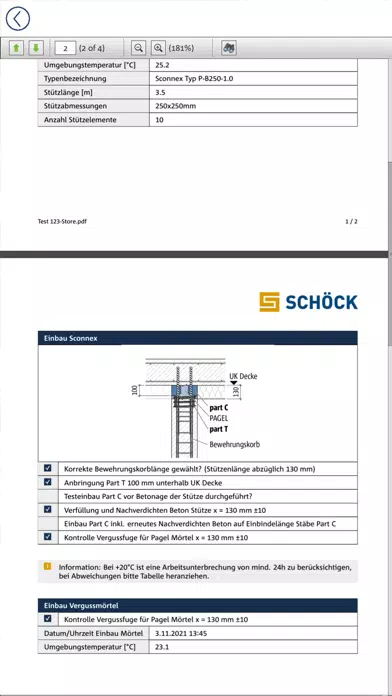

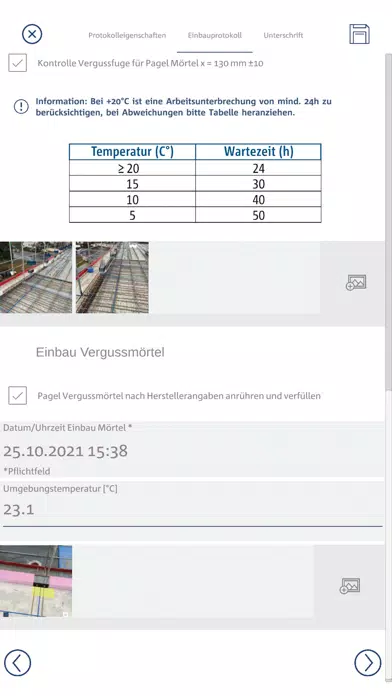

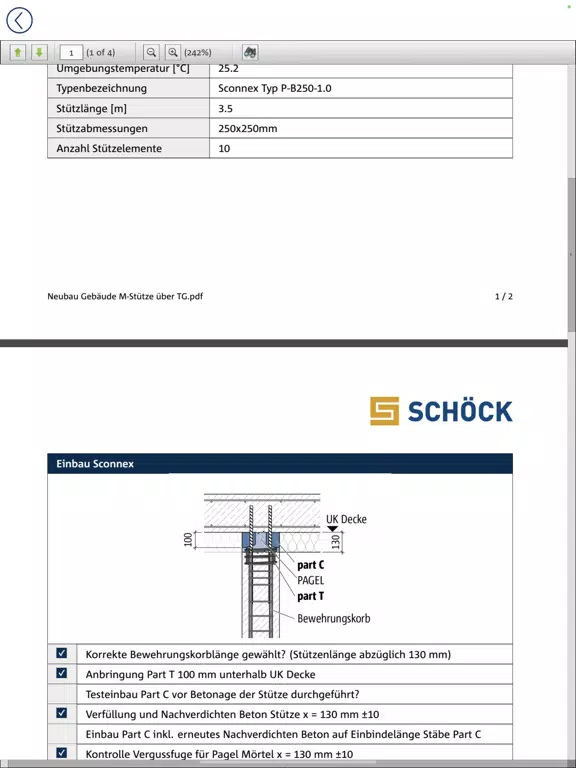

• Quality assurance through installation protocol for Sconnex type P (feasible without using the Attika-Tool)

Requirements for the projection of installation plans using AR:
• Augmented Reality compatible tablet or smartphone
• QR code or link to the structural design result from the Attika tool: https://attika-tool.schoeck.de/
