2DCAM and DXF Maker

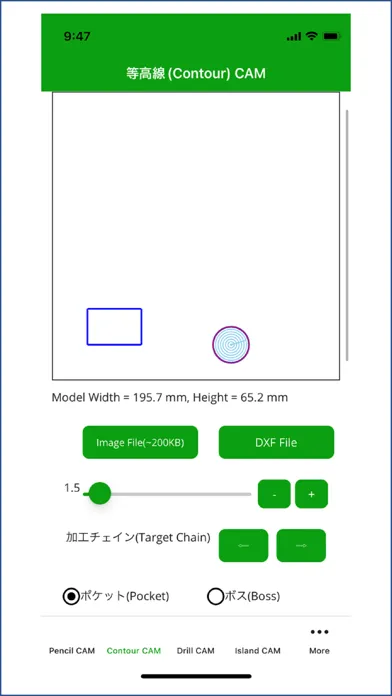

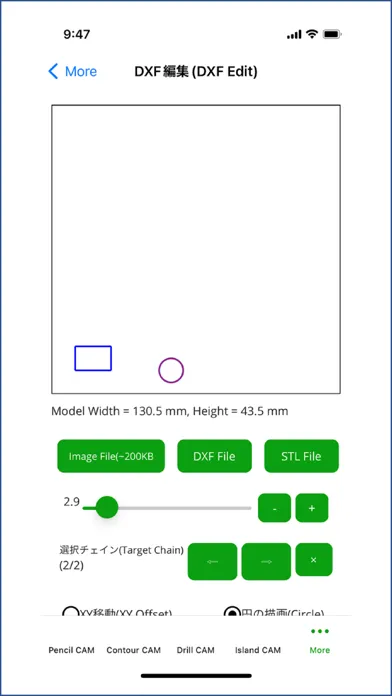

This is an application that creates NC programs for cutting using NC machine tool. In addition, it is an application equipped with a CAD function specialized in 2D. DXF files can be created with simple operations. The drawn information can be output as a DXF file. You can also extract outlines from black and white image files and output them as DXF files. With the CAM function, machining such as drilling, pocketing, and penciling can be easily performed.

-The main target of this app-
The main target of this app is people who craft something for hobbies and manufacturing by using NC machine tool.
This app is for general because NC machine tools have become very inexpensive, and more and more people are using them for hobby like 3D printers.

-The purpose of this app-
This app can easily create NC program from 2D information file(DXF file, Image file).

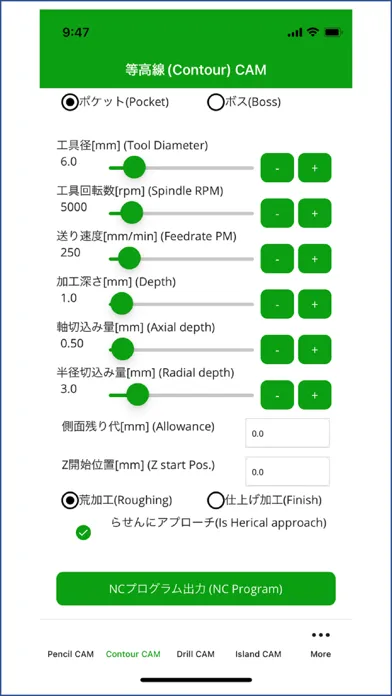

User can get NC program as text format only by inputting machining conditions.
This application will be an effective tool not only for actual machining with NC machine tools, but also for users who are learning production machining from now on.
