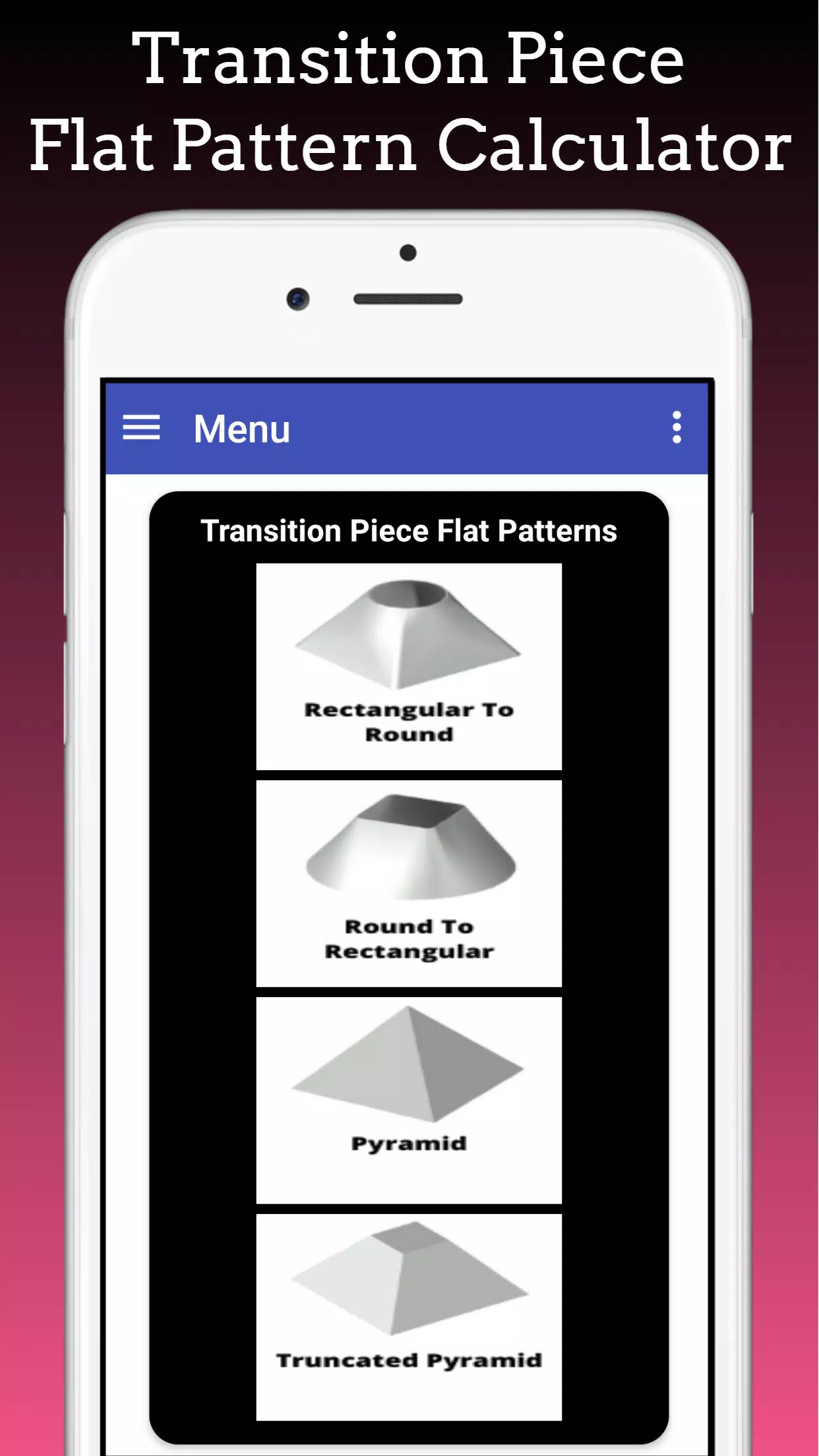

Description of Transitions Layouts Application

The Transitions Layouts application is a versatile tool designed for the development of various layout designs for fabrication purposes. It offers a range of functionalities that cater to different shapes and requirements.

Key Features

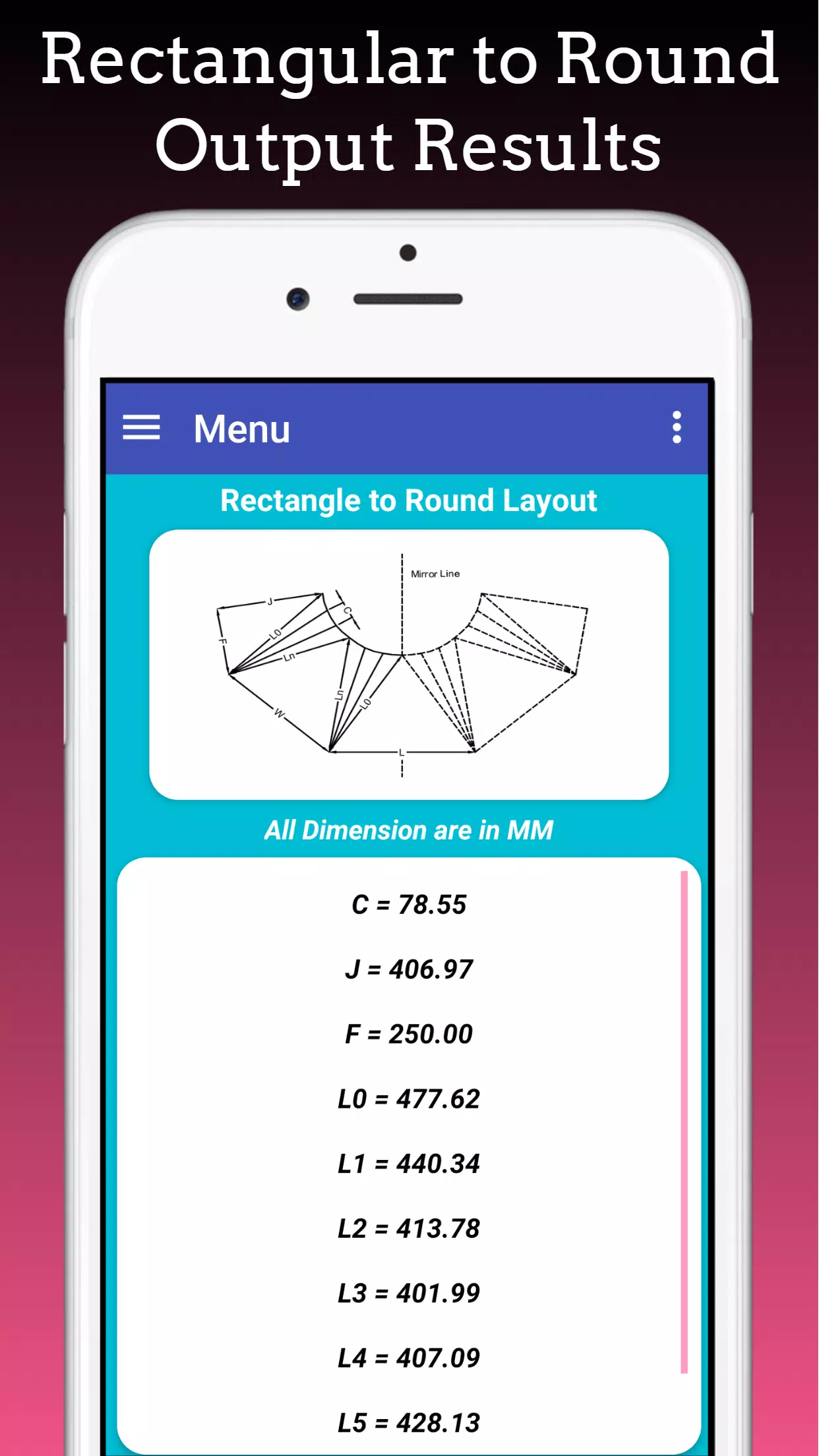

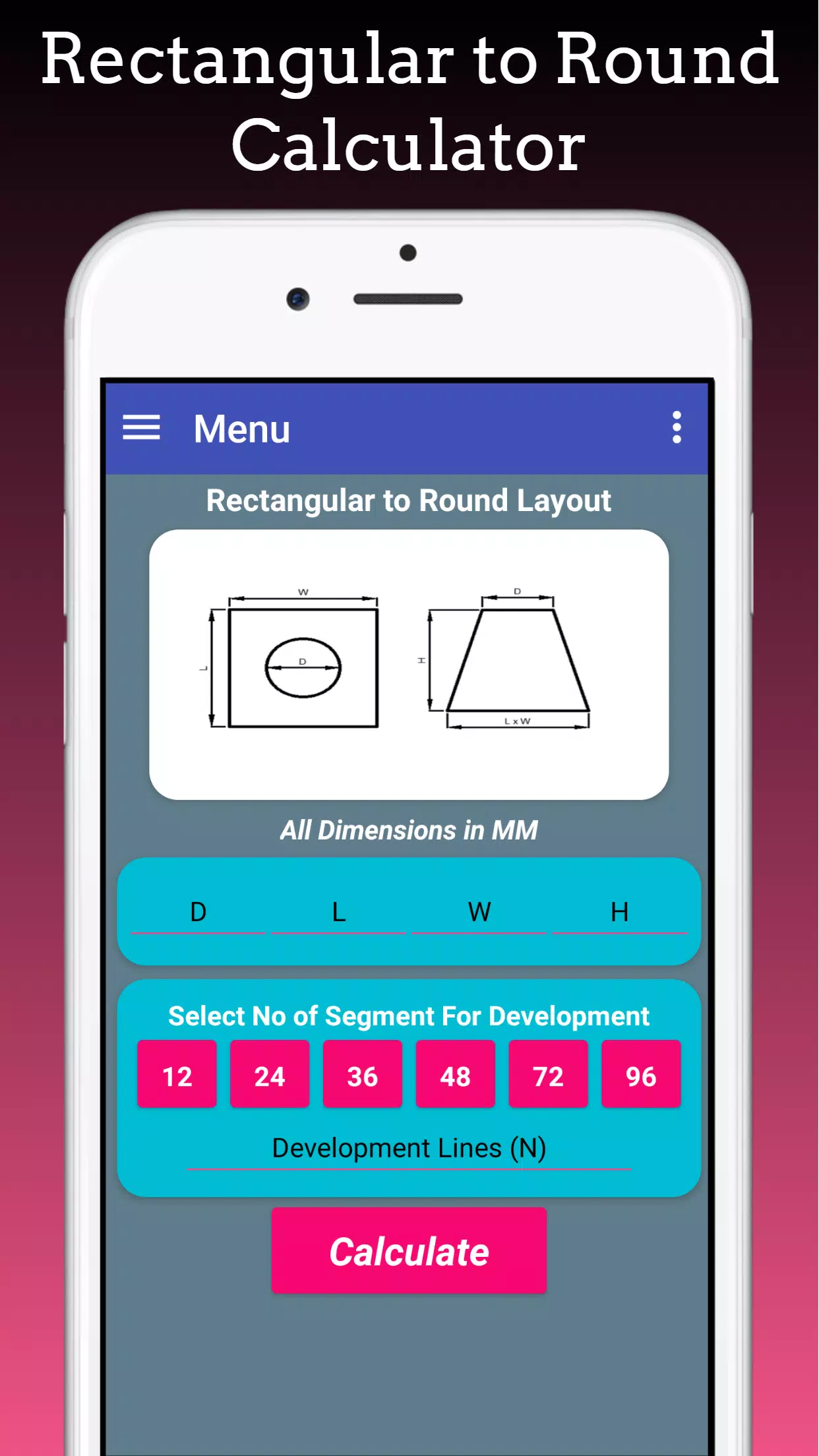

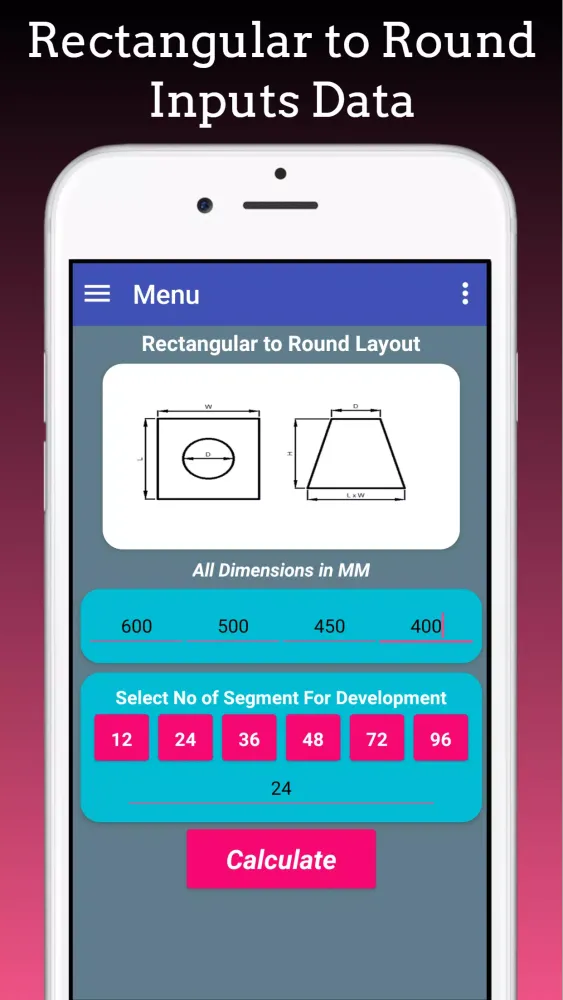

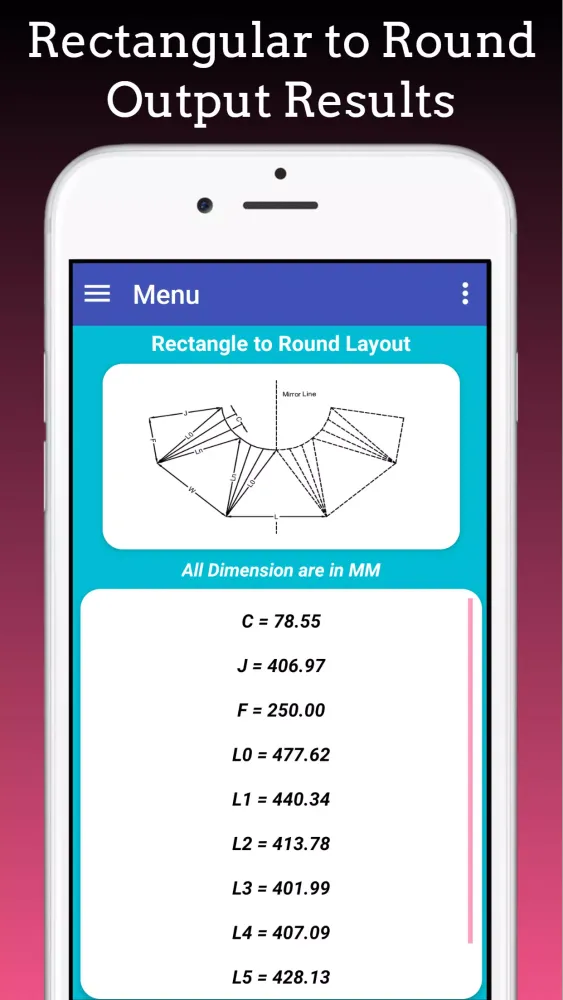

• Square to Round or Rectangular to Round Layouts:

  • You can create layouts where a square or rectangular base transitions into a round shape.
  • Choose the number of joints and lines for development, with inputs including the dimensions of the base (length and width) and the diameter of the top circular shape.

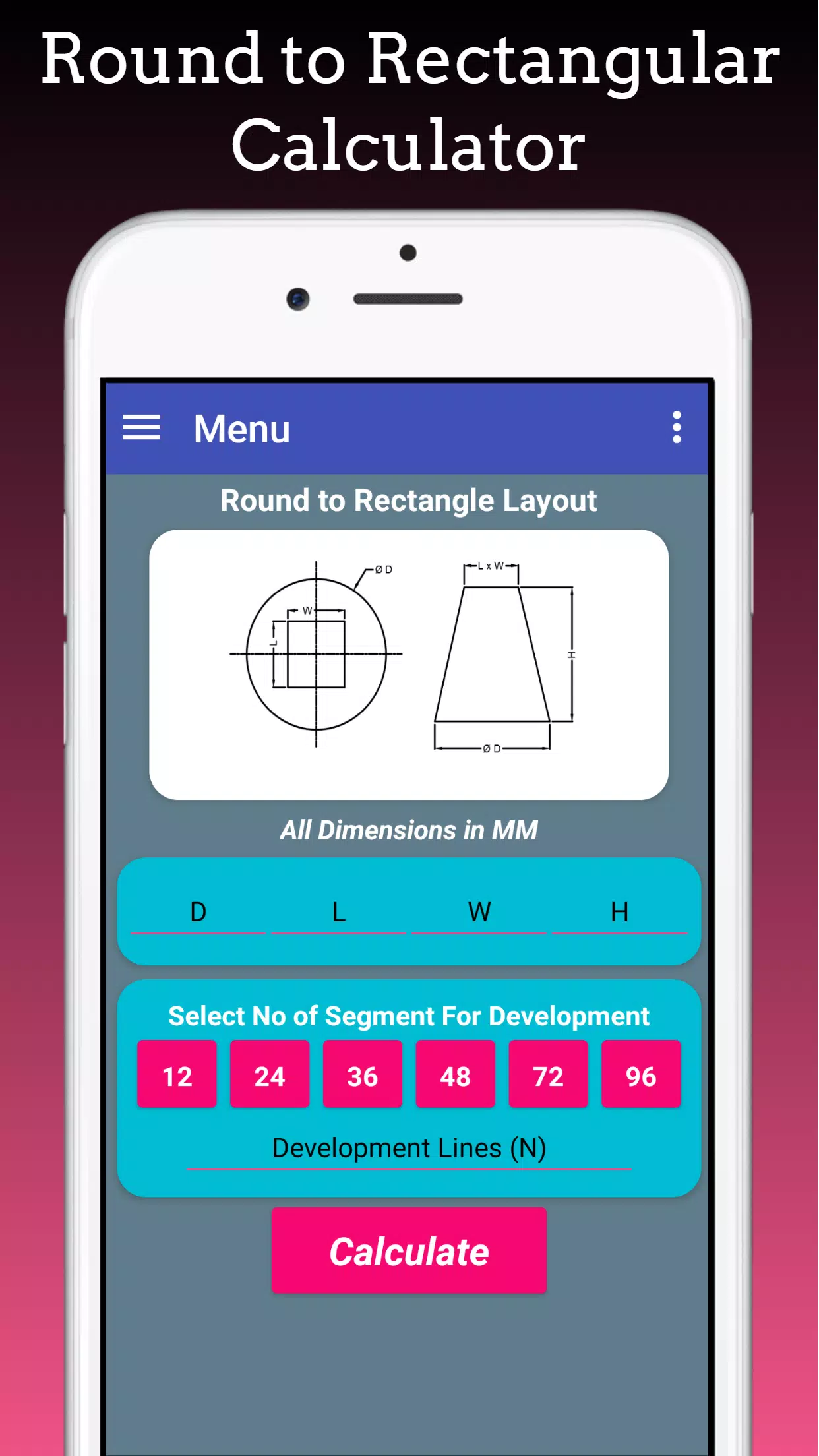

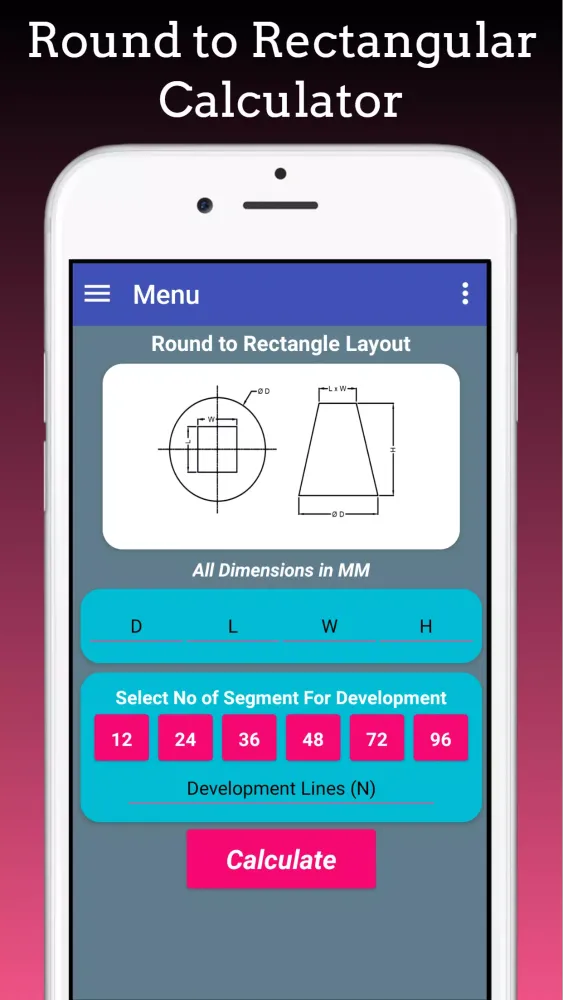

• Round to Square or Round to Rectangular Layouts:

  • Reverse the process and transition from a round shape to a square or rectangular one.
  • Similar to the previous feature, select the number of joints and lines for development, and input the necessary dimensions.

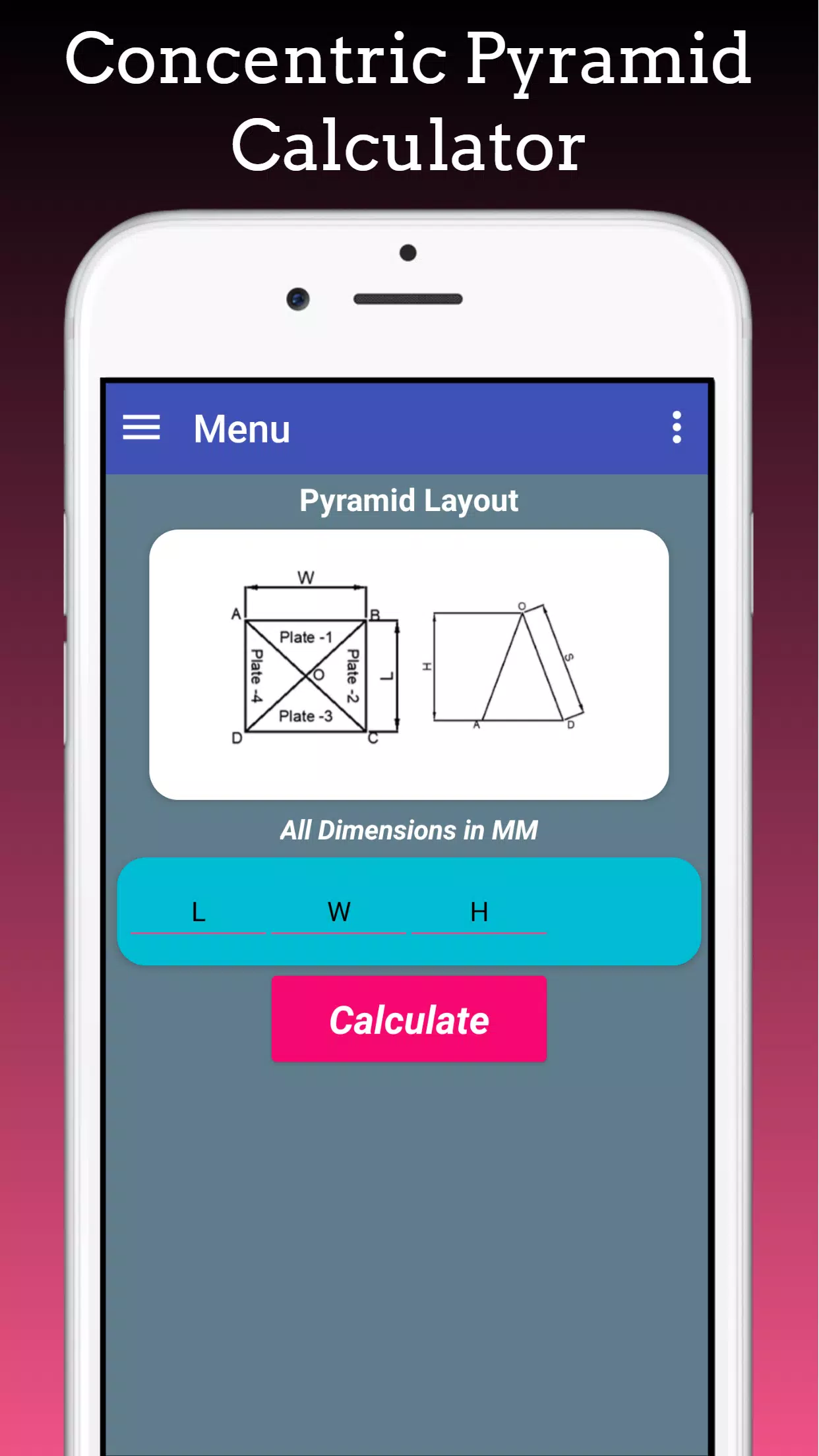

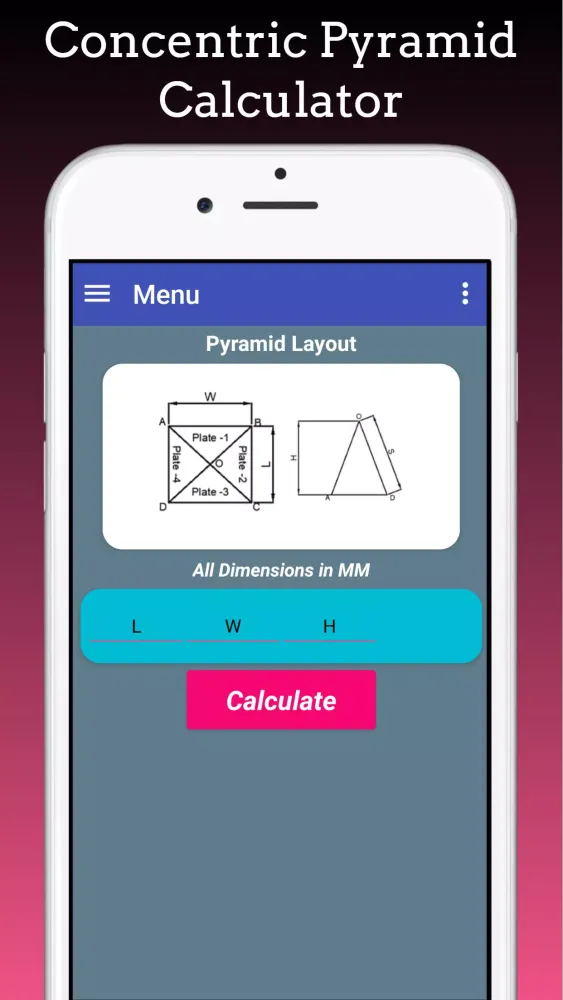

• Pyramid Layouts:

  • Generate layouts for pyramid shapes.
  • Input the base length, width, and height of the pyramid, and the tool will provide a layout for two plates.

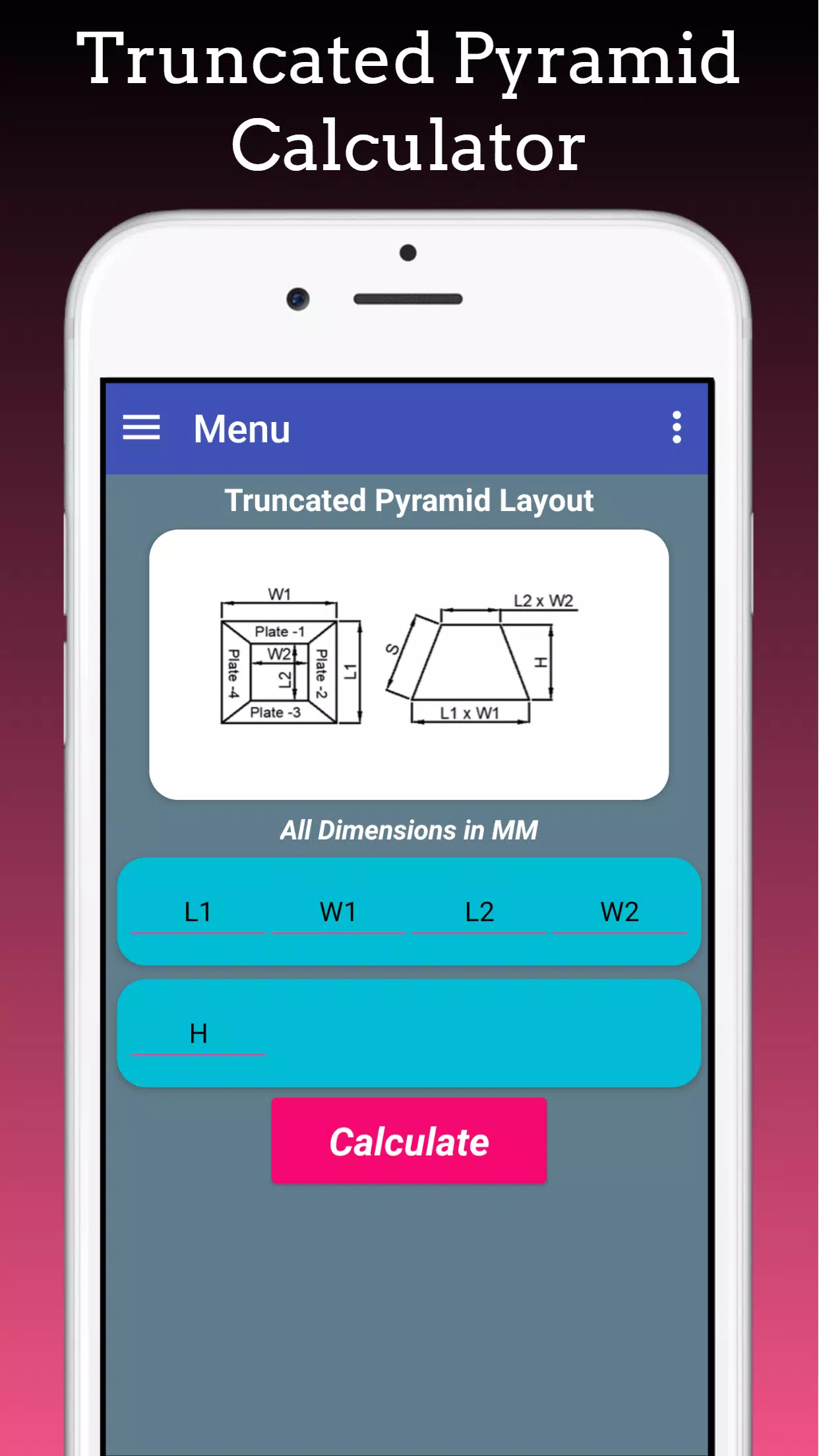

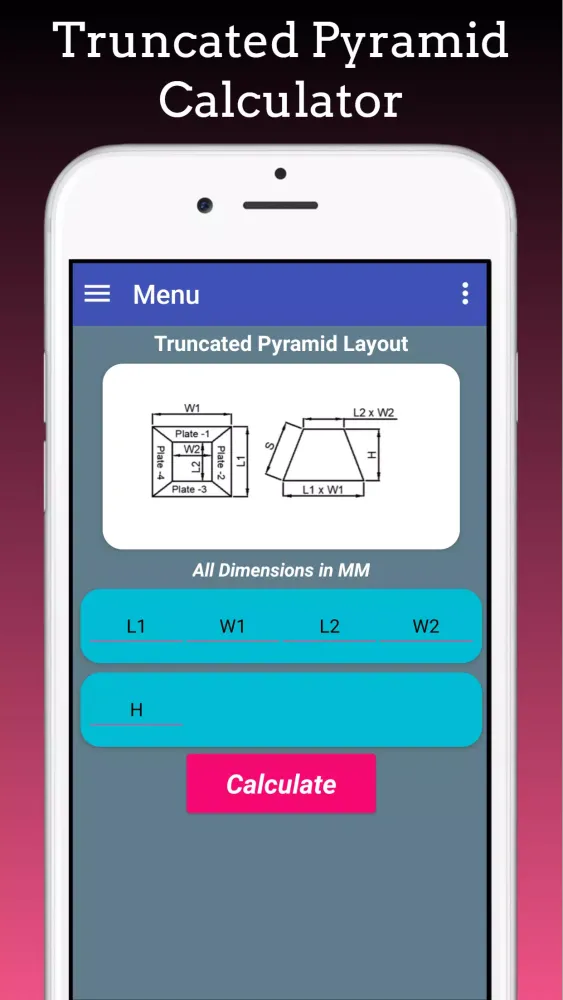

• Truncated Pyramid Layouts:

  • Develop layouts for truncated pyramids.
  • Input the base length, width, top length, width, and height of the pyramid, and the tool will provide a layout for two plates.

Development Options

The application provides three main development options:

• 1 Part or 1 Joint Layout: Suitable for simpler designs.
• 2 Part or 2 Joint Layouts: For more complex structures requiring additional joints.
• 4 Part or 4 Joints Layouts: Ideal for intricate designs that need multiple joints.

Line Options

For layout development, the app offers several line options:

• 12 Lines
• 24 Lines
• 36 Lines

These options allow users to fine-tune their designs based on the level of detail required.

Applications

This application is particularly useful in:

• Fabrication Industry: For creating precise layouts for metalworking projects.
• Process Equipment Manufacturing: For designing components used in industrial processes.
• Sheet Metal Industry: For developing accurate layouts for sheet metal parts.

By utilizing these features, users can efficiently develop and visualize complex shapes and transitions, making the fabrication process smoother and more accurate.
