Fabrication Weight & Cost Calculator

Overview

The "Fabrication Weight & Cost Calculator" is an essential tool designed for professionals working in the fabrication industry, construction sector, equipment manufacturing, steel structural fabrication, process equipment manufacturing, and heavy equipment manufacturing. This application simplifies the calculation of fabrication weight and cost for a wide range of commonly used shapes and steel sections.

Available Calculators

The app includes the following calculators:

1. Plate Weight Calculator
2. Circle Weight Calculator or Round Bar Weight Calculator
3. Pipe Weight Calculator or Shell Weight Calculator or Tube Weight Calculator
4. Cone Weight Calculator or Full Cone Weight Calculator or Concentric Cone Weight Calculator

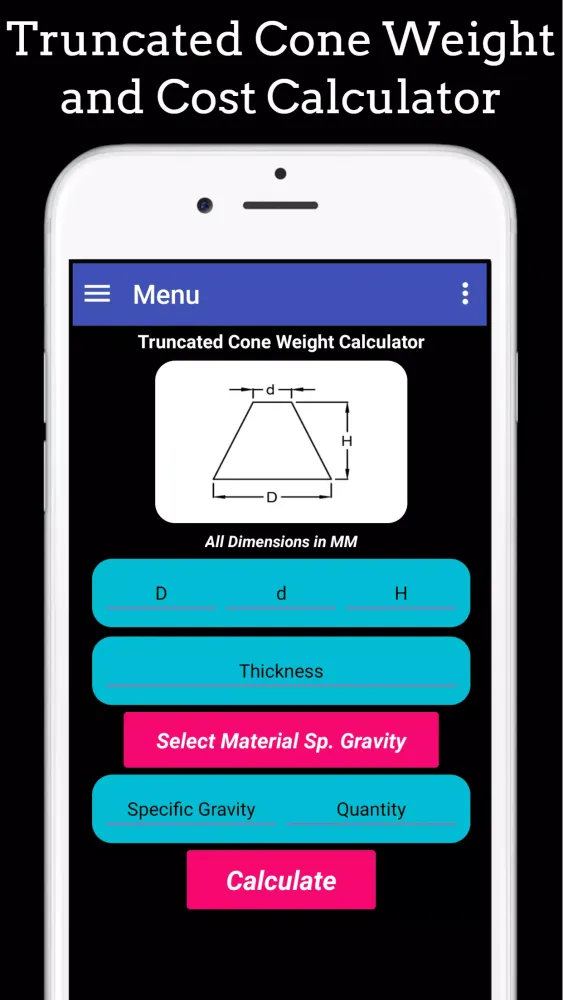

5. Truncated Cone Weight Calculator or Half Cone Weight Calculator
6. Dish End Weight Calculator or Vessel Heads Weight Calculator or End Cap Weight Calculator
7. Channel Weight Calculator or C Section Weight Calculator
8. Beam Weight Calculator or I Section Weight Calculator
9. Angle Weight Calculator or L Section Weight Calculator
10. Square Tube Weight Calculator or Hollow Tube Weight Calculator or Hollow Section Weight Calculator
11. Tee Weight Calculator or T Section Weight Calculator
12. Square Bar Weight Calculator or Square Section Weight Calculator
13. Hex-Bar Weight Calculator or Hex Section Weight Calculator
14. Triangular Bar Weight Calculator or Triangular Section Weight Calculator

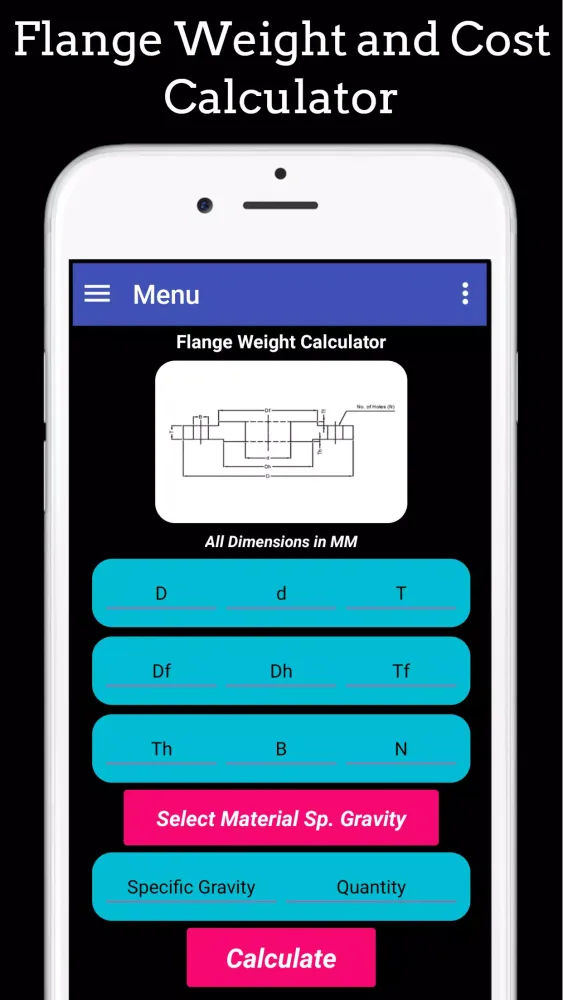

15. Flange Weight Calculator

How to Use the Application

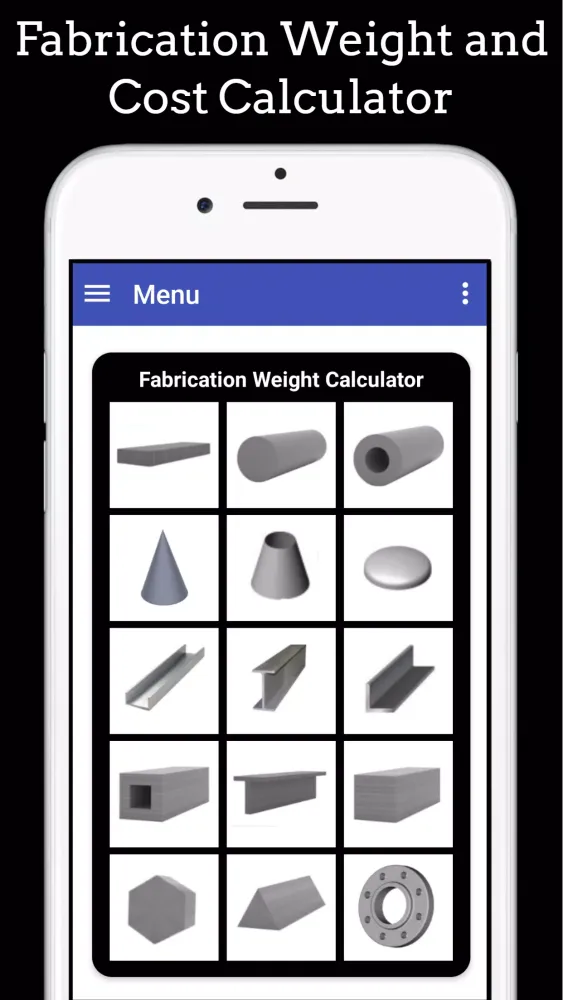

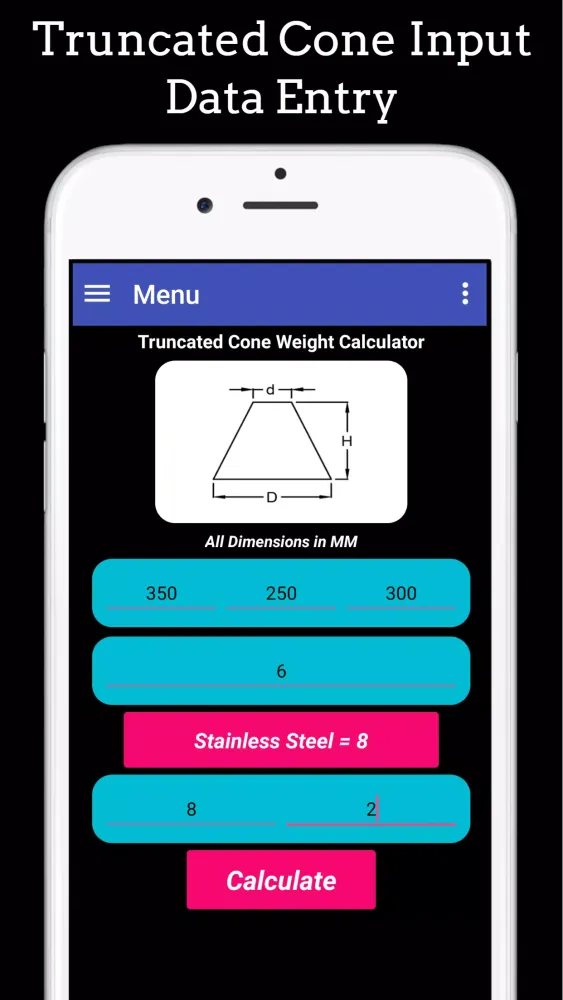

To use this application, start by navigating to the home page, where you'll find options for various weight calculations. Select a calculator from the list (e.g., Plate, Round Bar, Pipe, Cone, etc.). Once selected, you will be directed to an input data page where you need to enter all required dimensions in the metric system (mm).

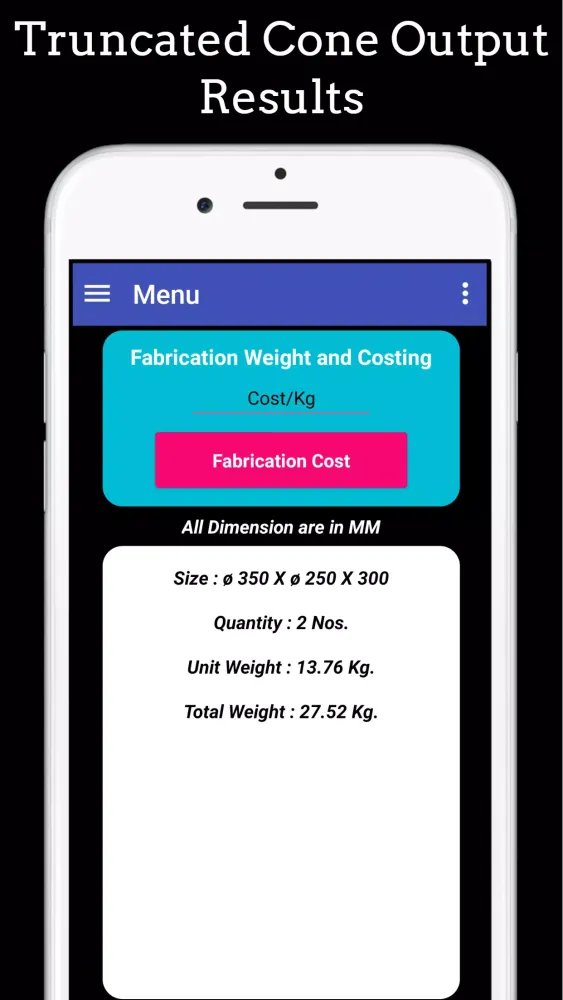

After filling out all the necessary input fields, click the "Calculate" button to obtain the unit weight and total weight. If any data is missing, the app will prompt you to review your input fields. After ensuring all data is correctly entered, click the "Calculate" button again to get the final results.

You can also select the material's specific gravity by clicking the "Material Selection" button. This opens a list of commonly used materials like carbon steel, stainless steel, aluminum, brass, bronze, lead, copper, and cast iron. If your material is not listed, you can manually enter its specific gravity.

Supported Materials

The app supports a wide range of commonly used materials including:

• Carbon Steel or Mild Steel
• Stainless Steel
• Aluminum
• Brass
• Bronze
• Lead
• Copper
• Cast Iron

If your material is not available in the list, you can manually enter its specific gravity.

Applications

This app is particularly useful for professionals involved in the fabrication of process equipment such as pressure vessels, heat exchangers, storage tanks, piping, structures, and other engineering services. It streamlines the calculation process, making it faster and more accurate.

By using this app, you can efficiently manage the weight and cost calculations for your projects, ensuring precision and reliability in your fabrication work.
