Tolerance and fits ISO

Application Description: "Tolerance and Fits ISO"

The "Tolerance and Fits ISO" application is a comprehensive tool designed for professionals working in engineering, manufacturing, and design industries. It focuses on providing accurate data and tools related to tolerances, fits, geometric dimensioning and tolerancing (GD&T), dimensional chain calculations, and more. Whether you're dealing with standard dimensions, complex geometries, or precise angular measurements, this app serves as an essential resource for ensuring quality and precision in your projects.

Reference Information

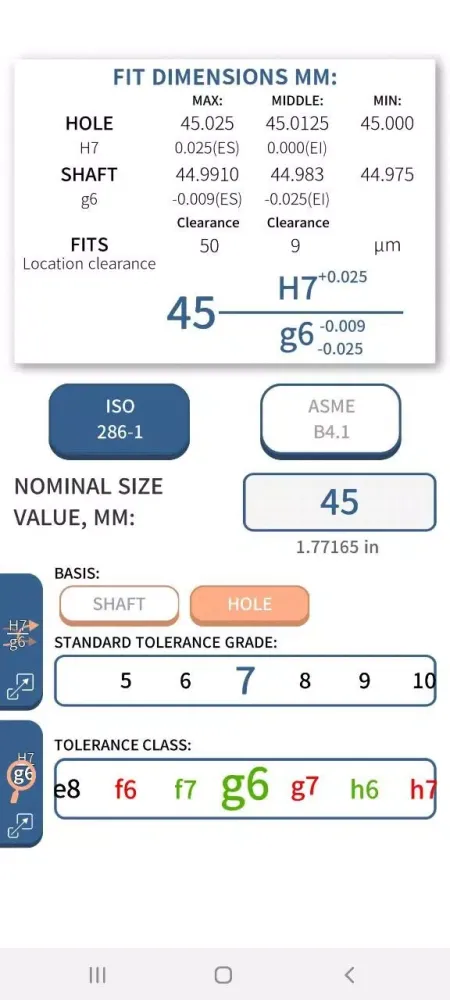

One of the standout features of this application is its extensive reference library. Users can access tolerance values for dimensions ranging from 1 mm to 10,000 mm, aligned with standards such as ГОСТ 25346, ISO-286, and ГОСТ 25348. Additionally, the app supports ASME B 4.1 (ANSI B 4.1) tolerances and fits, making it versatile for both international and domestic applications. A handy feature includes a unit converter that effortlessly switches between millimeters and inches, catering to users worldwide who may prefer different measurement systems.

Tolerance Selection and Fit Recommendations

For those needing to determine appropriate tolerances based on specific requirements, the app offers robust selection tools. Given a specified size and deviation, the application provides five tolerance options, allowing users to choose the most suitable fit for their needs. This functionality also extends to ASME B 4.1 standards, ensuring compatibility across various industrial practices. Furthermore, the fit selection module simplifies the process of choosing mating parts by calculating the resulting gap or tightness of connections, thereby streamlining assembly procedures.

Geometric Tolerances and Angular Measurements

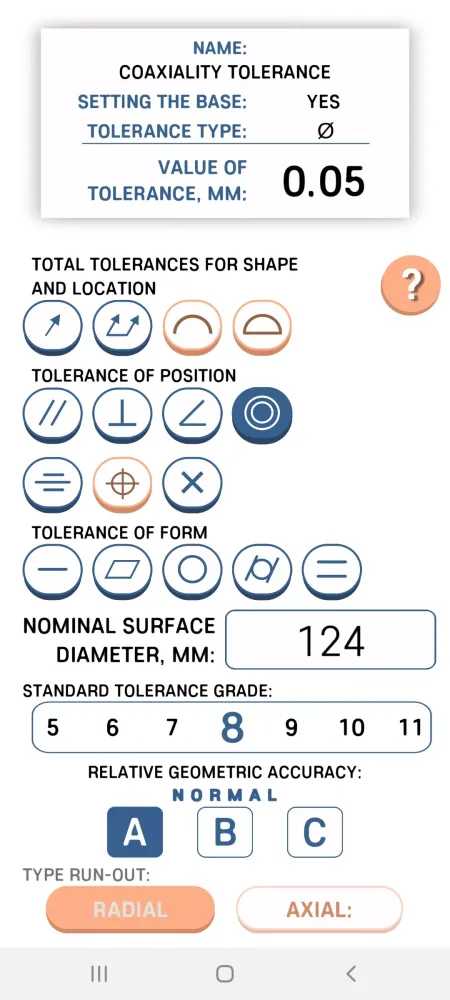

Understanding geometric deviations is crucial for maintaining product integrity, which is why the app includes a dedicated section on shape tolerances. This part aligns with ISO 1101 and Russian ГОСТ 2.308, offering concise descriptions of how parts deviate from ideal forms. In addition, the angle tolerances segment addresses angular dimension deviations while converting taper values into angles using both decimal units and degrees-minutes-seconds formats. With triangle calculations included, determining all sides becomes straightforward, enhancing the utility of the app for geometric analysis tasks.

Dimensional Chain Calculations

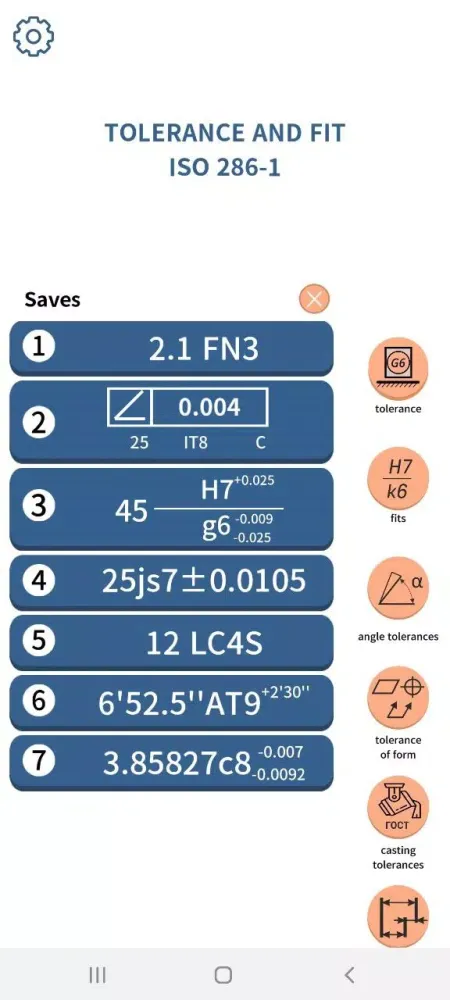

A particularly useful tool within the application is the dimensional calculation feature. This enables quick determination of closing link values through the maximum-minimum method, solving inverse problems efficiently. Every calculation performed is automatically saved, facilitating easy retrieval when needed later. Such capabilities make the app invaluable during prototyping stages where rapid iterations might be necessary.

Casting Tolerances

When dealing with cast components, understanding casting tolerances becomes paramount. The app incorporates these considerations by listing allowable deviations based on selected accuracy classes. These classifications depend upon chosen casting technologies and adhere strictly to Russian ГОСТ regulations. Thus, engineers can rely on this information to ensure compliance while optimizing designs for production processes.

Advertising Policy

Lastly, it’s worth noting that the advertising policy of this application prioritizes user experience. Existing ads do not obstruct navigation nor disrupt workflows, adhering strictly to non-intrusive guidelines. Moreover, any information provided serves purely educational purposes rather than serving as definitive guides for decision-making processes outside professional contexts.

In conclusion, "Tolerance and Fits ISO" stands out as an indispensable companion for anyone involved in mechanical engineering or related fields. Its rich set of functionalities combined with adherence to global standards ensures reliability and accuracy throughout every stage of development cycles. Whether you need basic references or advanced computational support, this app delivers exceptional value at every step!
