Travis CI (iOS)

Use Travis CI for an iOS project — encrypt certificates, sign and package, then auto-publish the app to Pgyer.

This page walks through setting up Travis CI for an iOS project and auto-publishing the signed app to Pgyer.

Travis CI Editions

Travis CI is a continuous integration service for projects hosted on GitHub. It comes in two editions:

Travis CI.org: free for open-source projects on GitHub.
Travis CI.com: paid for private projects.

The demo in this guide uses Travis-ci.org.

Prerequisites

Install the Travis CI command line tool locally.

Make sure your local Ruby is 1.9 or later:
```
ruby -v
```
Install Travis CI (on macOS, upgrade Ruby to the latest version first):
```
gem install travis --no-rdoc --no-ri
```
Check the install:
```
travis -v
```
Sign in to Travis with your GitHub account:
```
travis login
```
Confirm you're logged in:
```
travis accounts
```

Enable Travis CI

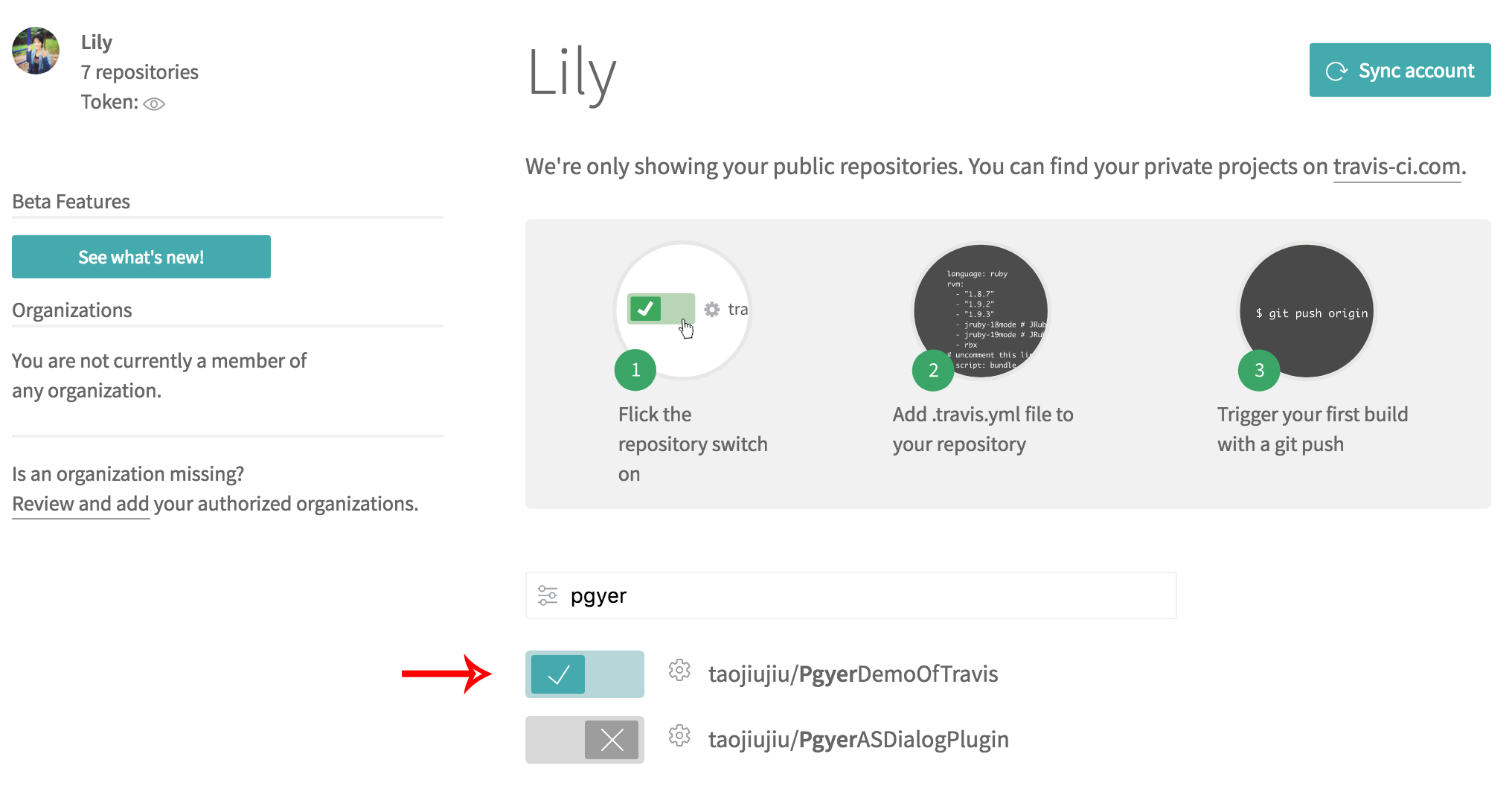

Sign in to Travis with your GitHub account. Travis syncs every open-source project under your account; select the project you want to enable.

Add project

Create the Travis CI Build

Add a .travis.yml at the project root to describe the build.

Travis CI provides basic build and language support; you can customize the build via .travis.yml within its build lifecycle — see the official docs.

Validate the file's syntax with:

travis lint [path to your .travis.yml]

When the syntax is valid, you'll see a confirmation:

Lint result

Basic iOS template:

language: objective-c
osx_image: xcode9

If you only need Travis CI's build feature, these two lines suffice. Push .travis.yml to GitHub and Travis CI will trigger a build automatically; the email tied to your GitHub account gets a build notification. To sign, package, and publish the app to Pgyer, continue reading.

Configure the Project

Two project settings must change to keep the build from failing.

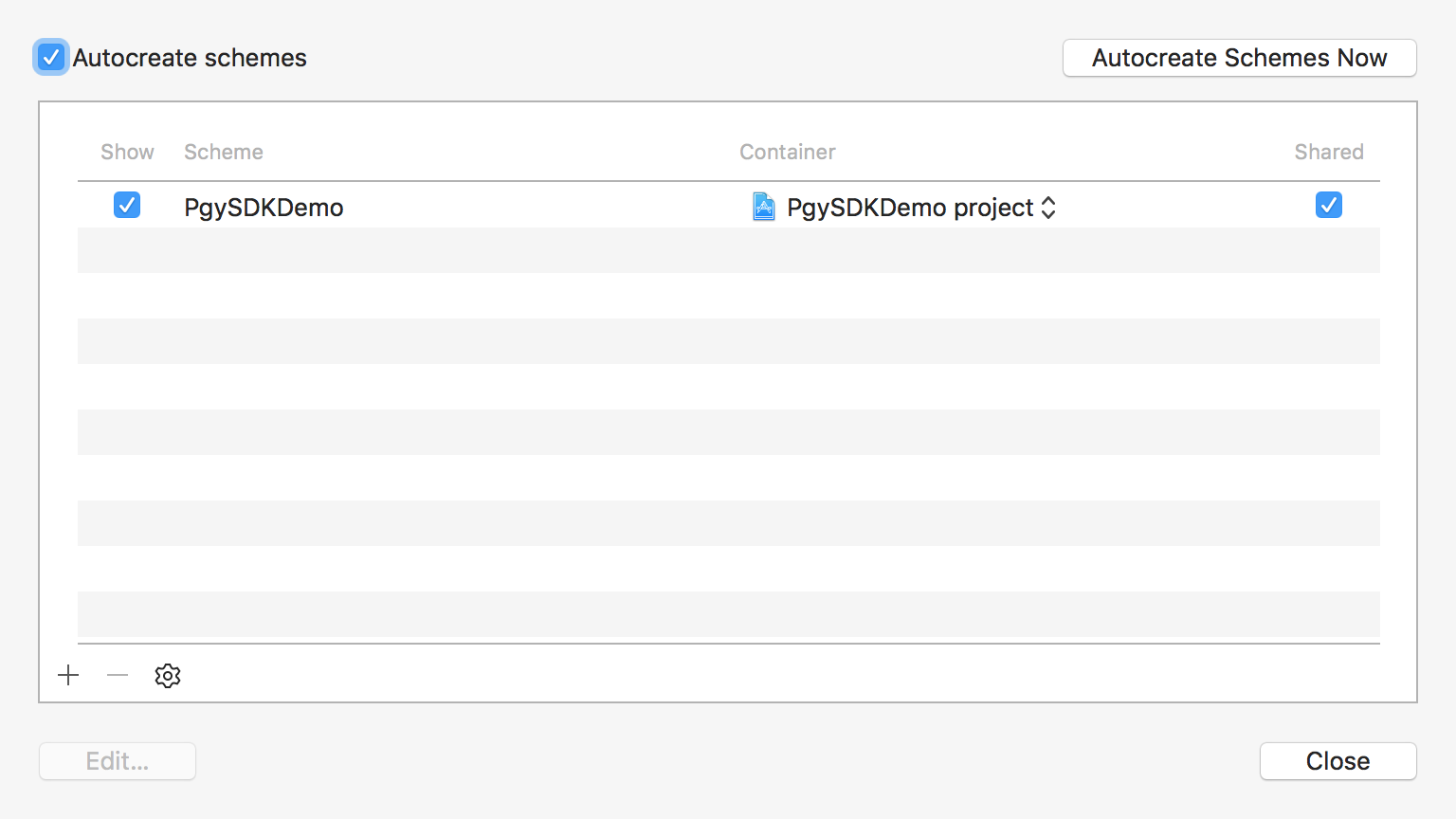

Switch the project scheme's management to shared:

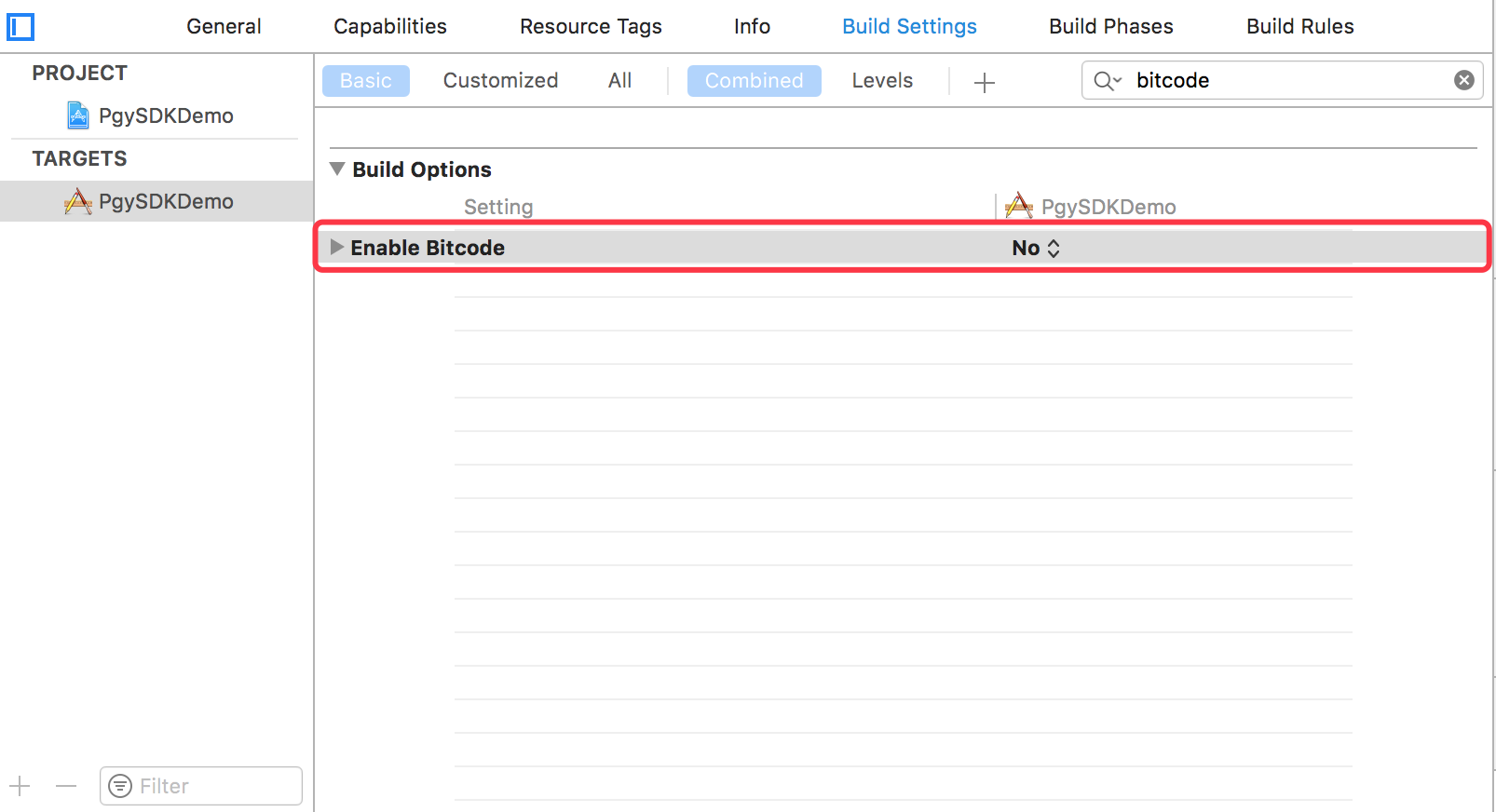

Disable bitcode:

Signing and Publishing

Signing requires a certificate and a provisioning profile.

Apple Worldwide Developer Relations Certificate

Download the certificate from Apple, or export it from Keychain, and save it to travis/certificates/AppleWWDRCA.cer in the project.

Export the Distribution Certificate and Private Key

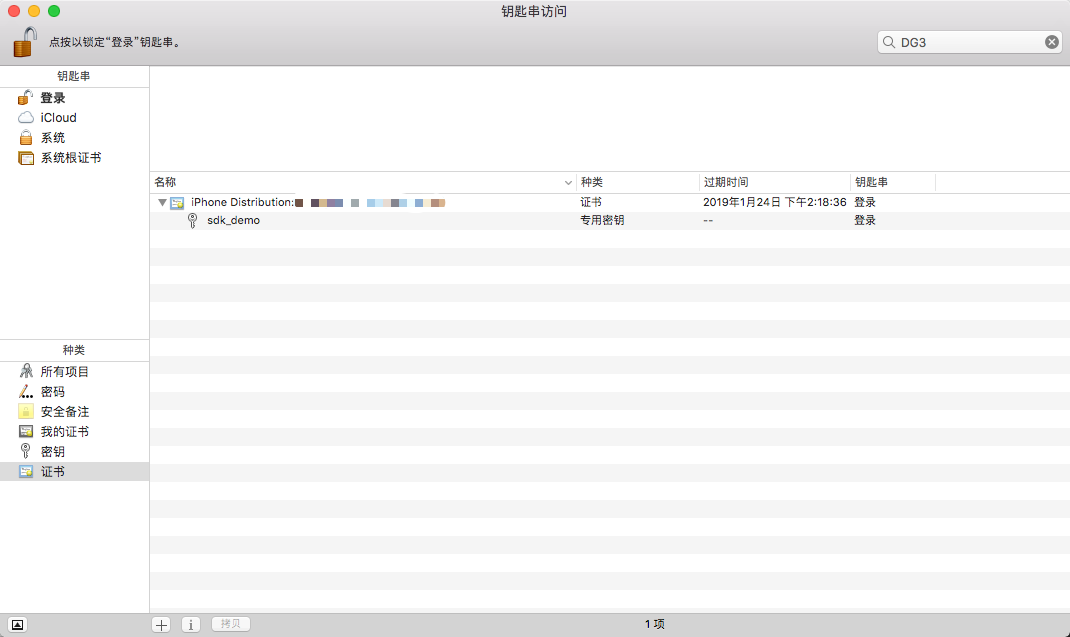

In Keychain Access, select the certificate and export both the certificate and the private key.

Never push unencrypted certificates or provisioning profiles to a public GitHub repo. The next section covers how to encrypt them.

Save the certificate and p12 as travis/certificates/sdk_demo.cer and travis/certificates/sdk_demo.p12. You'll set a password during the p12 export.

Travis CI needs that password to use the p12, but it can't be stored as plain text — use Travis CI's encryption keys feature.

Open Terminal, cd to the folder with .travis.yml, and store the p12 password:

travis encrypt "KEY_PASSWORD=123456" --add

Replace 123456 with the password you set when exporting the p12. After it runs, .travis.yml has a new line:

 - secure: xJz9E1EJdBDAIZcNaz86a7nrJpbdPHS3xiXU5L4Gj4rFR0TcxHsHuu2dcZR/yRJRHg6oum2zuMr0XBsSffMBYFHX5Kw2jb31Ci6uFbOTI/FGBrwdvfhQBL+h/7xe/j3l1bmbmfElYP02fiJvN5VSVyA0    3Iobp7u3vY0TW7yce+po23DmJCTYgnUdfuf4EBO3gpgbOTPdmIxqyhqqw5Ndwmvxpq9BqneqEc3pmNCC1FC6H4RmgjkWnMln5ffWIxNN+nwgPzSDqHDMUnQaYtVUU/CHLQCmNCgQmkrG/OWYvlo4RqpEX6VZv5BUa6gD    7d4lgcfXHONkmLKNbiWBGDRbbBQNNSbubTtGlyGtzCHwEe4KvHoM4n0yDZqtd9edgrxlOSuBgNlQK+/3C6BhZZi2rWNlnqBU7F/ZSmjBONWgRuFZJ2zJByHWLoTTOHvYbFdk4CTmT5qMQPQ7favMu1L9TUBpbX4qBX4D    iXpEKNODtwOvdYjlfiZ+US6i637JeZF8OK9bBtUf4oKjvl1Oz5ly56snTBknF3V+if6VoHlG1Cfroqhy2F7ahS2K3Aq0u4O2gMIVqTRd1juBLo6QkzV/F+go4KvYDwOFpAX05AYrJNOQgAHae5a8Px2YIct1QcRTL++r    Enqx1QzQWXIEXpezm8m1pR8TcB8d2WbLGtwTd/8=

This line is the environment variable KEY_PASSWORD that the command injected. Later build steps reference KEY_PASSWORD to get the p12 password.

Provisioning Profile

Signing also needs a .mobileprovision provisioning profile. Create and download it on Apple's developer site (Provisioning Profiles → Distribution → Add → Ad Hoc or In House) and save it to travis/certificates/sdk_demo.mobileprovision.

Record the profile name, app name, and developer name in .travis.yml:

env:
  global:
  - APPNAME="PgySDKDemo"
  - 'DEVELOPER_NAME="iPhone Distribution: your developer name (your developer code)"'
  - PROFILE_NAME="sdk_demo"

Encrypt the Certificate and Profile

For public GitHub repos, encrypt the certificate, provisioning profile, and private key, and tell Travis CI how to decrypt them.

Encrypt

Travis decrypts one file at a time, so bundle the certificate and profile into a tarball first:

tar cvf certificates.tar sdk_demo.cer sdk_demo.p12 sdk_demo.mobileprovision

That produces certificates.tar. Place it at the project root and run:

travis encrypt-file certificates.tar -a

The -a flag auto-adds the decryption command to .travis.yml. You'll get a certificates.tar.enc. Now you can delete the unencrypted certificates.tar and the sdk_demo.cer, sdk_demo.p12, sdk_demo.mobileprovision files under travis/certificates.

Decrypt

After encryption, .travis.yml gains a line:

- openssl aes-256-cbc -K $encrypted_2838d02a56a6_key -iv $encrypted_2838d02a56a6_iv
  -in certificates.tar.enc -out certificates.tar -d

That line decrypts the bundle. Since you get back a tarball, also untar it. Add this to before_install:

- tar xvf certificates.tar -C ./travis/certificates

Import Into Keychain

To sign, import the certificate into the Travis CI runner's keychain. Create add-key.sh under scripts:

#!/bin/sh
# Create a custom keychain
security create-keychain -p travis ios-build.keychain
security default-keychain -d user -s ios-build.keychain
security unlock-keychain -p travis ios-build.keychain
security set-keychain-settings -t 3600 -l ~/Library/Keychains/ios-build.keychain

security import ./scripts/travis/AppleWWDRCA.cer -k ~/Library/Keychains/ios-build.keychain -T /usr/bin/codesign
security import ./scripts/travis/sdk_demo.cer -k ~/Library/Keychains/ios-build.keychain -T /usr/bin/codesign
security import ./scripts/certs/sdk_demo.p12 -k ~/Library/Keychains/ios-build.keychain -P $KEY_PASSWORD -A

echo "list keychains: "
security list-keychains
echo " ****** "

echo "find indentities keychains: "
security find-identity -p codesigning  ~/Library/Keychains/ios-build.keychain
echo " ****** "

mkdir -p ~/Library/MobileDevice/Provisioning\ Profiles
cp "./scripts/profile/sdk_demo.mobileprovision" ~/Library/MobileDevice/Provisioning\ Profiles/

add-key.sh creates a temporary ios-build keychain that holds the certificate info; $KEY_PASSWORD references the p12 password. The temporary keychain needs to be removed after signing.

Make the script executable:

before_install:
 - chmod +x scripts/travis/add-key.sh

Build

xctool, the go-to build tool before Xcode 8.2, is no longer usable. The current option is xcodebuild — archive, then sign:

#!/bin/sh
xcrun xcodebuild -project PgySDKDemo.xcodeproj -scheme PgySDKDemo \
  -archivePath PgySDKDemo.xcarchive archive

xcrun xcodebuild -exportArchive -archivePath PgySDKDemo.xcarchive \
  -exportPath ./build -exportOptionsPlist ExportOptions.plist

The easiest way to get -exportOptionsPlist is to export an ipa from Xcode once — the export folder contains ExportOptions.plist. Copy it to the project root.

After the build script runs, the signed ipa lives under ./build.

Upload to Pgyer

Pgyer provides a ready-made shell script for uploading ipa files. Fetch it in before_install, mark it executable, and invoke it after the build:

- wget -c https://raw.githubusercontent.com/Pgyer/TravisFile/master/pgyer_upload.sh
  -O pgyer_upload.sh

#!/bin/sh
./pgyer_upload.sh "./build/$APPNAME.ipa" $PGYER_APIKEY

Uploads need a Pgyer API_KEY — find it on the API info page. Don't store it in plain text; use the same approach as the p12 password. From the project root:

travis encrypt "PGYER_APIKEY=YOUR_API_KEY" --add

Clean Up the Keychain

Once everything is done, remove the imported keychain. Add remove-key.sh under /scripts/travis:

#!/bin/sh
security delete-keychain ios-build.keychain
rm -f ~/Library/MobileDevice/Provisioning\ Profiles/$PROFILE_NAME.mobileprovision
rm -f ~/Library/MobileDevice/Provisioning\ Profiles/team.mobileprovision

After that, every push to GitHub triggers a Travis CI build that signs the app and publishes it to Pgyer.

Complete Example

A full .travis.yml:

language: objective-c
osx_image: xcode9.2
env:
  global:
  - APPNAME=PgySDKDemo
  - PROFILE_NAME=sdk_demo
  - 'DEVELOPER_NAME="iPhone Distribution: shengtao lei (DG37YK9PRK)"'
  - secure: iL2KhNdYKzWLTtvaXmmQ3/ci66b0Z5c8VCTmpaoMIotdtwyTOgMnpzH+Vyrof3QBH/nV2oF6puT/b5Y6S6lrCY5b4nZSfhy8xL6FEPDboVzpq2qIAS4gn6qCGUkIkAxpcnKG9sbcxDsI5aLVOqxoevuHKB2Rkw925TWrg6+bfagtWQzVvkByIHT2jm2+7bkmNUx7UiIggNYN+H2ACpfdf/d9g7lC7w2hLb6hO0Mt5pK5eGbzlh8kn/1CnX7jSWw3SyEABEJ3CQOZX5x/yNP4oIJLgdEGW3sy1ErAi2uO+i89VDu1SaRcDLbNuAmlxb95dLVBVU7uWILdWTh6+o6FVL2Eoj1YPrNBJdcRykTvaCSR1eXPs6uCoq9tcWz0zinamSBzemOjdK+G+lOC6IpT9lTimt5Ln0lGQoVYERXnvJMEhR/2rFLvsTIqd+Wt8Agfqr9EeU0ah8agWiTIE6EuA0xdTyC0EyKVYKzXBy4wI6R2fknfn6uHyeFeIN9zpWY8tcwz8pRLDD+xiyoHgSybS1DK+Xr21llOopXkC/aacnoeslciNN28In9QRDwsiDUSlAb6dQ3pRCS/cDoRJBm759xcZ7kdMnwVAcSX7aZ9p8HT0uGvyuJdYNDr4vp0r98RtPI/7JonPXqXuWzsAzZdq5AAzchwNFAbTCrASw6qqHY=
  - secure: KuD0JYZqJEtezCBkJ6Zkfw7I+0VGiv6E7GOa34KUzYsJWpLnzPYB08+NsYZYMh6Yjc8pkC8+MixgXLOHupWm5v3iRthWqD/tdmuF5bdQqIdrWkmQSl0cK9M+rMgc+vaPajguC0/yf+BoPWL6CJXouLLzj3D6IXUwZEVYhmPB4nBv/YHVk/FNwNS4aqP9SSp98VQoYrAGAvUSY3jm5L1qSNwCjPMBcX4QnlbX5mjl0mEf0pEbJ3ZZAz9AzpALfCYR4pPsS7/eSHxVAPNboD5JVQAK6NhaFCTUw0/UlGHW9m9eY3AezMpZo1M8kHXZXsC0BWoP8R4H6WYTybILxz6Aramb8N12R+ntLfAawnFnG5kV4mtUHFY7BqNu+tyBkba4axkclaY90fETekHUcCIqTlVmMjlKq6dzWkq4hGmDtEajajZHqMPBUMy5o8n8lXKww/ZkpvgEhrJjbxbmFcoP4oS2u9Vxi/Q18t+mRoQhGfan2cVQXdpQhk0S8scisVVnUSFHSglt79KjgKwNuVKtIpW89bG8HHQaqIgPFycvIbDRxSM6Xd+I7AIzz25XFdE/ao03ULrnDaIZLbgUa+IGjDknkRJmG9hFQKO2grkZ/JqNXQDSMEIXZrH46CocD1+j39k6wvYler5fdcIStf+wAW4hXmiO0en2hl2+qEFtJds=
  - secure: YecGZLdjxnbJuIyJOywDan2lJ4sToYx2iq8ficMEzODXUxEGHRL6s6XFOPltsm6CnyUZKfT9bzAEWuGWnnES8fcPvMUAKvyNhcRW/D9JtMm/fboIdSjb2Ht8f/dY1IfgB241pMU7SkPifVIL08yxeMYZfwgFxbDQn60aXCiUKWuEcqMgxX2yLX9uHR+T/xuY6E+NX6UEB/6imx3rQ047nVfefMgh9YMGGl0ZH/N9beZgMrwlZn1lAfKMrkbJ3vw1go2RzxnDwa/Noy+6eKfbC8R4RgCvwQ6oXBEXG1IUjHbiNhR5pXajz/5jbum9T64fHUrx8e2aPKrYRWWjooQ5Q7+AER7PnAhTgFymHhDwUm7wEXoMuh5Ltp7jCNZiaKDxUoONw4Hz+oEXKbm4nYJCMFczjW4bQKH0gqNytPhl/y/08u0fuQxTP3wu6Zi0q0qo6e3eqCTGv3Q9YzEm7JWAb6RSO09aRRVvz7HwdZFwbHy07T9//YMUsX/chhw7fziso1wkutWOsVCfBVjMGO6Nve/B8xdCVV4sqiex/Wk3c/cNHB7dTVe9SC6nelrkuyvEqKtxk87/IDBo0sAHxounw9phwtXg+RM8fN+rvBqd9rY4H8hrRaZKdFqikMt3yexoFKcrAqbQuHEDVlz2dxDxZhgjOPyVaejsOHI2jt1bB58=
before_install:
- openssl aes-256-cbc -K $encrypted_2838d02a56a6_key -iv $encrypted_2838d02a56a6_iv
  -in certificates.tar.enc -out certificates.tar -d
- cd $TRAVIS_BUILD_DIR
- wget -c https://raw.githubusercontent.com/Pgyer/TravisFile/master/pgyer_upload.sh
  -O pgyer_upload.sh
- tar xvf certificates.tar -C ./travis/certificates
- chmod +x pgyer_upload.sh
- chmod +x travis/scripts/add-key.sh
- chmod +x travis/scripts/build.sh
- chmod +x travis/scripts/upload.sh
- chmod +x travis/scripts/remove-key.sh
before_script:
- "./travis/scripts/add-key.sh"
script:
- "./travis/scripts/build.sh"
after_success:
- "./travis/scripts/upload.sh"
after_script:
- "./travis/scripts/remove-key.sh"

The matching demo project is on GitHub.
